Rear window shelf / sun blind electr. for BMW 5 Series E39 523i (2000)

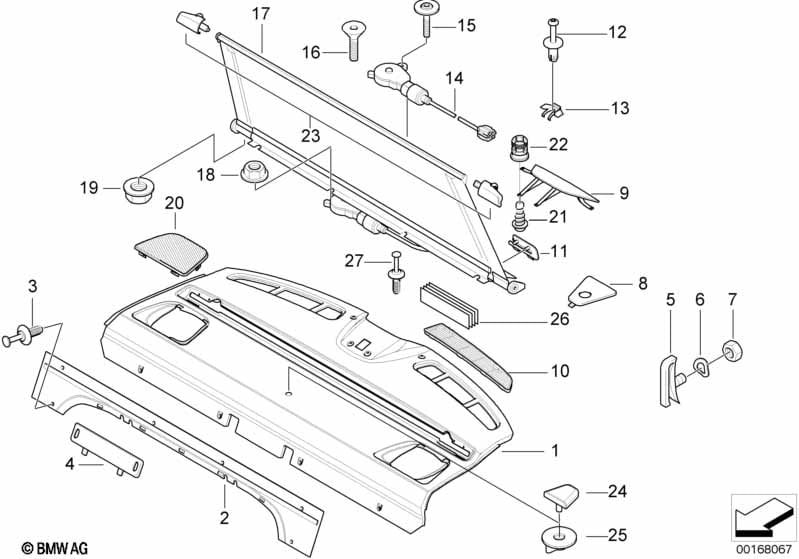

This Rear window shelf / sun blind electr. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Storage tray, retracting sun blind | SCHWARZ | 1 | 51468208251 | $175.40 | Shop at ECS Tuning | ||||
| 01 | Storage tray, retracting sun blind | GRAU | 1 | 51468208252 | $175.40 | Shop at ECS Tuning | ||||
| 01 | Storage tray, retracting sun blind | DUNKELGRUEN | 1 | 51468208255 | $256.68 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | SCHWARZ | 1 | 51468208262 | $175.40 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | GRAU | 1 | 51468208265 | $175.40 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | MARINEBLAU | 1 | 51468208267 | $184.14 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | SANDBEIGE | 1 | 51468208269 | $175.40 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | DUNKELGRUEN | 1 | 51468208272 | $184.14 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 02 | Rear cross member cover | 1 | 51468174892 | $42.60 | +core | Shop at ECS Tuning | ||||
| 04 | Head rest cover | SCHWARZ | 2 | 51468202667 | $4.03 | ENDED | Shop at ECS Tuning | |||
| 04 | Head rest cover | GRAU | 2 | 51468202668 | $4.03 | Shop at ECS Tuning | ||||
| 04 | Head rest cover | MARINEBLAU | 2 | 51468202669 | $3.52 | ENDED | Shop at ECS Tuning | |||
| 04 | Head rest cover | SANDBEIGE | 2 | 51468202670 | $4.03 | Shop at ECS Tuning | ||||
| 04 | Head rest cover | DUNKELGRUEN | 2 | 51468202671 | $3.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Through-loading facility |
=Yes |
|||||||||
| 06 | Wave washer | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 08 | Cover f child seat fixing | SCHWARZ | 1 | 51468176392 | $11.46 | Shop at ECS Tuning | ||||
| 08 | Cover f child seat fixing | GRAU | 1 | 51468227689 | $11.46 | Shop at ECS Tuning | ||||
| 08 | Cover f child seat fixing | SANDBEIGE | 1 | 51468227690 | $11.46 | Shop at ECS Tuning | ||||
| 09 | Cover, storage compartment bottom | SCHWARZ | 1 | 51468204619 | $28.86 | Shop at ECS Tuning | ||||
| 10 | Left package shelf vent louver | SCHWARZ | 1 | 51468204317 | $16.51 | Shop at ECS Tuning | ||||
| 10 | Right package shelf ventilation grille | GRAU | 1 | 51468204322 | $16.51 | Shop at ECS Tuning | ||||
| 10 | Right package shelf ventilation grille | MARINEBLAU | 1 | 51468204350 | $16.85 | ENDED | Shop at ECS Tuning | |||
| 10 | Left package shelf vent louver | GRAU | 1 | 51468204353 | $16.51 | Shop at ECS Tuning | ||||
| 10 | Left package shelf vent louver | MARINEBLAU | 1 | 51468204355 | $16.85 | ENDED | Shop at ECS Tuning | |||
| 10 | Right package shelf ventilation grille | SANDBEIGE | 1 | 51468204356 | $14.94 | Shop at ECS Tuning | ||||
| 10 | Left package shelf vent louver | SANDBEIGE | 1 | 51468204359 | $16.51 | Shop at ECS Tuning | ||||
| 10 | Right package shelf ventilation grille | DUNKELGRUEN | 1 | 51468204360 | $16.85 | ENDED | Shop at ECS Tuning | |||
| 10 | Left package shelf vent louver | DUNKELGRUEN | 1 | 51468204361 | $16.51 | ENDED | Shop at ECS Tuning | |||
| 10 | Right package shelf ventilation grille | SCHWARZ | 1 | 51468204362 | $16.51 | Shop at ECS Tuning | ||||
| 11 | Left sun blind cover | SCHWARZ | 1 | 51168184157 | $4.53 | Shop at ECS Tuning | ||||
| 11 | Right sun blind cover | SCHWARZ | 1 | 51168184158 | $4.53 | Shop at ECS Tuning | ||||
| 12 | Expanding rivet | D=7,5MM | 4 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 13 | Support for package shelf | SCHWARZ | 4 | 51468174889 | $2.43 | Shop at ECS Tuning | ||||
| 14 | Drive sun blind | 1 | 67656916270 | $201.22 | Shop at ECS Tuning | |||||
| 15 | Saucer-head screw | 3 | 51168172398 | $0.22 | Shop at ECS Tuning | |||||
| 16 | Countersunk head screw | M4X10 | 1 | 07/2008 | 07119900722 | $3.16 | ENDED | Shop at ECS Tuning | ||
| 16 | Countersunk head screw | M4X10 | 1 | 07119904433 | Shop at ECS Tuning | |||||
| 17 | Electric sun blind | 1 | 51468176169 | $583.05 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hex nut with plate | M6 ZNT | 4 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Hex nut with plate | M6 | 3 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 20 | Cover Loudspeaker | GRAU | 2 | 51468230769 | $17.00 | Shop at ECS Tuning | ||||
| 20 | Cover Loudspeaker | SANDBEIGE | 2 | 51468230770 | $17.00 | Shop at ECS Tuning | ||||
| 20 | Cover Loudspeaker | MARINEBLAU | 2 | 51468230771 | $17.00 | ENDED | Shop at ECS Tuning | |||
| 20 | Cover Loudspeaker | DUNKELGRUEN | 2 | 51468230772 | $16.74 | ENDED | Shop at ECS Tuning | |||
| 20 | Cover Loudspeaker | SCHWARZ | 2 | 10/1996 | 51468230768 | $17.00 | Shop at ECS Tuning | |||
| 21 | Hex bolt | M4X10 | 4 | 61131373333 | $0.20 | Shop at ECS Tuning | ||||
| 22 | Threaded plug | M4 | 4 | 51468215809 | $1.00 | Shop at ECS Tuning | ||||
| 23 | Set of end caps | 4 | 51168215241 | $17.96 | ENDED | Shop at ECS Tuning | ||||
| 24 | Cap, lock tongue | SCHWARZ | 1 | 51468208863 | $1.10 | Shop at ECS Tuning | ||||
| 25 | Wing nut | M8 | 1 | 51461973909 | $0.50 | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear or Through-loading system |
S415A=No S465A=No |
|||||||||
| 26 | Base | L=100MM | 4 | 09/1998 | 16111181918 | $1.65 | Shop at ECS Tuning | |||
| 27 | Expanding rivet | 4 | 09/1998 | 51111964186 | $0.37 | Shop at ECS Tuning | ||||
