Heat insulation for BMW 5 Series E39 528i (2000)

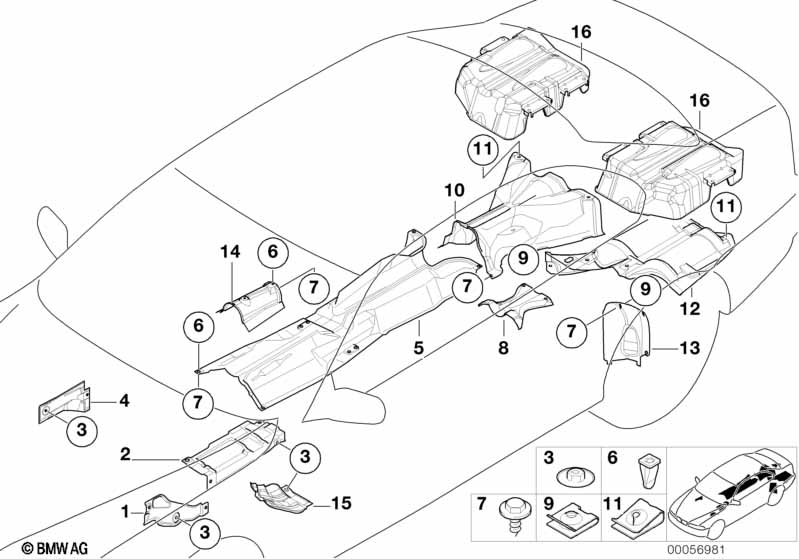

This Heat insulation technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Heat resist.plate right engine support | 1 | 09/1998 | 51488254297 | $45.47 | Shop at ECS Tuning | ||||
| 15 | Heat resistant plate, front wall right | 1 | 09/1998 | 51488240542 | $16.78 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Heat insulation?
- This technical diagram illustrates the Heat insulation within the Vehicle trim group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Heat resist.plate right engine support (Part #51488254297).
- Which models use the hardware listed in this Heat insulation?
- The hardware and components featured in the Heat insulation are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Heat resist.plate right engine support (51488254297) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heat insulation assembly?
- Each item in the Heat insulation corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Heat resist.plate right engine support by locating its position on the schematic, which then links to the official BMW part number 51488254297 for the Vehicle trim section.
