Body parts/floor panel/engine compartm. for BMW 5 Series E39 528i (2000)

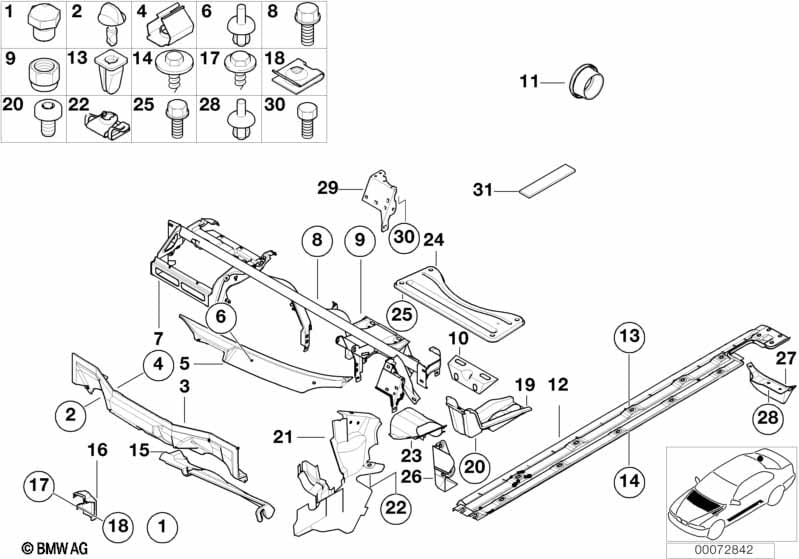

This Body parts/floor panel/engine compartm. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood stopper | 2 | 51718209307 | $1.02 | Shop at ECS Tuning | |||||
| 02 | Lock | 4 | 51718204904 | $0.65 | Shop at ECS Tuning | |||||
| 03 | Centre engine compartment closing panel | 1 | 09/1998 | 51718158237 | $37.17 | Shop at ECS Tuning | ||||
| 04 | Clamp | 4 | 51718204921 | $0.58 | Shop at ECS Tuning | |||||
| 05 | Interior hood cover | 1 | 51718205291 | $3.61 | Shop at ECS Tuning | |||||
| 06 | Expanding rivet | 3 | 51118108145 | $0.30 | Shop at ECS Tuning | |||||
| 07 | Steering column support | 1 | 09/1999 | 51718236994 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bracket, control unit | 1 | 09/1999 | 51718364410 | ENDED | Shop at ECS Tuning | ||||
| -- | Fillister head screw | M5X10 | 1 | 09/1999 | 07149149399 | $0.25 | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M8X16 | X | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | M8-ZNS3 | X | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 10 | Steering column support | 1 | 51718196433 | $2.17 | ENDED | Shop at ECS Tuning | ||||
| 11 | Filler tube gasket | 1 | 11/1995 | 51718174883 | $5.71 | Shop at ECS Tuning | ||||
| 12 | Left lower door sill cover | 1 | 51718201495 | $42.43 | +core | Shop at ECS Tuning | ||||
| 12 | Right lower door sill cover | 1 | 51718201496 | $42.43 | Shop at ECS Tuning | |||||
| 13 | Expanding nut | ST 4.8 WEISS | X | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 14 | Hex head screw | M4.8X16MM | X | 07119916817 | $0.29 | ENDED | Shop at ECS Tuning | |||
| 14 | Hex head screw | ST 4,8X18 SW8 | X | 07147129161 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Left engine compartment closing panel | 1 | 51718174737 | $30.29 | Shop at ECS Tuning | |||||
| 24 | Connecting support | 1 | 51718212199 | $12.78 | Shop at ECS Tuning | |||||
| 25 | Hex bolt with washer | M8X16-Z3-2 | 4 | 07119915071 | $0.47 | Shop at ECS Tuning | ||||
| 27 | Left rear door sill cover deflector lip | 1 | 51718222167 | $7.77 | Shop at ECS Tuning | |||||
| 27 | Right rear door sill cover deflector lip | 1 | 51718222168 | $7.77 | Shop at ECS Tuning | |||||
| 28 | Expanding rivet | 2 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 29 | Bracket, control unit | 1 | 51718364410 | ENDED | Shop at ECS Tuning | |||||
| 30 | Fillister head screw | M5X10 | 3 | 07149149399 | $0.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
