Fine wood trim nutwood for BMW 5 Series E39 540iP (2000)

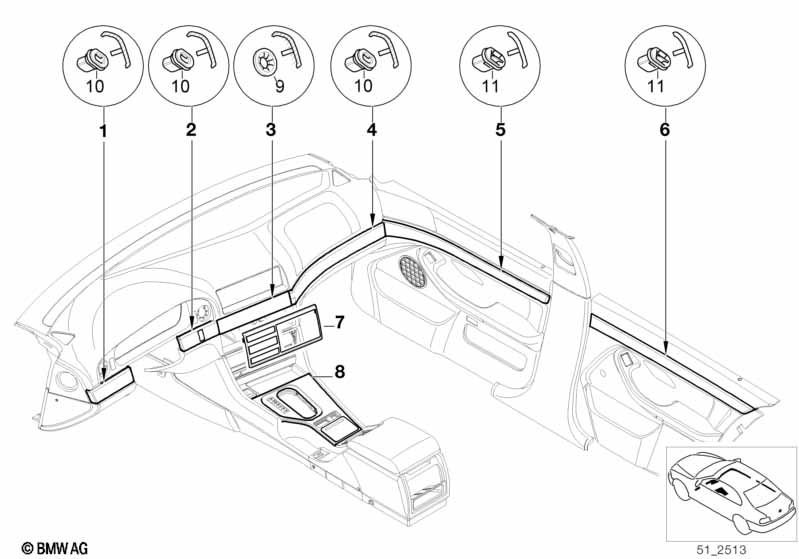

This Fine wood trim nutwood technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Standard wood trim/special option SA 438 | |||||||||
| 01 | Wooden cover f outer left dashboard | NUSSBAUM | 1 | 51458211427 | $118.69 | Shop at ECS Tuning | ||||
| 02 | Wooden strip,instrument panel cent. left | NUSSBAUM | 1 | 51458211429 | $118.69 | Shop at ECS Tuning | ||||
| For vehicles with Cruise control |
=Yes |
|||||||||
| 02 | Wooden strip,instrument panel cent. left | NUSSBAUM | 1 | 51458211431 | $118.69 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Tyre pressure control (TPC) |
S265A=Yes |
|||||||||
| 02 | Wooden strip,instrument panel cent. left | NUSSBAUM | 1 | 51458211431 | $118.69 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Wooden cover f radio flap | NUSSBAUM | 1 | 51458211433 | $93.54 | ENDED | Shop at ECS Tuning | |||
| 04 | Wooden strip,instrument panel right | NUSSBAUM | 1 | 51458211434 | $174.88 | Shop at ECS Tuning | ||||
| 05 | Wooden strip, door front left | NUSSBAUM | 1 | 51418200711 | $149.53 | Shop at ECS Tuning | ||||
| 05 | Wooden strip, door front right | NUSSBAUM | 1 | 51418200712 | $149.53 | Shop at ECS Tuning | ||||
| 06 | Wooden strip, door rear left | NUSSBAUM | 1 | 51428200713 | $149.53 | Shop at ECS Tuning | ||||
| 06 | Wooden strip, door rear right | NUSSBAUM | 1 | 51428200714 | $149.53 | Shop at ECS Tuning | ||||
| 08 | Base of center console | NUSSBAUM | 1 | 51168209855 | $246.33 | ENDED | Shop at ECS Tuning | |||
| 09 | Spring nut | 3 | 51458220836 | $0.18 | Shop at ECS Tuning | |||||
| 10 | Insert | X | 03/2000 | 51457000912 | $1.23 | Shop at ECS Tuning | ||||
| 11 | Insert | X | 51417001629 | $1.23 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
