Brushed aluminium decorat.cover strips for BMW 5 Series E39 528i (2000)

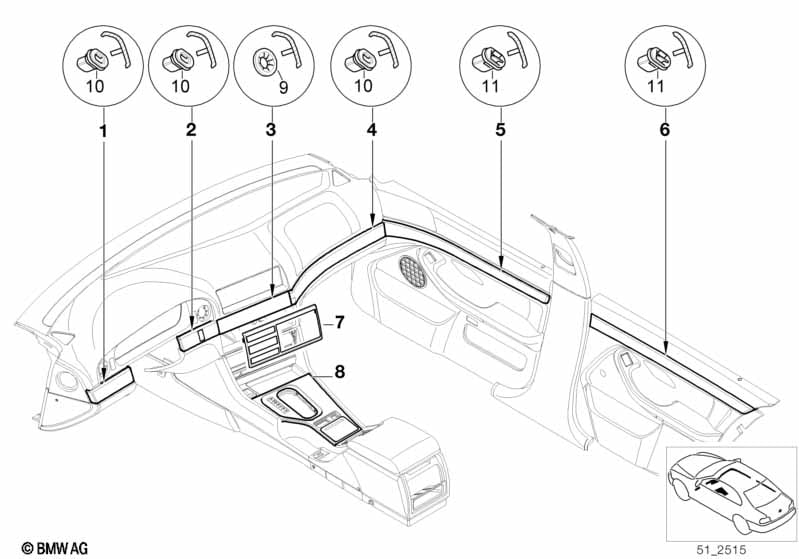

This Brushed aluminium decorat.cover strips technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Standard/special option SA 439 | |||||||||
| 01 | Left finisher | 1 | 51458157451 | $42.13 | +core | Shop at ECS Tuning | ||||
| 02 | Left centre finisher | 1 | 51458157453 | $39.06 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Right centre finisher | 1 | 51458207864 | $39.06 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Cruise control |
=Yes |
|||||||||
| 02 | Left centre finisher | 1 | 51458207861 | $42.13 | +core | Shop at ECS Tuning | ||||
| 03 | Centre finisher | 1 | 51458157454 | $42.13 | +core | Shop at ECS Tuning | ||||
| 04 | Right finisher | 1 | 51458157456 | $84.09 | +core | Shop at ECS Tuning | ||||
| 05 | Decorative strip for door, front, left | 1 | 51418185809 | $103.30 | +core | Shop at ECS Tuning | ||||
| 05 | Decorative strip for door, front, right | 1 | 51418185810 | $103.30 | +core | Shop at ECS Tuning | ||||
| 06 | Decorative strip for door, rear, left | 1 | 51428196589 | $103.30 | +core | Shop at ECS Tuning | ||||
| 06 | Decorative strip for door, rear, right | 1 | 51428196590 | $103.30 | +core | Shop at ECS Tuning | ||||
| 08 | Center console insert, centre | STAHLGRAU | 1 | 51168196986 | $232.56 | Shop at ECS Tuning | ||||
| 09 | Spring nut | 3 | 51458220836 | $0.18 | Shop at ECS Tuning | |||||
| 10 | Insert | X | 03/2000 | 51457000912 | $1.23 | Shop at ECS Tuning | ||||
| 11 | Insert | X | 51417001629 | $1.23 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
