Door window lifting mechanism front for BMW 7 Series G12 LCI 730LdX (2020)

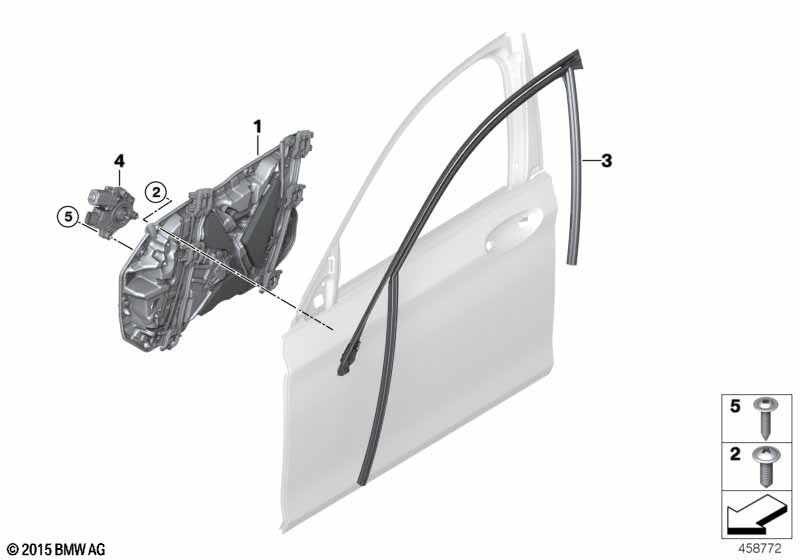

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| without drive unit | ||||||||||
| 01 | Carrier, door front left | 1 | 51337422879 | Shop at ECS Tuning | ||||||
| 01 | Carrier, door front right | 1 | 51337422880 | Shop at ECS Tuning | ||||||
| 02 | Fillister head screw | M6 | 12 | 07147465017 | Shop at ECS Tuning | |||||
| 03 | Left window guide | 1 | 51339481271 | Shop at ECS Tuning | ||||||
| 03 | Right window guide | 1 | 51339481272 | Shop at ECS Tuning | ||||||
| 04 | Drive for window lifter, front left | 1 | 61355A53095 | Shop at ECS Tuning | ||||||
| 04 | Drive for window lifter, front right | 1 | 61355A53096 | Shop at ECS Tuning | ||||||
| 04 | Drive power window front | 1 | 61355A5C893 | Shop at ECS Tuning | ||||||
| 04 | Drive power window front | 1 | 61355A5C894 | Shop at ECS Tuning | ||||||
| 04 | Drive for window lifter, front left | 1 | 11/2019 | 03/2022 | 61359463855 | Shop at ECS Tuning | ||||
| 04 | Drive for window lifter, front right | 1 | 11/2019 | 03/2022 | 61359463856 | ENDED | Shop at ECS Tuning | |||
| 05 | Torx-bolt for plastic material | ISA L=22MM | 6 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
