Equipment of high-polished nutwood for BMW 7 Series E38 740i (1996)

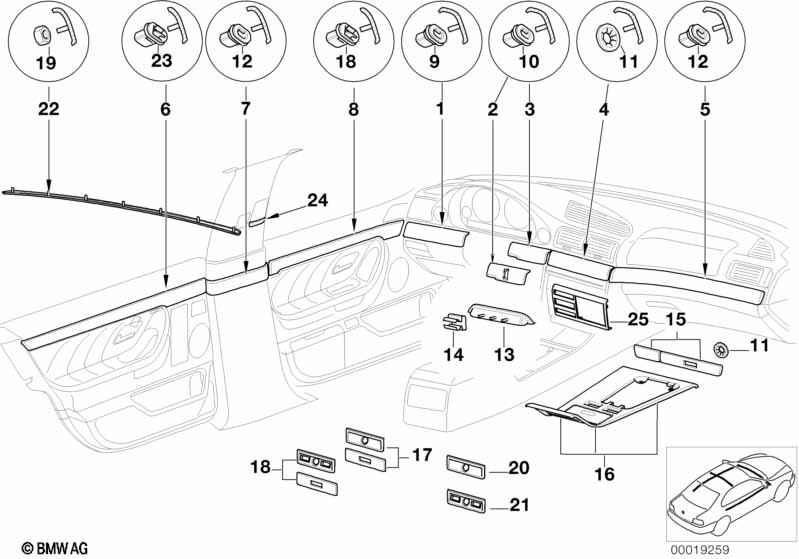

This Equipment of high-polished nutwood technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Standard wood trim/special option SA 438 | |||||||||
| 01 | Wooden strip,instrument panel ext. right | NUSSBAUM | 1 | 51458150248 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wooden strip,instrument panel cent. rght | NUSSBAUM | 1 | 09/1997 | 51458150246 | ENDED | Shop at ECS Tuning | |||
| 04 | Wooden cover f radio flap | NUSSBAUM | 1 | 51458163936 | $180.98 | ENDED | Shop at ECS Tuning | |||
| 05 | Wooden strip,instrument panel left | NUSSBAUM | 1 | 51458150241 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wooden strip, door rear left | NUSSBAUM | 1 | 51428150169 | $150.94 | ENDED | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear right | NUSSBAUM | 1 | 51428150170 | $150.94 | ENDED | Shop at ECS Tuning | |||
| 08 | Wooden strip, door front left | NUSSBAUM | 1 | 51418150167 | $179.97 | Shop at ECS Tuning | ||||
| 08 | Wooden strip, door front right | NUSSBAUM | 1 | 51418150168 | $179.97 | Shop at ECS Tuning | ||||
| 09 | Insert | 2 | 51458161557 | $1.23 | Shop at ECS Tuning | |||||
| 10 | Insert | 2 | 51458170519 | $1.23 | Shop at ECS Tuning | |||||
| 11 | Spring nut | X | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 12 | Plug-in retainer | 4 | 51459141448 | $1.03 | Shop at ECS Tuning | |||||
| 15 | Wooden cover f CAN holder | NUSSBAUM | 1 | 51168163004 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 16 | Base of center console | NUSSBAUM | 1 | 03/1997 | 51168238030 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Central locking system switch | 1 | 03/1997 | 61318360828 | $73.75 | Shop at ECS Tuning | ||||
| -- | Adapter lead | 1 | 03/1997 | 61128378985 | $16.68 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO BLOWER REAR | ||||||||||
| 16 | Base of center console | NUSSBAUM | 1 | 03/1997 | 51168238034 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Central locking system switch | 1 | 03/1997 | 61318360828 | $73.75 | Shop at ECS Tuning | ||||
| -- | Adapter lead | 1 | 03/1997 | 61128378985 | $16.68 | Shop at ECS Tuning | ||||
| 19 | Insert | X | 51417001629 | $1.23 | Shop at ECS Tuning | |||||
| 20 | Center console switch cover | NUSSBAUM | 1 | 09/1995 | 51168165302 | $97.06 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Seat heating, rear |
=Yes |
|||||||||
| 21 | Center console switch cover | NUSSBAUM | 1 | 09/1995 | 51168165303 | $97.06 | ENDED | Shop at ECS Tuning | ||
| 25 | On bord monitor wood strips | NUSSBAUM | 1 | 51458360708 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
