Mounting parts, instr. panel for BMW 5 Series E39 528i (2000)

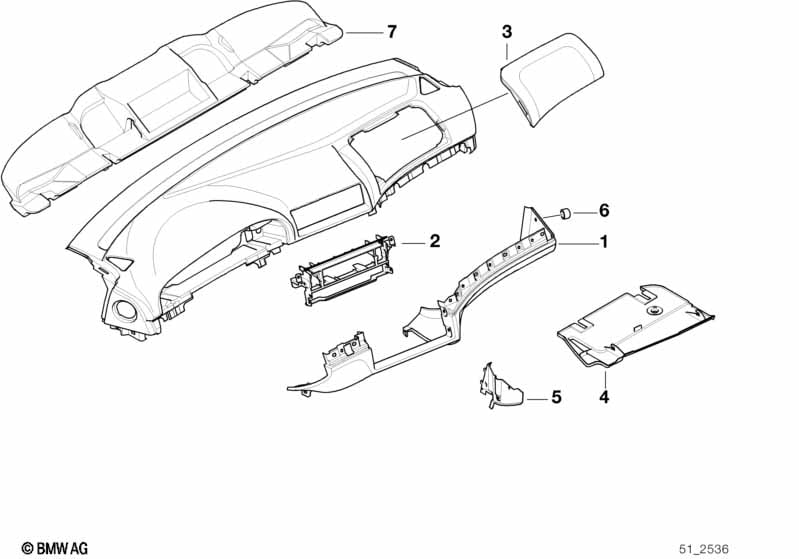

This Mounting parts, instr. panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel dashboard LOWER | SCHWARZ | 1 | 51457141454 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Trim panel dashboard LOWER | SANDBEIGE | 1 | 51457141456 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Trim panel dashboard LOWER | GRAU | 1 | 51457141458 | +core | Shop at ECS Tuning | ||||
| 01 | Trim panel dashboard LOWER | MARINEBLAU | 1 | 51457141460 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Trim panel dashboard LOWER | DUNKELGRÜN | 1 | 51457141462 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Function carrier monitor | 1 | 09/2000 | 51458186975 | ENDED | Shop at ECS Tuning | ||||
| 02 | Function carrier radio | 1 | 51457037713 | $97.79 | Shop at ECS Tuning | |||||
| 03 | Airbag dashboard lid | SCHWARZ | 1 | 51457141386 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Airbag dashboard lid | DUNKELBEIGE | 1 | 51457141388 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Airbag dashboard lid | MARINEBLAU | 1 | 51457141390 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Airbag dashboard lid | DUNKELGRÜN | 1 | 51457141392 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Trim panel door entrance left | GRAU | 1 | 51458223183 | Shop at ECS Tuning | |||||
| 04 | Trim panel door entrance left | SANDBEIGE | 1 | 51458223185 | Shop at ECS Tuning | |||||
| 04 | Trim panel door entrance left | SCHWARZ | 1 | 51458223279 | Shop at ECS Tuning | |||||
| 05 | Left trim panel center | SCHWARZ | 1 | 51458186955 | Shop at ECS Tuning | |||||
| 06 | Cap | SCHWARZ | 1 | 51161949793 | $0.42 | Shop at ECS Tuning | ||||
| 06 | Cap | CARAMEL | 1 | 51412699039 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Cap | GRAU | 1 | 51458209934 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Cap | MARINEBLAU | 1 | 51458209937 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Cap | SANDBEIGE | 1 | 51458209938 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Cap | DUNKELGRUEN | 1 | 51458209939 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 07 | Dashboard sound insulation | 1 | 51458189341 | $34.42 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
