Glove box for BMW 2 Series F45 Active Tourer LCI 216d (2017)

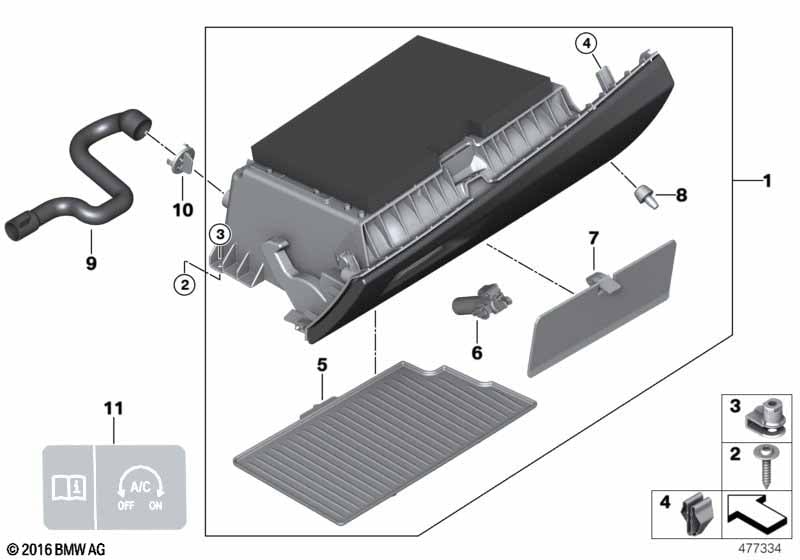

This Glove box technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 216d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glove box | SCHWARZ | 1 | 51169378406 | Shop at ECS Tuning | |||||
| For vehicles with oyster/Akzent grau |
OA=Yes |
|||||||||
| 01 | Glove box | OYSTER | 1 | 51169378408 | NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports package and Sport Line and Luxury Line |
P337A=Yes P7ACA=Yes P7S2A=Yes |
|||||||||
| 01 | Glove compartment with chrome wedge trim | SCHWARZ | 1 | 51169378414 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line |
P337A=Yes P7ACA=Yes P7S2A=No |
|||||||||
| 01 | Glove compartment with chrome wedge trim | SCHWARZ | 1 | 51169378414 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line |
P337A=Yes P7ACA=No P7S2A=Yes |
|||||||||
| 01 | Glove compartment with chrome wedge trim | SCHWARZ | 1 | 51169378414 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line |
P337A=Yes P7ACA=No P7S2A=No |
|||||||||
| 01 | Glove compartment with chrome wedge trim | SCHWARZ | 1 | 51169378414 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line |
P337A=No P7ACA=Yes P7S2A=Yes |
|||||||||
| 01 | Glove compartment with chrome wedge trim | SCHWARZ | 1 | 51169378414 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line |
P337A=No P7ACA=Yes P7S2A=No |
|||||||||
| 01 | Glove compartment with chrome wedge trim | SCHWARZ | 1 | 51169378414 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line |
P337A=No P7ACA=No P7S2A=Yes |
|||||||||
| 01 | Glove compartment with chrome wedge trim | SCHWARZ | 1 | 51169378414 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and oyster/Akzent grau |
P337A=Yes P7ACA=Yes P7S2A=Yes OA=Yes |
|||||||||
| 01 | Glove compartment with chrome wedge trim | OYSTER | 1 | 51169378416 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and oyster/Akzent grau |
P337A=Yes P7ACA=Yes P7S2A=No OA=Yes |
|||||||||
| 01 | Glove compartment with chrome wedge trim | OYSTER | 1 | 51169378416 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and oyster/Akzent grau |
P337A=Yes P7ACA=No P7S2A=Yes OA=Yes |
|||||||||
| 01 | Glove compartment with chrome wedge trim | OYSTER | 1 | 51169378416 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and oyster/Akzent grau |
P337A=Yes P7ACA=No P7S2A=No OA=Yes |
|||||||||
| 01 | Glove compartment with chrome wedge trim | OYSTER | 1 | 51169378416 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and oyster/Akzent grau |
P337A=No P7ACA=Yes P7S2A=Yes OA=Yes |
|||||||||
| 01 | Glove compartment with chrome wedge trim | OYSTER | 1 | 51169378416 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and oyster/Akzent grau |
P337A=No P7ACA=Yes P7S2A=No OA=Yes |
|||||||||
| 01 | Glove compartment with chrome wedge trim | OYSTER | 1 | 51169378416 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package and Sport Line and Luxury Line and oyster/Akzent grau |
P337A=No P7ACA=No P7S2A=Yes OA=Yes |
|||||||||
| 01 | Glove compartment with chrome wedge trim | OYSTER | 1 | 51169378416 | NoS | Shop at ECS Tuning | ||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 5 | 07149185673 | Shop at ECS Tuning | |||||
| 03 | C-clip for plastic nut | 2 | 07149200938 | Shop at ECS Tuning | ||||||
| 04 | Clamp | 1 | 07147321144 | Shop at ECS Tuning | ||||||
| 05 | Rubber insert, glove box | 1 | 51166839239 | Shop at ECS Tuning | ||||||
| 06 | Glove box damper | 1 | 51169362250 | Shop at ECS Tuning | ||||||
| 07 | Cover, fuse box | 1 | 51166839241 | Shop at ECS Tuning | ||||||
| 08 | Rubber buffer | 2 | 51168244385 | $1.13 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
