Mounting parts, instr. panel for BMW 5 Series E39 528i (2000)

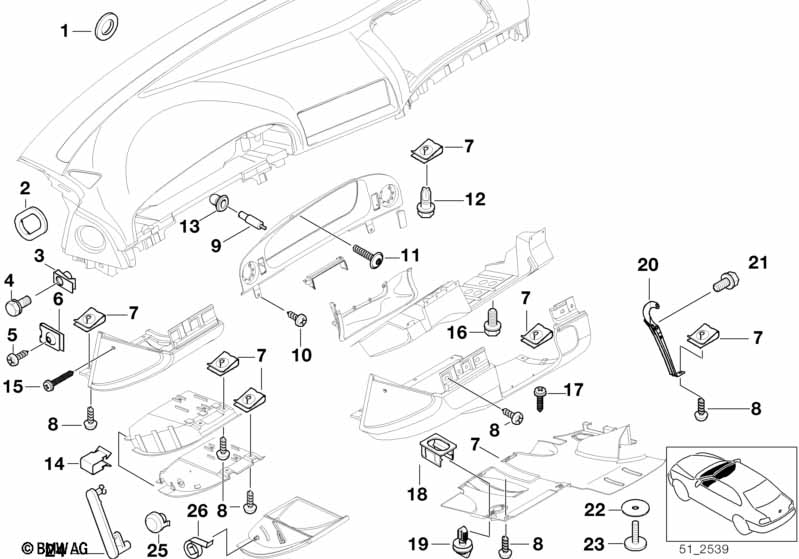

This Mounting parts, instr. panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | C-clip nut | M8-ZNS3 | 2 | 61332346555 | $1.87 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X20-ZNS3 | 2 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST4,2X16-Z2 | 4 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4,2-1-ZNS3 | 4 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 07 | C-clip nut | X | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 08 | Fillister head self-tapping screw | ST4,2X16-Z2 | X | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Threaded pin | 2 | 51458203211 | $1.38 | Shop at ECS Tuning | |||||
| 11 | Screw | 3 | 62118375035 | $0.28 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M6X12MM | 2 | 51458209089 | $0.66 | Shop at ECS Tuning | ||||
| 13 | Insert | 2 | 51458161557 | $1.23 | Shop at ECS Tuning | |||||
| 14 | Center console clip | 2 | 51168166680 | $0.69 | Shop at ECS Tuning | |||||
| 15 | Sheet metal screw | ST4,2X29 | 1 | 51419174273 | Shop at ECS Tuning | |||||
| 18 | Insert | 2 | 51458166654 | $0.35 | Shop at ECS Tuning | |||||
| 19 | Lock | 2 | 51711916197 | $1.35 | Shop at ECS Tuning | |||||
| 20 | Foot controls trim panel bracket | 1 | 51458163021 | $2.43 | Shop at ECS Tuning | |||||
| 20 | Foot controls trim panel bracket | 1 | 51458163022 | $2.43 | Shop at ECS Tuning | |||||
| 21 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 22 | Gasket | 2 | 51131906872 | $0.17 | Shop at ECS Tuning | |||||
| 23 | Fillister head screw | 3X16MM | 2 | 51458192765 | $0.52 | Shop at ECS Tuning | ||||
| 24 | Folding partition guiding bow | 2 | 51458125713 | $3.47 | Shop at ECS Tuning | |||||
| 25 | Folding partition damper | 2 | 51458160439 | $9.03 | Shop at ECS Tuning | |||||
| 26 | Folding partition spring | 2 | 51458125714 | $2.32 | Shop at ECS Tuning |
