Mounting parts, instr. panel for BMW 5 Series E39 528i (2000)

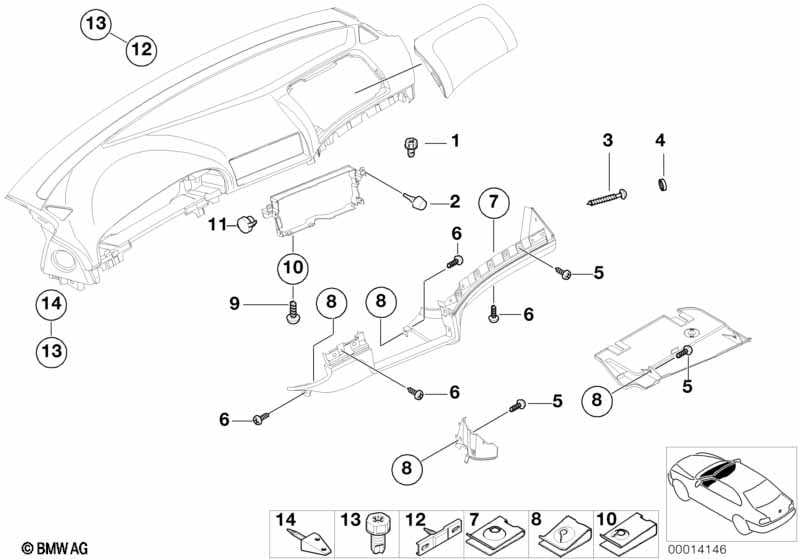

This Mounting parts, instr. panel technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M6X12MM | 2 | 51458209089 | $0.66 | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | ST4,2X29 | 1 | 51419174273 | Shop at ECS Tuning | |||||
| 04 | Cap | SCHWARZ | 1 | 51161949793 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Cap | CARAMEL | 1 | 51412699039 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Cap | GRAU | 1 | 51458209934 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Cap | MARINEBLAU | 1 | 51458209937 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Cap | SANDBEIGE | 1 | 51458209938 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Cap | DUNKELGRUEN | 1 | 51458209939 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 05 | Fillister head self-tapping screw | ST4,2X16-Z2 | X | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Sheet metal screw | ST4,8X19 | 5 | 07119904714 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Body nut | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 08 | C-clip nut | X | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 09 | Fillister head self-tapping screw | ST4,2X19-Z1 | 4 | 07119907801 | $0.22 | Shop at ECS Tuning | ||||
| 10 | Body nut | ST4.2 ZN | 4 | 51458203936 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Folding partition damper | 2 | 51458160439 | $9.03 | Shop at ECS Tuning | |||||
| 12 | DASHBOARD CENTERING SUPPORT, center | 1 | 51458176523 | $1.30 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M6X12MM | 6 | 51458209089 | $0.66 | Shop at ECS Tuning | ||||
| 14 | Left dashboard centering support | 1 | 51458176521 | $2.17 | Shop at ECS Tuning | |||||
| 14 | Right dashboard centering support | 1 | 51458176522 | $2.17 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
