Armrest, centre console for BMW 7 Series E38 728iL (1998)

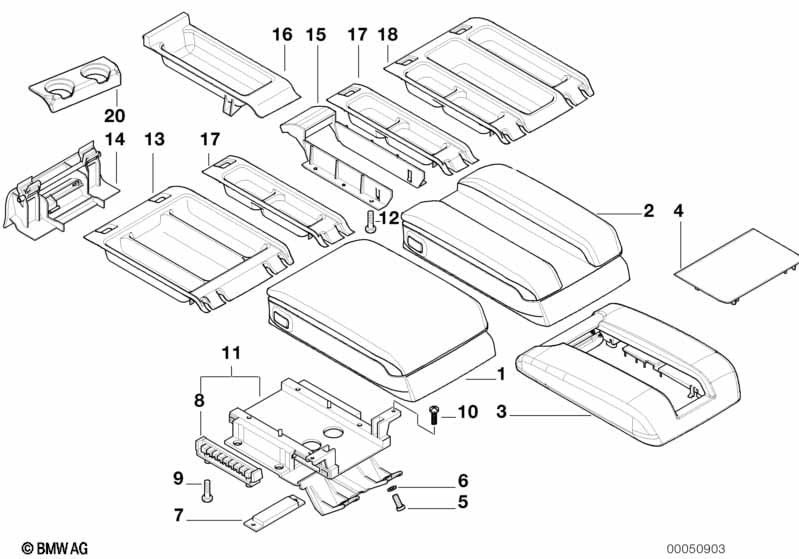

This Armrest, centre console technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Center arm rest | GRAU | 1 | 09/1997 | 51168174625 | $489.18 | ENDED | Shop at ECS Tuning | ||
| 01 | Center arm rest | SCHWARZ | 1 | 09/1997 | 51168174626 | $489.18 | ENDED | Shop at ECS Tuning | ||
| 01 | Center arm rest | MARINEBLAU | 1 | 09/1997 | 51168174627 | $489.18 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Center arm rest | SANDBEIGE | 1 | 09/1997 | 51168174628 | $489.18 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Center arm rest | LAVENDELGRAU | 1 | 09/1997 | 51168174629 | $489.18 | ENDED | Shop at ECS Tuning | ||
| 01 | Center arm rest | DUNKELGRUEN | 1 | 09/1997 | 51168174630 | $549.07 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Chrome Line Interieur and Automatic transmission |
S345A=Yes =Yes |
|||||||||
| 01 | Center arm rest | GRAU | 1 | 09/1997 | 51168171821 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center arm rest | SCHWARZ | 1 | 09/1997 | 51168171822 | $512.24 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Center arm rest | MARINEBLAU | 1 | 09/1997 | 51168171823 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center arm rest | SANDBEIGE | 1 | 09/1997 | 51168171824 | $512.24 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Center arm rest | LAVENDELGRAU | 1 | 09/1997 | 51168171825 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center arm rest | DUNKELGRUEN | 1 | 09/1997 | 51168171826 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center arm rest | PASTELLGRUEN | 1 | 09/1997 | 51168171827 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 02 | Center arm rest f telephone | GRAU | 1 | 09/1997 | 51168215936 | $538.28 | ENDED | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | SCHWARZ | 1 | 09/1997 | 51168215937 | $538.28 | Shop at ECS Tuning | |||
| 02 | Center arm rest f telephone | MARINEBLAU | 1 | 09/1997 | 51168215938 | $538.28 | ENDED | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | SANDBEIGE | 1 | 09/1997 | 51168215939 | $538.28 | ENDED | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | LAVENDELGRAU | 1 | 09/1997 | 51168215940 | $538.28 | ENDED | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | DUNKELGRUEN | 1 | 09/1997 | 51168215941 | $538.28 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Chrome Line Interieur and Automatic transmission |
S345A=Yes =Yes |
|||||||||
| 02 | Center arm rest f telephone | GRAU | 1 | 09/1997 | 51168216060 | $512.24 | ENDED | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | SCHWARZ | 1 | 09/1997 | 51168216061 | $538.28 | ENDED | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | MARINEBLAU | 1 | 09/1997 | 51168216062 | $512.24 | ENDED | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | SANDBEIGE | 1 | 09/1997 | 51168216063 | $512.24 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | LAVENDELGRAU | 1 | 09/1997 | 51168216064 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Center arm rest f telephone | DUNKELGRUEN | 1 | 09/1997 | 51168216065 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Manual Transmission for vehicles with and without telephone |
=Yes |
|||||||||
| 03 | Center arm rest | GRAU | 1 | 09/1997 | 51168215762 | $392.81 | Shop at ECS Tuning | |||
| 03 | Center arm rest | SCHWARZ | 1 | 09/1997 | 51168215763 | $392.81 | +core | Shop at ECS Tuning | ||
| 03 | Center arm rest | MARINEBLAU | 1 | 09/1997 | 51168215764 | $414.04 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Center arm rest | SANDBEIGE | 1 | 09/1997 | 51168215765 | $392.81 | ENDED | Shop at ECS Tuning | ||
| 03 | Center arm rest | LAVENDELGRAU | 1 | 09/1997 | 51168215766 | $414.04 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Center arm rest | DUNKELGRUEN | 1 | 09/1997 | 51168215767 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Center armrest cover, rear | GRAU | 1 | 51168185419 | $27.46 | +core | Shop at ECS Tuning | |||
| 04 | Center armrest cover, rear | SCHWARZ | 1 | 51168185420 | $27.46 | Shop at ECS Tuning | ||||
| 04 | Center armrest cover, rear | MARINEBLAU | 1 | 51168185421 | $27.46 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Center armrest cover, rear | SANDBEIGE | 1 | 51168185422 | $27.46 | Shop at ECS Tuning | ||||
| 04 | Center armrest cover, rear | LAVENDELGRAU | 1 | 51168185423 | $27.46 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Center armrest cover, rear | DUNKELGRUEN | 1 | 51168185424 | $31.81 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Center armrest cover, rear | PASTELLGRUEN | 1 | 51168185425 | $32.64 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Center armrest cover, rear | PEARLBEIGE | 1 | 51168254095 | $30.98 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Torx bolt | ISA M6X16 | 2 | 41352290799 | $1.10 | Shop at ECS Tuning | ||||
| 06 | Washer | 6,4 | 2 | 07119931087 | $0.92 | ENDED | Shop at ECS Tuning | |||
| 07 | Support for centre armrest | 1 | 51168169708 | $20.05 | Shop at ECS Tuning | |||||
| 08 | Notch | 1 | 51168174623 | $6.03 | Shop at ECS Tuning | |||||
| 09 | Oval-head screw with washer | DELTA PT4X12 | 2 | 07149200941 | Shop at ECS Tuning | |||||
| 10 | Torx bolt | 6 | 51168209794 | $1.94 | Shop at ECS Tuning | |||||
| 11 | Centre arm rest sliding unit | 1 | 51168215780 | $138.44 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission for vehicles with and without telephone |
S205A=Yes |
|||||||||
| 11 | Centre arm rest sliding unit | 1 | 09/1997 | 51168215780 | $138.44 | Shop at ECS Tuning | ||||
| 12 | Screw for thermoplastic plastics | M4X16 | 2 | 07129900669 | $0.65 | Shop at ECS Tuning | ||||
| 13 | Center armrest tray | 1 | 51168161610 | $24.00 | ENDED | Shop at ECS Tuning | ||||
| 14 | Centre arm rest lock | 1 | 51168174621 | $32.90 | ENDED | Shop at ECS Tuning | ||||
| 15 | Center armrest eject-box support | 1 | 09/1997 | 51168215771 | $21.68 | Shop at ECS Tuning | ||||
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 16 | Center armrest tray | 1 | 09/1997 | 51168215943 | $15.50 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 16 | Center armrest tray | 1 | 09/1997 | 51168215770 | $17.75 | Shop at ECS Tuning | ||||
| For vehicles with Preparation f tel.installation universal |
S640A=Yes |
|||||||||
| 17 | Left center armrest tray | 1 | 09/1997 | 51168215743 | $22.43 | Shop at ECS Tuning | ||||
| 17 | Right center armrest tray | 1 | 09/1997 | 51168215744 | $22.43 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
