Mounting parts, center console for BMW 7 Series E38 750iLS (2001)

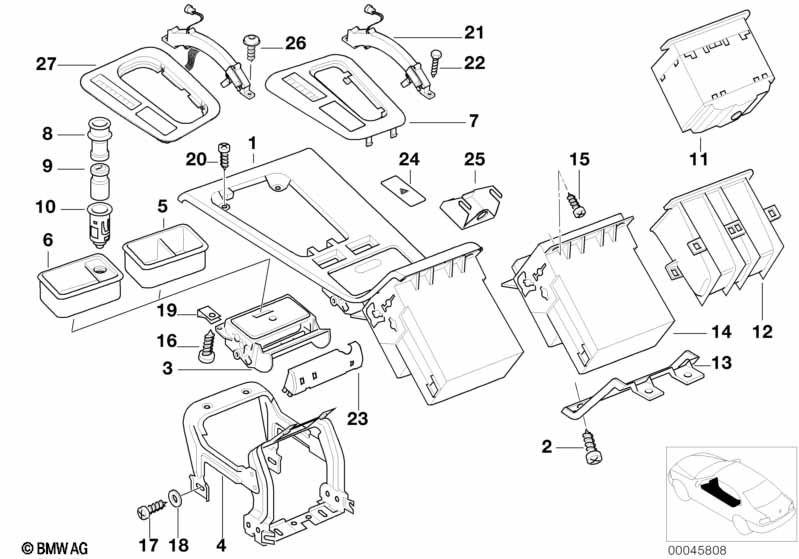

This Mounting parts, center console technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPL.TO REAR CENTRE CONSOLE/SA 533 | ||||||||||
| 01 | Base of center console | NUSSBAUM | 1 | 51168232017 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST4,8X16-Z1 | 3 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Center console insert | 1 | 51168160423 | $126.68 | Shop at ECS Tuning | |||||
| 04 | Center console rear bracket | 1 | 51168161598 | $36.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Coinbox | SCHWARZ | 1 | 51168163967 | $17.00 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Ashtray insert | SCHWARZ | 1 | 51168170481 | $15.73 | ENDED | Shop at ECS Tuning | |||
| 07 | Preselect.lever cover f steptronic | SCHWARZ | 1 | 51168259989 | Shop at ECS Tuning | |||||
| For vehicles with Steptronic/sports program |
=Yes |
|||||||||
| 07 | Preselect.lever cover f steptronic | SCHWARZ | 1 | 51168221521 | ENDED | Shop at ECS Tuning | ||||
| 08 | Stopper plug-in socket | 1 | 09/1996 | 61349316116 | Shop at ECS Tuning | |||||
| 09 | Lighter element | 1 | 09/1996 | 61349308246 | Shop at ECS Tuning | |||||
| 10 | Cigarette lighter socket | 1 | 09/1996 | 61346977678 | $26.73 | +core | Shop at ECS Tuning | |||
| 11 | Cassette box | 1 | 65148178966 | $132.07 | +core | Shop at ECS Tuning | ||||
| 12 | Center console storing partition | 1 | 51168161569 | $23.17 | +core | Shop at ECS Tuning | ||||
| 13 | Bracket, center console | 1 | 51168156667 | $8.00 | ENDED | Shop at ECS Tuning | ||||
| 14 | Rear center console insert | 1 | 51168150395 | $68.94 | Shop at ECS Tuning | |||||
| 15 | Fillister head self-tapping screw | ST3,5X13-Z1 | 2 | 07119907951 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Fillister head self-tapping screw | ST4,8X13-Z1 | 2 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 17 | Fillister head screw | M4X14 | 4 | 07119900246 | $0.20 | Shop at ECS Tuning | ||||
| 18 | Washer | 9X4,3X0,8-200HV | 4 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 19 | Body nut | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 20 | Fillister head self-tapping screw | ST4,2X16-Z2 | 2 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 23 | Covering cap | SCHWARZ | 1 | 51168202971 | $6.17 | Shop at ECS Tuning | ||||
| 24 | Emergency exit detonator cover | 1 | 51168131859 | ENDED | Shop at ECS Tuning | |||||
| 25 | Holder | 1 | 51168210136 | ENDED, +core | Shop at ECS Tuning | |||||
| 27 | Cover, gear selecting lever | SCHWARZ | 1 | 51168163811 | Shop at ECS Tuning | |||||
