Door trim panel, front / side airbag for BMW 5 Series E39 525i (2003)

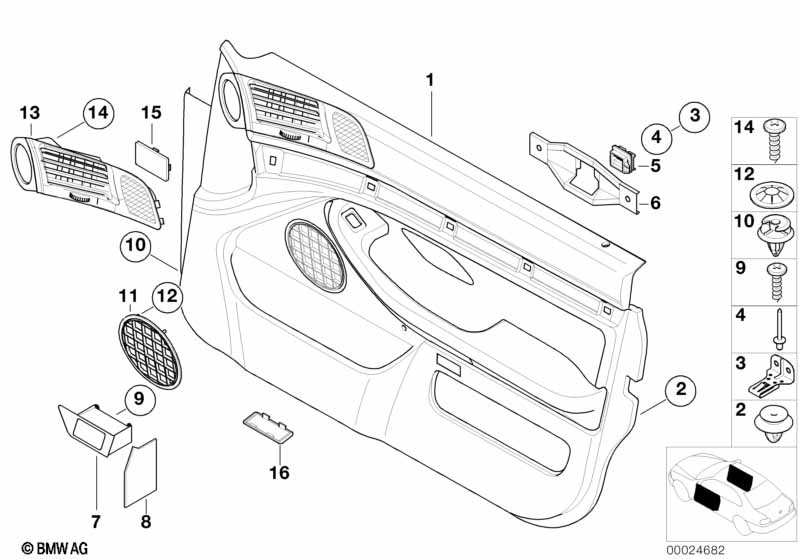

This Door trim panel, front / side airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO SIDE AIR BAG OLD/NEW REFERENCE UPHOLSTERY CODE Refer to "Help - abbreviations" in EPC |
|||||||||
| CLOTH VERSION FLOCK anthrazit D3AT/D9AT grau D3TT/D9TT marine-blau D3DL/D9DL |
||||||||||
| 01 | Door trim panel, front left | ANTHRAZIT | 1 | 03/1996 | 51418212613 | $664.02 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | ANTHRAZIT | 1 | 03/1996 | 51418212616 | $664.02 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | GRAU | 1 | 03/1996 | 51418212617 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | GRAU | 1 | 03/1996 | 51418212620 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | MARINEBLAU | 1 | 03/1996 | 51418212621 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | MARINEBLAU | 1 | 03/1996 | 51418212624 | $664.02 | ENDED | Shop at ECS Tuning | ||
| CLOTH VERSION, FLAT TEXTILE anthrazit D4AT grau D4TT dunkel-grün D4EG königs-blau D4KU |
||||||||||
| 01 | Door trim panel, front left | ANTHRAZIT | 1 | 03/1996 | 51418212645 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | ANTHRAZIT | 1 | 03/1996 | 51418212648 | $850.71 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | GRAU | 1 | 03/1996 | 51418212649 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | GRAU | 1 | 03/1996 | 51418212652 | $850.71 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | DUNKELGRUEN | 1 | 03/1996 | 51418212653 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | DUNKELGRUEN | 1 | 03/1996 | 51418212656 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | KOENIGSBLAU | 1 | 03/1996 | 51418212657 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | KOENIGSBLAU | 1 | 03/1996 | 51418212660 | $664.02 | ENDED | Shop at ECS Tuning | ||
| Leather version Nappa Sandbeige R1SN, Naturbraun N9NG. |
||||||||||
| 01 | Door trim panel, front left | NATURBRAUN N9NG | 1 | 09/1998 | 51418258651 | $1220.19 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | NATURBRAUN N9NG | 1 | 09/1998 | 51418258654 | $970.92 | ENDED | Shop at ECS Tuning | ||
| Cloth version diagonal rep Grau F4TT, Anthrazit F4AT, Biarritzblau F4BR, Sienarot F4SR. |
||||||||||
| 01 | Door trim panel, front left | GRAU | 1 | 03/1998 | 51417140331 | $843.21 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | GRAU | 1 | 03/1998 | 51417140338 | $843.21 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | BIARRITZBLAU | 1 | 09/1998 | 51418252861 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | BIARRITZBLAU | 1 | 09/1998 | 51418252864 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | SIENAROT | 1 | 09/1998 | 51418252865 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | SIENAROT | 1 | 09/1998 | 51418252868 | $664.02 | ENDED, +core | Shop at ECS Tuning | ||
| IMITATION LEATHER schwarz K4SW sand-beige K4SN |
||||||||||
| 01 | Door trim panel, front left | SANDBEIGE | 1 | 03/1996 | 51417140279 | $969.68 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 03/1996 | 51417140281 | $969.68 | +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | SANDBEIGE | 1 | 03/1996 | 51417140288 | $978.32 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 03/1996 | 51417140290 | $978.32 | ENDED, +core | Shop at ECS Tuning | ||
| Leather version Montana Sandbeige O7SN, Steingrün N6GN, Steingrün O7GN, Lightgelb N6LG, Lightgelb O7LG. |
||||||||||
| 01 | Door trim panel, front left | SANDBEIGE O7SN | 1 | 09/1998 | 51417140299 | $1090.62 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | STEINGRÜN N6GN | 1 | 09/1998 | 51417140301 | $1090.62 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | STEINGRÜN O7GN | 1 | 09/1998 | 51417140303 | $1090.62 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | LIGHTGELB O7LG | 1 | 09/1998 | 51417140307 | $970.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | SANDBEIGE O7SN | 1 | 09/1998 | 51417140318 | $1090.62 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | STEINGRÜN N6GN | 1 | 09/1998 | 51417140320 | $970.92 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | STEINGRÜN O7GN | 1 | 09/1998 | 51417140322 | $1090.62 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | LIGHTGELB O7LG | 1 | 09/1998 | 51417140326 | $970.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | LIGHTGELB N6LG | 1 | 09/1998 | 51418258639 | $970.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | LIGHTGELB N6LG | 1 | 09/1998 | 51418258642 | $970.92 | ENDED, +core | Shop at ECS Tuning | ||
| LEATHER VERSION MONTANA schwarz N6SW grau N6TT aubergine N6AI sand-beige N6SN sattel-braun N6SY dunkel-grün N6EG |
||||||||||
| 01 | Door trim panel, front left | GRAU | 1 | 03/1996 | 51417140293 | $1090.62 | +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | SANDBEIGE | 1 | 03/1996 | 51417140295 | $1090.62 | +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 03/1996 | 51417140297 | $1090.62 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | GRAU | 1 | 03/1996 | 51417140312 | $1090.62 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | SANDBEIGE | 1 | 03/1996 | 51417140314 | $1090.62 | +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 03/1996 | 51417140316 | $1090.62 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | DUNKELGRUEN | 1 | 03/1996 | 51418222843 | $970.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | DUNKELGRUEN | 1 | 03/1996 | 51418222846 | $970.92 | ENDED | Shop at ECS Tuning | ||
| Cloth, Flock Anthrazit F6AT Grau F6TT Marineblau F6DL Dunkelgrün F6EG |
||||||||||
| 01 | Door trim panel, front left | ANTHRAZIT | 1 | 09/1998 | 51418258471 | $664.02 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | ANTHRAZIT | 1 | 09/1998 | 51418258474 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | GRAU | 1 | 09/1998 | 51418258475 | $850.71 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | GRAU | 1 | 09/1998 | 51418258478 | $850.71 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | MARINEBLAU | 1 | 09/1998 | 51418258479 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | MARINEBLAU | 1 | 09/1998 | 51418258482 | $664.02 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | DUNKELGRÜN | 1 | 09/1998 | 51418258483 | $850.71 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | DUNKELGRÜN | 1 | 09/1998 | 51418258486 | $850.71 | ENDED | Shop at ECS Tuning | ||
| Leather version Nappa Sandbeige R1SN, Naturbraun N9NG. matches V6SN with black railing |
||||||||||
| 01 | Door trim panel, front left | SANDBEIGE R1SN | 1 | 09/1998 | 51418258647 | $970.92 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | SANDBEIGE R1SN | 1 | 09/1998 | 51418258650 | $1220.19 | ENDED | Shop at ECS Tuning | ||
| Cloth version "Headline" Basic trim panel of plastic foil Center cover of cloth Armrest, imitation leather Door railing of plastic foil |
||||||||||
| 01 | Door trim panel, front left | ANTHRAZIT G3AT | 1 | 03/1999 | 51417140341 | $848.16 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | ANTHRAZIT G3AT | 1 | 03/1999 | 51417140346 | $848.16 | Shop at ECS Tuning | |||
| For vehicles with Diagonal rep cloth |
F4=Yes |
|||||||||
| 01 | Door trim panel, front left | MARINEBLAU | 1 | 09/2001 | 51417050689 | $664.02 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | MARINEBLAU | 1 | 09/2001 | 51417050692 | $664.02 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | ENGLISCHGRÜN | 1 | 09/2001 | 51417050693 | $664.02 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | ENGLISCHGRÜN | 1 | 09/2001 | 51417050696 | $664.02 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather Highline |
V6=Yes |
|||||||||
| 01 | Door trim panel, front left | BURGUND | 1 | 09/2001 | 07/2003 | 51417048677 | $970.92 | ENDED | Shop at ECS Tuning | |
| 01 | Door trim panel, front left | BURGUND | 1 | 09/2001 | 51417140369 | $970.92 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | SCHWARZ | 1 | 09/2001 | 51417140365 | $1252.59 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | SCHWARZ | 1 | 09/2001 | 51417140366 | $1252.59 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front left | SANDBEIGE | 1 | 09/2001 | 51417140367 | $1252.59 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | SANDBEIGE | 1 | 09/2001 | 51417140368 | $1252.59 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | BURGUND | 1 | 09/2001 | 51417140370 | $970.92 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Sportline" |
J3=Yes |
|||||||||
| 01 | Door trim panel, front right | GRAUBLAU | 1 | 09/2001 | 07/2003 | 51417048654 | $848.16 | ENDED, +core | Shop at ECS Tuning | |
| 01 | Door trim panel, front right | GRAUBLAU | 1 | 09/2001 | 51417140362 | $848.16 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | ANTHRAZIT | 1 | 09/2001 | 51417140349 | $848.16 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | FLANELLGRAU | 1 | 09/2001 | 51417140351 | $848.16 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front left | GRAUBLAU | 1 | 09/2001 | 51417140353 | $848.16 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door trim panel, front right | ANTHRAZIT | 1 | 09/2001 | 51417140358 | $848.16 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | FLANELLGRAU | 1 | 09/2001 | 51417140360 | $848.16 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Fabric Rips diagonal/anthracite Cloth version diagonal rep Grau F4TT, Anthrazit F4AT, Biarritzblau F4BR, Sienarot F4SR. |
F4AT=Yes |
|||||||||
| 01 | Door trim panel, front left | ANTHRAZIT | 1 | 03/1998 | 51417140329 | $843.21 | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | ANTHRAZIT | 1 | 03/1998 | 51417140336 | $843.21 | Shop at ECS Tuning | |||
| 02 | Clip Natur | X | 03/1996 | 51411973500 | $0.24 | Shop at ECS Tuning | ||||
| 03 | Grip bracket | 2 | 03/1996 | 51218156538 | $0.92 | Shop at ECS Tuning | ||||
| 04 | Blind rivet | 4 | 03/1996 | 51218199602 | $0.52 | Shop at ECS Tuning | ||||
| 05 | Grip support | 2 | 03/1996 | 51418156532 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Bar left | 1 | 03/1996 | 51418172207 | $8.84 | Shop at ECS Tuning | ||||
| 06 | Bar right | 1 | 03/1996 | 51418172210 | $9.09 | Shop at ECS Tuning | ||||
| 07 | Coinbox | SCHWARZ | 1 | 03/1996 | 51418200795 | $35.98 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Coinbox | GRAU | 1 | 03/1996 | 51418200797 | $36.85 | +core | Shop at ECS Tuning | ||
| 07 | Coinbox | SANDBEIGE | 1 | 03/1996 | 51418200799 | $36.85 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Coinbox | DUNKELGRUEN | 1 | 03/1996 | 51418200801 | $36.85 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Coinbox | MARINEBLAU | 1 | 03/1996 | 51418200803 | $36.85 | +core | Shop at ECS Tuning | ||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 07 | Coinbox | SCHWARZ | 1 | 03/1996 | 51418200805 | $36.85 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Coinbox | GRAU | 1 | 03/1996 | 51418200807 | $36.85 | +core | Shop at ECS Tuning | ||
| 07 | Coinbox | SANDBEIGE | 1 | 03/1996 | 51418200809 | $36.85 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Coinbox | DUNKELGRUEN | 1 | 03/1996 | 51418200811 | $31.81 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Coinbox | MARINEBLAU | 1 | 03/1996 | 51418200813 | $31.81 | ENDED, +core | Shop at ECS Tuning | ||
| 08 | Lateral trim panel left | SCHWARZ | 1 | 03/1996 | 51418200869 | $5.95 | Shop at ECS Tuning | |||
| 08 | Lateral trim panel left | GRAU | 1 | 03/1996 | 51418200871 | $6.14 | Shop at ECS Tuning | |||
| 08 | Lateral trim panel left | SANDBEIGE | 1 | 03/1996 | 51418200873 | $6.14 | Shop at ECS Tuning | |||
| 08 | Lateral trim panel left | DUNKELGRUEN | 1 | 03/1996 | 51418200875 | $4.74 | ENDED | Shop at ECS Tuning | ||
| 08 | Lateral trim panel left | MARINEBLAU | 1 | 03/1996 | 51418200877 | $4.74 | ENDED | Shop at ECS Tuning | ||
| 09 | Screw for thermoplastic plastics | 4X16MM | 4 | 03/1996 | 07119900591 | $0.25 | Shop at ECS Tuning | |||
| 10 | Clip, yellow | 6 | 03/1996 | 51418172050 | $0.42 | Shop at ECS Tuning | ||||
| 11 | Cover Loudspeaker | SCHWARZ | 2 | 03/1996 | 51418178241 | $16.05 | ENDED | Shop at ECS Tuning | ||
| 11 | Cover Loudspeaker | MARINEBLAU | 2 | 03/1996 | 51418178242 | $14.13 | Shop at ECS Tuning | |||
| 11 | Cover Loudspeaker | SANDBEIGE | 2 | 03/1996 | 51418178999 | $14.13 | Shop at ECS Tuning | |||
| 11 | Cover Loudspeaker | DUNKELGRUEN | 2 | 03/1996 | 51418179000 | $14.13 | ENDED | Shop at ECS Tuning | ||
| 11 | Cover Loudspeaker | GRAU | 2 | 03/1996 | 51418190825 | $14.13 | Shop at ECS Tuning | |||
| 11 | Cover Loudspeaker | FLANELLGRAU | 2 | 09/2001 | 51417049276 | $14.33 | ENDED | Shop at ECS Tuning | ||
| 11 | Cover Loudspeaker | GRAUBLAU | 2 | 09/2001 | 51417049277 | $14.33 | ENDED | Shop at ECS Tuning | ||
| 11 | Cover Loudspeaker | BURGUND | 2 | 09/2001 | 51417049278 | $12.16 | ENDED | Shop at ECS Tuning | ||
| 12 | Lock Ring | 8 | 03/1996 | 64118247773 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Fresh air grille, left | SCHWARZ | 1 | 03/1996 | 64228364029 | $101.98 | Shop at ECS Tuning | |||
| 13 | Fresh air grille, right | SCHWARZ | 1 | 03/1996 | 64228364030 | $101.98 | Shop at ECS Tuning | |||
| 13 | Fresh air grille, left | MARINEBLAU | 1 | 03/1996 | 64228364031 | $101.98 | ENDED | Shop at ECS Tuning | ||
| 13 | Fresh air grille, right | MARINEBLAU | 1 | 03/1996 | 64228364032 | $101.98 | Shop at ECS Tuning | |||
| 13 | Fresh air grille, left | DUNKELBEIGE | 1 | 03/1996 | 64228364033 | $101.98 | Shop at ECS Tuning | |||
| 13 | Fresh air grille, right | DUNKELBEIGE | 1 | 03/1996 | 64228364034 | $101.98 | Shop at ECS Tuning | |||
| 13 | Fresh air grille, left | DUNKELGRUEN | 1 | 03/1996 | 64228364035 | $101.98 | ENDED | Shop at ECS Tuning | ||
| 13 | Fresh air grille, right | DUNKELGRUEN | 1 | 03/1996 | 64228364036 | $101.98 | Shop at ECS Tuning | |||
| 14 | Sheet metal screw | ST 3,5X22MM | 6 | 03/1996 | 07119901194 | $0.11 | Shop at ECS Tuning | |||
| 15 | Cap | 2 | 03/1996 | 51418185780 | $0.59 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
