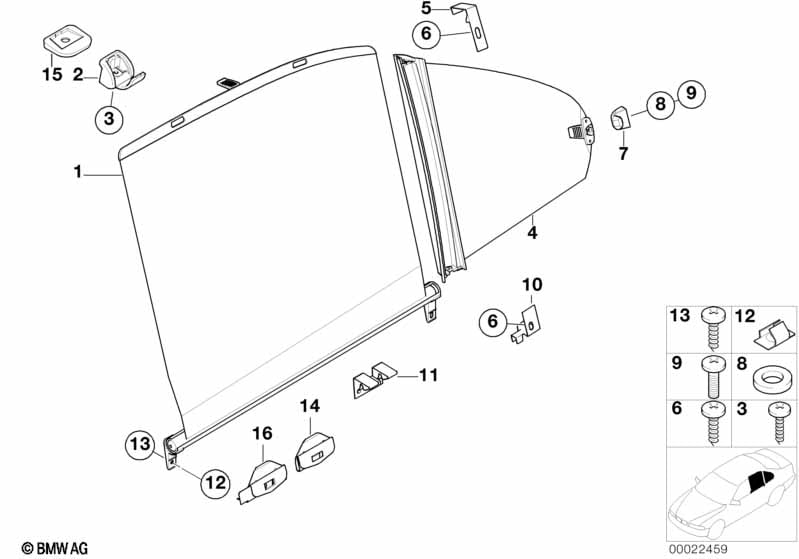

Roller sun vizor, rear door for BMW 5 Series E39 523i (1998)
This Roller sun vizor, rear door technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear door sun blind | DUNKELGRAU | 1 | 51168176165 | $190.95 | Shop at ECS Tuning | ||||
| 01 | Right rear door sun blind | DUNKELGRAU | 1 | 51168176166 | $190.95 | Shop at ECS Tuning | ||||
| 02 | Side window sun blind hook | SCHWARZ | 4 | 51168193949 | $2.78 | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapping screw | ST3,5X13 | 6 | 07119906720 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Right rear door sun blind | DUNKELGRAU | 1 | 09/2002 | 51168176168 | $190.95 | Shop at ECS Tuning | |||
| 04 | Left rear door sun blind | DUNKELGRAU | 1 | 51167110205 | $190.95 | Shop at ECS Tuning | ||||
| 04 | Right rear door sun blind | DUNKELGRAU | 1 | 51167110206 | $190.95 | +core | Shop at ECS Tuning | |||
| 05 | Sun blind support | 2 | 51168191679 | $0.94 | Shop at ECS Tuning | |||||
| 06 | Fillister head self-tapping screw | ST4,2X13 | 6 | 07119906748 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Fixed sun blind hook | SCHWARZ | 2 | 51168200982 | $2.32 | Shop at ECS Tuning | ||||
| 08 | Washer | 3,7 | 2 | 07119936410 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | 2 | 07146977946 | $0.83 | Shop at ECS Tuning | |||||
| 10 | Left sun blind support | 1 | 51168202819 | $0.95 | Shop at ECS Tuning | |||||
| 10 | Right sun blind support | 1 | 51168202820 | $0.95 | Shop at ECS Tuning | |||||
| 11 | Door window railing clip | X | 51417015015 | $0.69 | Shop at ECS Tuning | |||||
| 12 | Prestol-cage | ST4,8 | 8 | 07129925765 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 13 | Fillister head self-tapping screw | ST4,8X16-Z1 | 8 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Sun blind clip | X | 51218206541 | $0.74 | Shop at ECS Tuning | |||||
| 15 | spacer hook roller shade side window | SCHWARZ | 4 | 51168237530 | $0.70 | ENDED | Shop at ECS Tuning | |||
| 16 | Left sun blind clip | 1 | 51228216805 | $1.44 | Shop at ECS Tuning | |||||
| 16 | Right sun blind clip | 1 | 51228216806 | $1.44 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
