Trunk battery cover for BMW 3 Series E36 323i (1999)

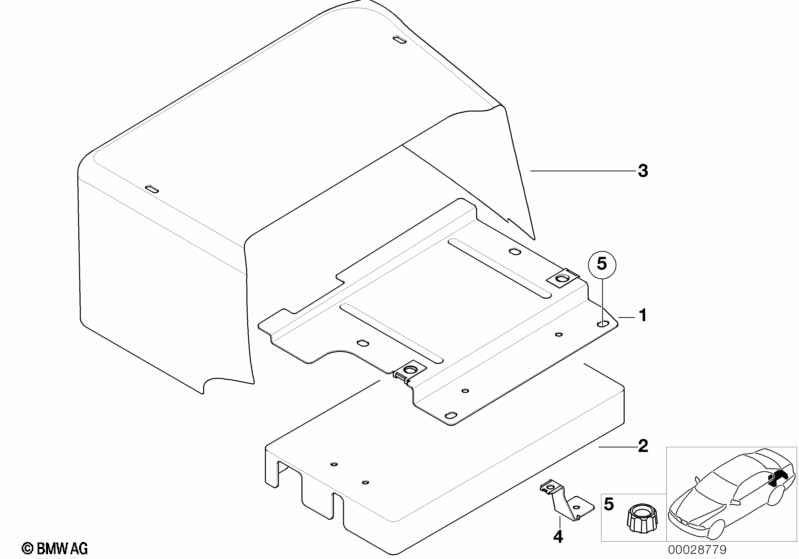

This Trunk battery cover technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Additional battery holder | 1 | 51718212309 | $101.56 | ENDED | Shop at ECS Tuning | ||||
| 02 | Battery terminals cover | 1 | 51478210449 | $104.07 | ENDED | Shop at ECS Tuning | ||||
| 03 | Additional battery cover | 1 | 51478212311 | $467.60 | ENDED | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 51718216928 | ENDED | Shop at ECS Tuning | |||||
| 05 | Knurled head nut | 2 | 41128186428 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
