Floor covering for BMW 5 Series E39 528i (2000)

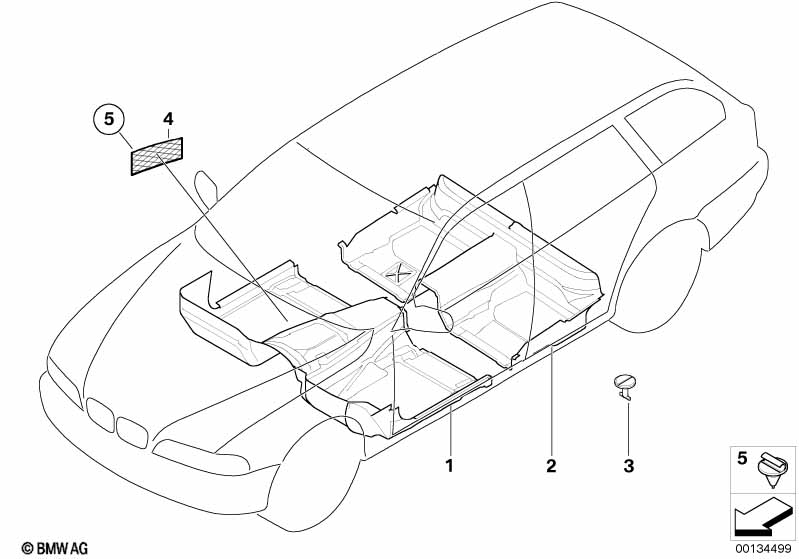

This Floor covering technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor trim cover, front | DUNKELGRUEN | 1 | 51478203999 | $616.59 | ENDED | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | SANDBEIGE | 1 | 51478204000 | $667.33 | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | MARINEBLAU | 1 | 51478204001 | $667.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | GRAU | 1 | 51478204002 | $667.33 | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | ANTHRAZIT | 1 | 51478204003 | $667.33 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Latent heat accumulator |
=Yes |
|||||||||
| 01 | Floor trim cover, front | ANTHRAZIT | 1 | 51478213641 | $667.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | GRAU | 1 | 51478213642 | $667.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | MARINEBLAU | 1 | 51478213643 | $616.59 | ENDED | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | SANDBEIGE | 1 | 51478213644 | $667.33 | ENDED | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | DUNKELGRUEN | 1 | 51478213645 | $616.59 | ENDED | Shop at ECS Tuning | |||
| 02 | Floor covering rear | ANTHRAZIT | 1 | 51478169523 | $546.40 | Shop at ECS Tuning | ||||
| 02 | Floor covering rear | GRAU | 1 | 51478169524 | $546.40 | Shop at ECS Tuning | ||||
| 02 | Floor covering rear | MARINEBLAU | 1 | 51478169525 | $546.40 | ENDED | Shop at ECS Tuning | |||
| 02 | Floor covering rear | SANDBEIGE | 1 | 51478169527 | $546.40 | Shop at ECS Tuning | ||||
| 02 | Floor covering rear | DUNKELGRUEN | 1 | 51478169528 | $494.39 | ENDED | Shop at ECS Tuning | |||
| 03 | Rotary latch 18 mm | ANTHRAZIT | 8 | 51478127272 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Rotary latch 18 mm | GRAU | 8 | 51478177603 | $1.10 | Shop at ECS Tuning | ||||
| 03 | Rotary latch 18 mm | MARINEBLAU | 8 | 51478177604 | $0.88 | Shop at ECS Tuning | ||||
| 03 | Rotary latch 18 mm | SANDBEIGE | 8 | 51478177605 | $1.10 | Shop at ECS Tuning | ||||
| 03 | Rotary latch 18 mm | ENGLISCHGRÜN | 8 | 51478177608 | $0.88 | Shop at ECS Tuning | ||||
| NOT SUITABLE FOR LATENT HEAT ACCUMULATOR |
||||||||||
| 04 | Parcel net | 1 | 51472277265 | $28.56 | Shop at ECS Tuning | |||||
| 05 | Fastening elements | 4 | 51472263062 | $0.50 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
