Headlining / Handle for BMW 5 Series E39 528i (2000)

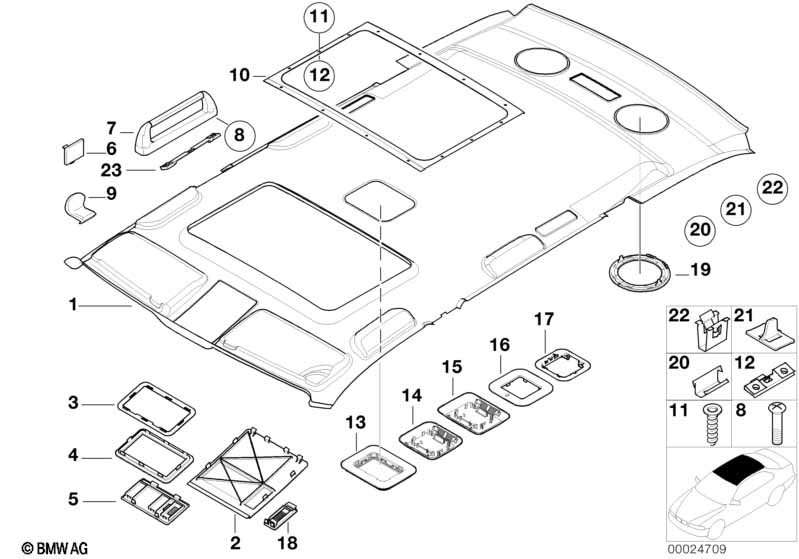

This Headlining / Handle technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Molded roof lining ITS | ANTHRAZIT | 1 | 09/1997 | 51442251954 | $457.56 | +core | Shop at ECS Tuning | ||
| 01 | Molded roof lining ITS | HELLGRAU | 1 | 09/1997 | 51448235724 | $498.60 | Shop at ECS Tuning | |||
| 01 | Molded roof lining ITS | SANDBEIGE | 1 | 09/1997 | 51448235729 | $498.60 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Molded headlining f slid. lift. roof ITS | ANTHRAZIT | 1 | 09/1997 | 51442251985 | $498.60 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Molded headlining f slid. lift. roof ITS | HELLGRAU | 1 | 09/1997 | 51448233231 | $498.60 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover sliding roof motor | ANTHRAZIT | 1 | 51442268978 | $28.75 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | HELLGRAU | 1 | 51448206527 | $28.75 | +core | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | SANDBEIGE | 1 | 51448206528 | $28.75 | ENDED, +core | Shop at ECS Tuning | |||
| only applies to garage door opener | ||||||||||
| 02 | Cover sliding roof motor | HELLGRAU | 1 | 09/1999 | 51447010407 | $28.75 | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | HELLBEIGE | 1 | 09/1999 | 51447010408 | $28.75 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover sliding roof motor | SCHWARZ | 1 | 09/1999 | 51448255993 | $28.75 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Hands-free telephone |
=Yes |
|||||||||
| 02 | Cover sliding roof motor | ANTHRAZIT | 1 | 51442269454 | $28.75 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | HELLGRAU | 1 | 51448206529 | $28.75 | +core | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | SANDBEIGE | 1 | 51448206530 | $28.75 | Shop at ECS Tuning | ||||
| 03 | Frame f hands free telephone | 1 | 51448171515 | $1.65 | Shop at ECS Tuning | |||||
| 04 | Frame f hands free telephone | ANTHRAZIT | 1 | 51442268975 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Frame f hands free telephone | HELLGRAU | 1 | 51448174704 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Frame f hands free telephone | SANDBEIGE | 1 | 51448174705 | $3.21 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover, microphone | HELLGRAU | 1 | 03/1998 | 51448250115 | $4.29 | Shop at ECS Tuning | |||
| 05 | Cover, microphone | SANDBEIGE | 1 | 03/1998 | 51448250117 | $4.29 | Shop at ECS Tuning | |||
| 05 | Cover, microphone | ANTHRAZIT | 1 | 03/1998 | 51448250118 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with ITS - Head airbag |
=Yes |
|||||||||
| 06 | Covering cap for grip 0° - ITS | HELLGRAU | 4 | 09/1997 | 51168268637 | $0.56 | Shop at ECS Tuning | |||
| 06 | Covering cap for grip 0° - ITS | SANDBEIGE | 4 | 09/1997 | 51168268638 | $0.56 | Shop at ECS Tuning | |||
| 06 | Covering cap for grip 0° - ITS | SCHWARZ | 4 | 09/1997 | 51168268639 | $0.56 | Shop at ECS Tuning | |||
| For vehicles with ITS - Head airbag and Lift-up-and-slide-back sunroof |
=Yes =Yes |
|||||||||
| 06 | Covering cap for grip 8° - ITS | HELLGRAU | 4 | 09/1997 | 51168268640 | $0.56 | Shop at ECS Tuning | |||
| 06 | Covering cap for grip 8° - ITS | SANDBEIGE | 4 | 09/1997 | 51168268641 | $0.56 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering cap for grip 8° - ITS | SCHWARZ | 4 | 09/1997 | 51168268642 | $0.56 | Shop at ECS Tuning | |||
| For vehicles with ITS - Head airbag |
=Yes |
|||||||||
| 07 | Handle front - ITS | SCHWARZ | 2 | 09/1997 | 51168245906 | $38.02 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle front - ITS | HELLBEIGE | 2 | 09/1997 | 51168245905 | $38.02 | +core | Shop at ECS Tuning | ||
| 07 | Handle front - ITS | HELLGRAU | 2 | 09/1997 | 51168245894 | $38.02 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle rear left - ITS | SCHWARZ | 1 | 09/1997 | 51168245909 | $38.02 | +core | Shop at ECS Tuning | ||
| 07 | Handle, rear right - ITS | SCHWARZ | 1 | 09/1997 | 51168245910 | $38.02 | Shop at ECS Tuning | |||
| 07 | Handle rear left - ITS | HELLGRAU | 1 | 09/1997 | 51168245911 | $38.02 | Shop at ECS Tuning | |||
| 07 | Handle, rear right - ITS | HELLGRAU | 1 | 09/1997 | 51168245912 | $38.02 | +core | Shop at ECS Tuning | ||
| 07 | Handle rear left - ITS | HELLBEIGE | 1 | 09/1997 | 51168245913 | $38.02 | +core | Shop at ECS Tuning | ||
| 07 | Handle, rear right - ITS | HELLBEIGE | 1 | 09/1997 | 51168245914 | $38.02 | ENDED, +core | Shop at ECS Tuning | ||
| 08 | Fillister head self-tapping screw | ST4,8X19 | 8 | 07119907790 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Handle hook | SCHWARZ | 2 | 51162236798 | $0.86 | Shop at ECS Tuning | ||||
| 09 | Handle hook | HELLGRAU | 2 | 51168175015 | $0.79 | Shop at ECS Tuning | ||||
| 09 | Handle hook | SANDBEIGE | 2 | 51168175016 | $0.79 | Shop at ECS Tuning | ||||
| 10 | Frame sliding-lifting roof | 1 | 54128174073 | $27.27 | Shop at ECS Tuning | |||||
| 11 | Torx-countersunk head screw | ISA L=9.5MM | X | 54128169957 | $0.29 | Shop at ECS Tuning | ||||
| 12 | Clamp | 2 | 54138120576 | $1.84 | Shop at ECS Tuning | |||||
| 14 | Cover f ultrasonic burglar alarm | GRAU | 1 | 03/1998 | 51448249971 | $55.40 | Shop at ECS Tuning | |||
| 14 | Cover f ultrasonic burglar alarm | SANDBEIGE | 1 | 03/1998 | 51448249972 | $55.40 | Shop at ECS Tuning | |||
| 14 | Cover f ultrasonic burglar alarm | SCHWARZ | 1 | 03/1998 | 51448249973 | $55.40 | Shop at ECS Tuning | |||
| 16 | Bracket f ultrasonic module top | 1 | 51448249978 | $5.42 | ENDED | Shop at ECS Tuning | ||||
| 17 | Bracket f ultrasonic module bottom | 1 | 51448243665 | $5.33 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Hands-free telephone and Lift-up-and-slide-back sunroof |
=Yes =Yes |
|||||||||
| 18 | Cover, microphone | SCHWARZ | 1 | 03/1998 | 51448250108 | $4.29 | Shop at ECS Tuning | |||
| 19 | Cover Loudspeaker | SCHWARZ | 2 | 09/2002 | 51442253012 | $17.40 | Shop at ECS Tuning | |||
| 19 | Cover Loudspeaker | HELLGRAU | 2 | 09/2002 | 51448222127 | $17.19 | ENDED | Shop at ECS Tuning | ||
| 19 | Cover Loudspeaker | SANDBEIGE | 2 | 09/2002 | 51448222128 | $17.19 | Shop at ECS Tuning | |||
| 20 | Clamp | 8 | 51448181426 | $0.61 | Shop at ECS Tuning | |||||
| 21 | Holder | 3 | 51438183314 | $0.82 | Shop at ECS Tuning | |||||
| 22 | Clip | X | 09/2002 | 51437194187 | $1.98 | Shop at ECS Tuning | ||||
| 23 | Front handle base - ITS | 2 | 51168235089 | $3.87 | ENDED | Shop at ECS Tuning | ||||
| 23 | Grab handle pad, rear left - ITS | 1 | 51168244967 | $0.94 | ENDED | Shop at ECS Tuning | ||||
| 23 | Grab handle pad, rear right - ITS | 1 | 51168244968 | $0.94 | ENDED | Shop at ECS Tuning | ||||
| Suitable for coat hook only | ||||||||||
| 23 | Grab handle pad, rear left - ITS | 1 | 51168246453 | $0.94 | ENDED | Shop at ECS Tuning | ||||
| 23 | Grab handle pad, rear right - ITS | 1 | 51168246454 | $0.94 | ENDED | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
