Storing partition mounting parts for BMW 3 Series E36 M3 (1995)

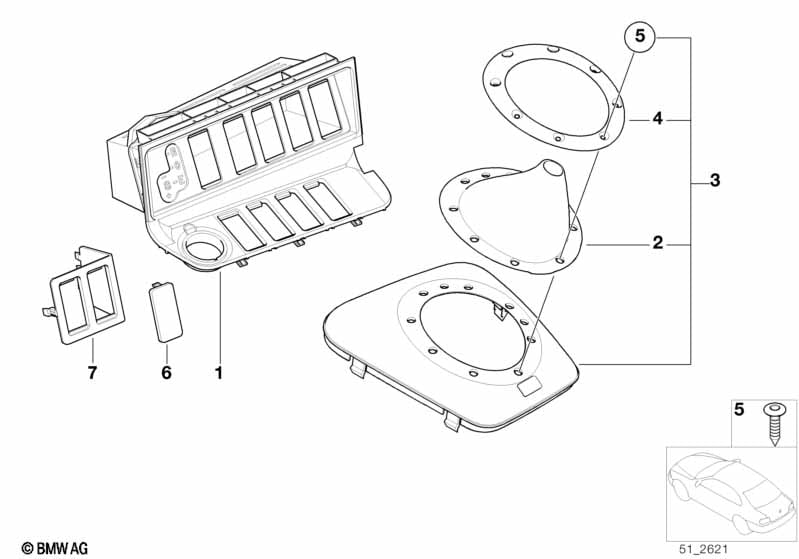

This Storing partition mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with sequential M-gearbox |
=Yes |
|||||||||
| 01 | Insert | 1 | 51162492263 | $239.94 | ENDED | Shop at ECS Tuning | ||||
| 02 | Leather boot | SCHWARZ | 1 | 51162492490 | $52.73 | Shop at ECS Tuning | ||||
| 03 | Cover, gear selecting lever | SCHWARZ | 1 | 51162492488 | $107.56 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim ring | 1 | 51162491221 | $25.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Csk.fillister head srew | 8 | 51162492269 | $0.30 | Shop at ECS Tuning | |||||
| 06 | Cover | SCHWARZ | 4 | 51161963979 | $1.54 | Shop at ECS Tuning | ||||
| 07 | Switch cover | 1 | 51168130822 | $5.63 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
