Extending cargo cover/partition net for BMW 5 Series E39 528i (1998)

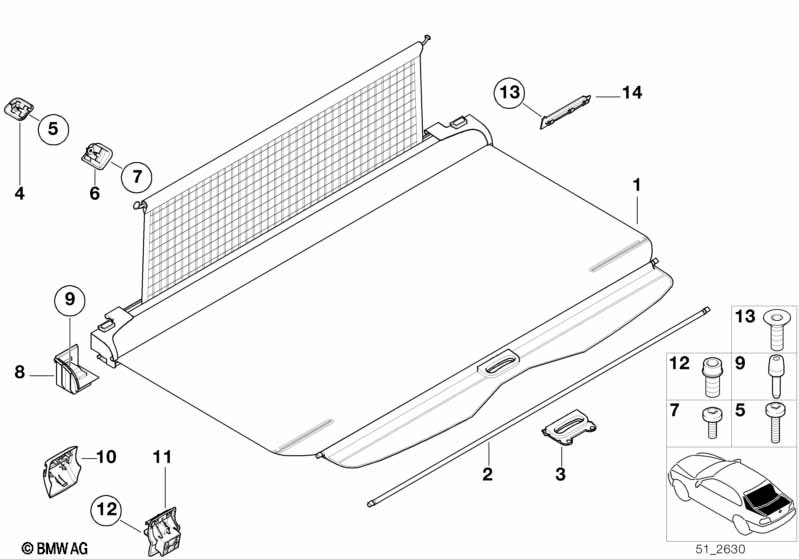

This Extending cargo cover/partition net technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | combination roller blind ITS | SCHWARZ | 1 | 09/1997 | 51478236357 | $828.91 | ENDED | Shop at ECS Tuning | ||
| 01 | combination roller blind ITS | GRAU | 1 | 09/1997 | 51478236358 | $828.91 | Shop at ECS Tuning | |||
| 01 | combination roller blind ITS | MARINEBLAU | 1 | 09/1997 | 51478236359 | $697.50 | ENDED | Shop at ECS Tuning | ||
| 01 | combination roller blind ITS | DUNKELGRUEN | 1 | 09/1997 | 51478236360 | $697.50 | ENDED | Shop at ECS Tuning | ||
| 01 | combination roller blind ITS | SANDBEIGE | 1 | 09/1997 | 51478236361 | $828.91 | Shop at ECS Tuning | |||
| 02 | Roller blind pull-out bar | 1 | 51477009055 | $17.14 | ENDED | Shop at ECS Tuning | ||||
| 03 | Roller blind handle | SCHWARZ | 1 | 51478235761 | $22.20 | Shop at ECS Tuning | ||||
| 04 | hook, front left - ITS | ANTHRAZIT | 1 | 09/1997 | 51472497579 | $12.12 | Shop at ECS Tuning | |||
| 04 | hook, front right - ITS | ANTHRAZIT | 1 | 09/1997 | 51472497580 | $12.12 | Shop at ECS Tuning | |||
| 04 | hook, front left - ITS | HELLGRAU | 1 | 09/1997 | 51478236401 | $12.12 | ENDED | Shop at ECS Tuning | ||
| 04 | hook, front right - ITS | HELLGRAU | 1 | 09/1997 | 51478236402 | $12.12 | ENDED | Shop at ECS Tuning | ||
| 04 | hook, front left - ITS | SANDBEIGE | 1 | 09/1997 | 51478236403 | $12.12 | ENDED | Shop at ECS Tuning | ||
| 04 | hook, front right - ITS | SANDBEIGE | 1 | 09/1997 | 51478236404 | $12.12 | ENDED | Shop at ECS Tuning | ||
| 05 | Fillister head screw | M6X25-SW | 2 | 07119907997 | $0.71 | Shop at ECS Tuning | ||||
| 06 | hook, rear left - ITS | ANTHRAZIT | 1 | 09/1997 | 51472497581 | $12.12 | Shop at ECS Tuning | |||
| 06 | hook, rear right - ITS | ANTHRAZIT | 1 | 09/1997 | 51472497582 | $12.12 | Shop at ECS Tuning | |||
| 07 | Torx bolt | ISA M6X16 | 2 | 41352290799 | $1.10 | Shop at ECS Tuning | ||||
| 09 | Torx bolt | M5X19 | 4 | 07143450893 | $0.86 | Shop at ECS Tuning | ||||
| 10 | Cover f roller cover support | SCHWARZ | 1 | 51478217252 | $8.04 | Shop at ECS Tuning | ||||
| 10 | Cover f roller cover support | GRAU | 1 | 51478217258 | $8.04 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover f roller cover support | MARINEBLAU | 1 | 51478217259 | $7.95 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover f roller cover support | DUNKELGRÜN | 1 | 51478217260 | $7.95 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover f roller cover support | SANDBEIGE | 1 | 51478217261 | $8.04 | Shop at ECS Tuning | ||||
| 11 | Floor support f roller blind | SCHWARZ | 2 | 51478217304 | $30.48 | ENDED | Shop at ECS Tuning | |||
| 12 | Fillister head with washer | M6X20-SB-Z1-8.8 | 4 | 07119900514 | $1.93 | Shop at ECS Tuning | ||||
| 13 | Countersunk head screw | 6 | 51478235983 | $0.89 | Shop at ECS Tuning | |||||
| 14 | Left adapter rail | 1 | 51478235763 | $23.44 | ENDED, +core | Shop at ECS Tuning | ||||
| 14 | Right adapter rail | 1 | 51478235764 | +core | Shop at ECS Tuning |
