Trim panel, trunk floor for BMW 5 Series E39 528i (2000)

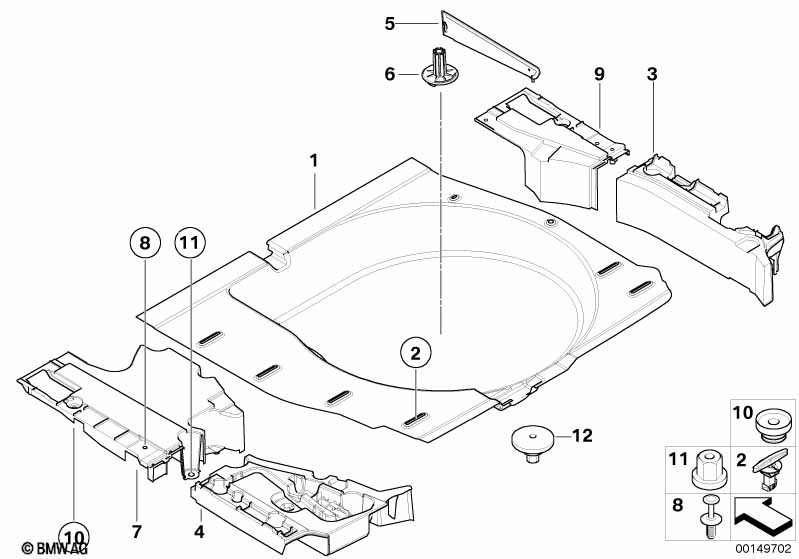

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Luggage comp.indentation trim panel | 1 | 51478189705 | $195.68 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Pull-out loading floor |
=Yes |
|||||||||
| 01 | Luggage comp.indentation trim panel | 1 | 51478220068 | $257.79 | Shop at ECS Tuning | |||||
| 02 | Lock | SCHWARZ | 2 | 51478120281 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Pad floor carpet, right rear | SCHWARZ | 1 | 51478185238 | $18.39 | Shop at ECS Tuning | ||||
| 04 | Pad floor carpet, left rear | SCHWARZ | 1 | 51478187269 | $13.31 | ENDED | Shop at ECS Tuning | |||
| 05 | Luggage comp.indentation partition | SCHWARZ | 1 | 51478208731 | $5.54 | Shop at ECS Tuning | ||||
| 06 | Partition support,luggage comp.indentat. | SCHWARZ | 1 | 51478208732 | $5.60 | Shop at ECS Tuning | ||||
| 07 | Pad floor carpet, left front | SCHWARZ | 1 | 51478185237 | $18.39 | Shop at ECS Tuning | ||||
| 08 | Expanding rivet | D = 8MM | 6 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Pad floor carpet, right front | SCHWARZ | 1 | 51478187268 | $13.28 | Shop at ECS Tuning | ||||
| 10 | Rubber buffer | 5 | 51478144588 | $1.27 | Shop at ECS Tuning | |||||
| 11 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 12 | Pad | H=19.5MM | 1 | 51471960706 | $2.05 | Shop at ECS Tuning | ||||
