Sealing cap/plug for BMW 5 Series E39 525i (2003)

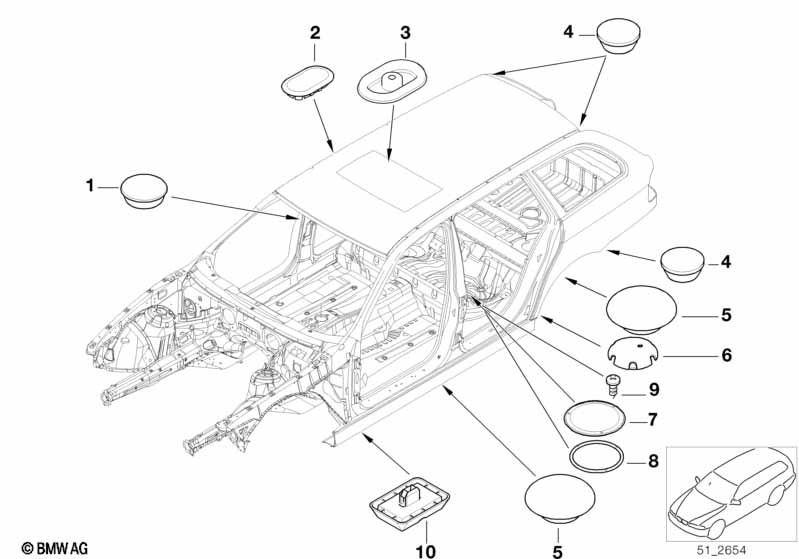

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = hole-circle diameter in the body |
|||||||||
| 01 | Blind plug | D=25MM | 4 | 51718126605 | $0.39 | Shop at ECS Tuning | ||||
| 02 | Blind plug | D=18X36MM | 2 | 51718233416 | $0.56 | Shop at ECS Tuning | ||||
| 03 | Blind plug | D=25X45MM | 2 | 51718226005 | $0.79 | Shop at ECS Tuning | ||||
| 04 | Blind plug | D=12MM | 4 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Blind plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 05 | Blind plug | D=17MM | 1 | 51221924979 | $1.10 | Shop at ECS Tuning | ||||
| 06 | Blind plug | D=20MM | 2 | 51718174490 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Cover lid | 2 | 51718191200 | $2.58 | Shop at ECS Tuning | |||||
| 08 | Gasket | 2 | 51718191201 | $0.97 | Shop at ECS Tuning | |||||
| 09 | Fillister head self-tapping screw | ST4,8X13 | 6 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Support lifting platform | 4 | 51717001650 | $14.75 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
