Door trim, rear for BMW 7 Series E32 740iL (1994)

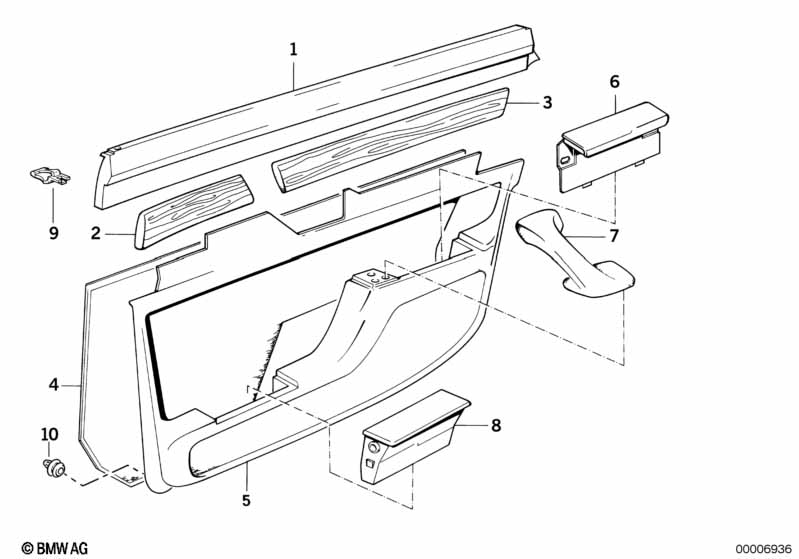

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lining top rear left | SCHWARZ | 1 | 51421951701 | $275.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining top rear right | SCHWARZ | 1 | 51421951702 | $209.81 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining top rear left | SILBERGRAU | 1 | 09/1990 | 51428136807 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining top rear right | SILBERGRAU | 1 | 09/1990 | 51428136808 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining top rear left | ULTRAMARIN | 1 | 09/1990 | 51428136809 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining top rear right | ULTRAMARIN | 1 | 09/1990 | 51428136810 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining top rear left | PERGAMENT | 1 | 09/1990 | 51428136811 | $209.81 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top rear right | PERGAMENT | 1 | 09/1990 | 51428136812 | $216.50 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun shield |
=Yes |
|||||||||
| 01 | Door lining top rear left | SCHWARZ | 1 | 51428101217 | $275.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining top rear right | SCHWARZ | 1 | 51428101218 | $275.35 | Shop at ECS Tuning | ||||
| 01 | Door lining top rear left | SILBERGRAU | 1 | 09/1990 | 51428139149 | $275.35 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top rear right | SILBERGRAU | 1 | 09/1990 | 51428139150 | $275.35 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top rear left | ULTRAMARIN | 1 | 09/1990 | 51428139151 | $251.10 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top rear right | ULTRAMARIN | 1 | 09/1990 | 51428139152 | $251.10 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top rear left | PERGAMENT | 1 | 09/1990 | 51428139153 | $251.10 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining top rear right | PERGAMENT | 1 | 09/1990 | 51428139154 | $283.57 | ENDED | Shop at ECS Tuning | ||
| 02 | Wooden cover front left | BUBINGA | 1 | 51421951147 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wooden cover front right | BUBINGA | 1 | 51421951148 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wooden cover front left | NUSSBAUM | 1 | 07/1992 | 51428147523 | $225.43 | ENDED | Shop at ECS Tuning | ||
| 02 | Wooden cover front right | NUSSBAUM | 1 | 07/1992 | 51428147524 | $225.43 | ENDED | Shop at ECS Tuning | ||
| 03 | Wooden cover rear left | BUBINGA | 1 | 51421951149 | $137.27 | ENDED | Shop at ECS Tuning | |||
| 03 | Wooden cover rear right | BUBINGA | 1 | 51421951150 | $152.76 | ENDED | Shop at ECS Tuning | |||
| 03 | Wooden cover rear left | NUSSBAUM | 1 | 07/1992 | 51428147527 | $247.75 | ENDED | Shop at ECS Tuning | ||
| 03 | Wooden cover rear right | NUSSBAUM | 1 | 07/1992 | 51428147528 | $433.01 | ENDED | Shop at ECS Tuning | ||
| 04 | Door lining vynil rear left | SCHWARZ | 1 | 51421951773 | $227.97 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining vynil rear right | SCHWARZ | 1 | 51421951774 | $145.08 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining vynil rear left | SILBERGRAU HELL | 1 | 09/1990 | 51428139061 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining vynil rear right | SILBERGRAU HELL | 1 | 09/1990 | 51428139062 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining vynil rear left | ULTRAMARIN | 1 | 09/1990 | 51428139063 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining vynil rear right | ULTRAMARIN | 1 | 09/1990 | 51428139064 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining vynil rear left | PERGAMENT | 1 | 09/1990 | 51428139065 | $145.08 | ENDED | Shop at ECS Tuning | ||
| 04 | Door lining vynil rear right | PERGAMENT | 1 | 09/1990 | 51428139066 | $145.08 | ENDED | Shop at ECS Tuning | ||
| 04 | Door lining vynil rear left | SILBERGRAU | 1 | 09/1991 | 51428147697 | $145.08 | ENDED | Shop at ECS Tuning | ||
| 04 | Door lining vynil rear right | SILBERGRAU | 1 | 09/1991 | 51428147698 | $145.08 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 04 | Door lining leather rear left | ANTHRAZIT | 1 | 09/1990 | 51428139081 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining leather rear right | ANTHRAZIT | 1 | 09/1990 | 51428139082 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Walknappa and Electr. window lifter, front |
=Yes =Yes |
|||||||||
| 04 | Door lining leather rear left | 0232 SCHWARZ | 1 | 51421964405 | $395.89 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining leather rear right | 0232 SCHWARZ | 1 | 51421964406 | $265.61 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining leather rear left | KARMESINROT | 1 | 09/1988 | 51428113749 | $265.61 | ENDED | Shop at ECS Tuning | ||
| 04 | Door lining leather rear right | 0323KARMESINROT | 1 | 09/1988 | 51428113750 | $265.61 | ENDED | Shop at ECS Tuning | ||
| 04 | Door lining leather rear left | SILBERGRAU HELL | 1 | 09/1990 | 51428139071 | $265.61 | ENDED | Shop at ECS Tuning | ||
| 04 | Door lining leather rear right | SILBERGRAU HELL | 1 | 09/1990 | 51428139072 | $265.61 | ENDED | Shop at ECS Tuning | ||
| 04 | Door lining leather rear left | ULTRAMARIN | 1 | 09/1990 | 51428139073 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining leather rear right | ULTRAMARIN | 1 | 09/1990 | 51428139074 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining leather rear left | PERGAMENT | 1 | 09/1990 | 51428139075 | $265.61 | ENDED | Shop at ECS Tuning | ||
| 04 | Door lining leather rear right | PERGAMENT | 1 | 09/1990 | 51428139076 | $265.61 | ENDED | Shop at ECS Tuning | ||
| 04 | Door lining leather rear left | PERGAMENT HELL | 1 | 09/1990 | 51428139077 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining leather rear right | PERGAMENT HELL | 1 | 09/1990 | 51428139078 | ENDED | Shop at ECS Tuning | |||
| 04 | Door lining leather rear left | SILBERGRAU | 1 | 09/1991 | 51428147781 | $265.61 | ENDED | Shop at ECS Tuning | ||
| 04 | Door lining leather rear right | SILBERGRAU | 1 | 09/1991 | 51428147782 | $265.61 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth version |
=Yes |
|||||||||
| 05 | Door trim panel, rear, left | SILBERGRAU | 1 | 09/1990 | 51428136815 | $434.12 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, right | SILBERGRAU | 1 | 09/1990 | 51428136816 | $434.12 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, left | ULTRAMARIN | 1 | 09/1990 | 51428136817 | $434.12 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, right | ULTRAMARIN | 1 | 09/1990 | 51428136818 | $434.12 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, left | PERGAMENT | 1 | 09/1990 | 51428136819 | $434.12 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, right | PERGAMENT | 1 | 09/1990 | 51428136820 | $353.77 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, left | ANTHRAZIT`91 | 1 | 09/1990 | 51428139759 | $434.12 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, right | ANTHRAZIT`91 | 1 | 09/1990 | 51428139760 | $434.12 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Vinyl version only applies to footwell lamp |
=Yes |
|||||||||
| 05 | Door trim panel, rear, left | SCHWARZ | 1 | 51421954829 | $353.77 | ENDED | Shop at ECS Tuning | |||
| 05 | Door trim panel, rear, right | SCHWARZ | 1 | 51421954830 | $353.77 | ENDED | Shop at ECS Tuning | |||
| 05 | Door trim panel, rear, left | SILBERGRAU HELL | 1 | 09/1990 | 51428136823 | $353.77 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, right | SILBERGRAU HELL | 1 | 09/1990 | 51428136824 | $353.77 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, left | ULTRAMARIN | 1 | 09/1990 | 51428136825 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, right | ULTRAMARIN | 1 | 09/1990 | 51428136826 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, left | PERGAMENT | 1 | 09/1990 | 51428136827 | $353.77 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, right | PERGAMENT | 1 | 09/1990 | 51428136828 | $353.77 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, left | SILBERGRAU | 1 | 09/1991 | 51428147685 | $515.59 | ENDED | Shop at ECS Tuning | ||
| 05 | Door trim panel, rear, right | SILBERGRAU | 1 | 09/1991 | 51428147686 | $353.77 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 05 | Door lining leather rear left | ANTHRAZIT | 1 | 09/1990 | 51428136843 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 05 | Door lining leather rear right | ANTHRAZIT | 1 | 09/1990 | 51428136844 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Covering left | 1 | 09/1990 | 51421954791 | $3.29 | ENDED | Shop at ECS Tuning | |||
| -- | Covering right | 1 | 09/1990 | 51421954792 | $3.29 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Walknappa and Electr. window lifter, front |
=Yes =Yes |
|||||||||
| 05 | Door lining leather rear left | 0232 SCHWARZ | 1 | 51421964495 | $1544.14 | ENDED | Shop at ECS Tuning | |||
| 05 | Door lining leather rear right | 0232 SCHWARZ | 1 | 51421964496 | $806.31 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Covering left | 1 | 51421954791 | $3.29 | ENDED | Shop at ECS Tuning | ||||
| -- | Covering right | 1 | 51421954792 | $3.29 | ENDED | Shop at ECS Tuning | ||||
| 05 | Door lining leather rear left | KARMESINROT | 1 | 09/1988 | 51428113757 | $806.31 | ENDED | Shop at ECS Tuning | ||
| 05 | Door lining leather rear right | 0323KARMESINROT | 1 | 09/1988 | 51428113758 | $806.31 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Covering left | 1 | 09/1988 | 51421954791 | $3.29 | ENDED | Shop at ECS Tuning | |||
| -- | Covering right | 1 | 09/1988 | 51421954792 | $3.29 | ENDED | Shop at ECS Tuning | |||
| 05 | Door lining leather rear left | SILBERGRAU HELL | 1 | 09/1990 | 51428136833 | $806.31 | ENDED | Shop at ECS Tuning | ||
| 05 | Door lining leather rear left | ULTRAMARIN | 1 | 09/1990 | 51428136835 | $806.31 | ENDED | Shop at ECS Tuning | ||
| 05 | Door lining leather rear left | PERGAMENT | 1 | 09/1990 | 51428136837 | $806.31 | ENDED | Shop at ECS Tuning | ||
| 05 | Door lining leather rear left | PERGAMENT HELL | 1 | 09/1990 | 51428136839 | $806.31 | ENDED | Shop at ECS Tuning | ||
| 05 | Door lining leather rear right | SILBERGRAU HELL | 1 | 09/1990 | 51428136834 | $806.31 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 05 | Door lining leather rear right | ULTRAMARIN | 1 | 09/1990 | 51428136836 | $806.31 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 05 | Door lining leather rear right | PERGAMENT | 1 | 09/1990 | 51428136838 | $806.31 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 05 | Door lining leather rear right | PERGAMENT HELL | 1 | 09/1990 | 51428136840 | $806.31 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Covering left | 1 | 09/1990 | 51421954791 | $3.29 | ENDED | Shop at ECS Tuning | |||
| -- | Covering right | 1 | 09/1990 | 51421954792 | $3.29 | ENDED | Shop at ECS Tuning | |||
| 05 | Door lining leather rear left | SILBERGRAU | 1 | 09/1991 | 51428147687 | $773.14 | ENDED | Shop at ECS Tuning | ||
| 05 | Door lining leather rear right | SILBERGRAU | 1 | 09/1991 | 51428147688 | $806.31 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Covering left | 1 | 09/1991 | 51421954791 | $3.29 | ENDED | Shop at ECS Tuning | |||
| -- | Covering right | 1 | 09/1991 | 51421954792 | $3.29 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 06 | Cover left | ANTHRAZIT`91 | 1 | 09/1990 | 51428139113 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover right | ANTHRAZIT`91 | 1 | 09/1990 | 51428139114 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version or Vinyl version |
=Yes =Yes |
|||||||||
| 06 | Cover left | ANTHRAZIT | 1 | 51421951737 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover right | ANTHRAZIT | 1 | 51421951738 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover left | SILBERGRAU | 1 | 09/1990 | 51428139085 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover right | SILBERGRAU | 1 | 09/1990 | 51428139086 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover left | ULTRAMARIN | 1 | 09/1990 | 51428139087 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover right | ULTRAMARIN | 1 | 09/1990 | 51428139088 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover left | PERGAMENT | 1 | 09/1990 | 51428139089 | $83.14 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover right | PERGAMENT | 1 | 09/1990 | 51428139090 | $57.20 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover left | SILBERGRAU HELL | 1 | 09/1990 | 51428139959 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover right | SILBERGRAU HELL | 1 | 09/1990 | 51428139960 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Walknappa and Electr. window lifter, front |
=Yes =Yes |
|||||||||
| 06 | Cover left | 0232 SCHWARZ | 1 | 51421964427 | $162.01 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover right | 0232 SCHWARZ | 1 | 51421964428 | $172.66 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover left | 0323 KARMESINRO | 1 | 09/1988 | 51428113751 | $109.93 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover right | 0323KARMESINROT | 1 | 09/1988 | 51428113752 | $109.93 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover left | SILBERGRAU HELL | 1 | 09/1990 | 51428139103 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover right | SILBERGRAU HELL | 1 | 09/1990 | 51428139104 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover left | ULTRAMARIN | 1 | 09/1990 | 51428139105 | $109.93 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover right | ULTRAMARIN | 1 | 09/1990 | 51428139106 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover left | PERGAMENT | 1 | 09/1990 | 51428139107 | $174.10 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover right | PERGAMENT | 1 | 09/1990 | 51428139108 | $174.10 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover left | PERGAMENT HELL | 1 | 09/1990 | 51428139109 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover right | PERGAMENT HELL | 1 | 09/1990 | 51428139110 | $109.93 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover left | SILBERGRAU | 1 | 09/1991 | 51428147783 | $150.66 | ENDED | Shop at ECS Tuning | ||
| 06 | Cover right | SILBERGRAU | 1 | 09/1991 | 51428147784 | $150.66 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 07 | Handle left | ANTHRAZIT | 1 | 09/1990 | 51428136719 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle right | ANTHRAZIT | 1 | 09/1990 | 51428136720 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version or Vinyl version |
=Yes =Yes |
|||||||||
| 07 | Handle left | SCHWARZ | 1 | 51421949079 | $60.82 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle right | SCHWARZ | 1 | 51421949080 | $60.82 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle left | SILBERGRAU | 1 | 09/1990 | 51428136699 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle right | SILBERGRAU | 1 | 09/1990 | 51428136700 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle left | ULTRAMARIN | 1 | 09/1990 | 51428136701 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle right | ULTRAMARIN | 1 | 09/1990 | 51428136702 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle left | PERGAMENT | 1 | 09/1990 | 51428136703 | $60.82 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle right | PERGAMENT | 1 | 09/1990 | 51428136704 | $60.82 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle left | SILBERGRAU HELL | 1 | 09/1990 | 51428139953 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle right | SILBERGRAU HELL | 1 | 09/1990 | 51428139954 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Walknappa and Electr. window lifter, front |
=Yes =Yes |
|||||||||
| 07 | Handle left | 0232 SCHWARZ | 1 | 51421949419 | $220.70 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle right | 0232 SCHWARZ | 1 | 51421949420 | $229.90 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle left | 0323KARMESINROT | 1 | 09/1988 | 51428113733 | $208.69 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle right | 0323KARMESINROT | 1 | 09/1988 | 51428113734 | $208.69 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle left | SILBERGRAU HELL | 1 | 09/1990 | 51428136709 | $227.29 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle right | SILBERGRAU HELL | 1 | 09/1990 | 51428136710 | $208.69 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle left | ULTRAMARIN | 1 | 09/1990 | 51428136711 | $229.90 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle right | ULTRAMARIN | 1 | 09/1990 | 51428136712 | $229.90 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle left | PERGAMENT | 1 | 09/1990 | 51428136713 | $208.69 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle right | PERGAMENT | 1 | 09/1990 | 51428136714 | $229.90 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle left | PERGAMENT HELL | 1 | 09/1990 | 51428136715 | $208.69 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle right | PERGAMENT HELL | 1 | 09/1990 | 51428136716 | $208.69 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle left | SILBERGRAU | 1 | 09/1991 | 51428147673 | $208.69 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle right | SILBERGRAU | 1 | 09/1991 | 51428147674 | $208.69 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 08 | Ashtray | ANTHRAZIT`91 | 2 | 09/1990 | 51168141860 | $143.96 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth version or Vinyl version |
=Yes =Yes |
|||||||||
| 08 | Ashtray | SCHWARZ | 2 | 51161949987 | $45.76 | ENDED | Shop at ECS Tuning | |||
| 08 | Ashtray | SILBERGRAU | 2 | 09/1990 | 51168141809 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Ashtray | SILBERGRAU HELL | 2 | 09/1990 | 51168141850 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Ashtray | ULTRAMARIN | 2 | 09/1990 | 51168141851 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Ashtray | PERGAMENT | 2 | 09/1990 | 51168141852 | $75.05 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather trim Walknappa and Electr. window lifter, front |
=Yes =Yes |
|||||||||
| 08 | Ashtray | 0232 SCHWARZ | 2 | 51161954803 | $146.42 | ENDED | Shop at ECS Tuning | |||
| 08 | Ashtray | 0323 KARMESINRO | 2 | 09/1988 | 51168113692 | $123.88 | ENDED | Shop at ECS Tuning | ||
| 08 | Ashtray | PERGAMENT HELL | 2 | 09/1990 | 51168141854 | $138.04 | ENDED | Shop at ECS Tuning | ||
| 08 | Ashtray | PERGAMENT | 2 | 09/1990 | 51168141857 | $123.88 | ENDED | Shop at ECS Tuning | ||
| 08 | Ashtray | SILBERGRAU | 2 | 09/1991 | 51168147716 | $123.88 | ENDED | Shop at ECS Tuning | ||
| 09 | Clamp | X | 51411908855 | $0.61 | Shop at ECS Tuning | |||||
| 10 | Clamp | X | 51411870718 | $0.24 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 740iL Door trim, rear?
- This technical diagram illustrates the Door trim, rear within the Vehicle trim group for the 7 Series E32 740iL produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Door lining top rear left (Part #51421951701).
- Which models use the hardware listed in this Door trim, rear?
- The hardware and components featured in the Door trim, rear are specific to the 7 Series E32 740iL produced during 1994. These technical specifications ensure that parts like the Door lining top rear left (51421951701) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim, rear assembly?
- Each item in the Door trim, rear corresponds to the numbered list below the illustration. For the 7 Series E32 740iL, you can identify the Door lining top rear left by locating its position on the schematic, which then links to the official BMW part number 51421951701 for the Vehicle trim section.
