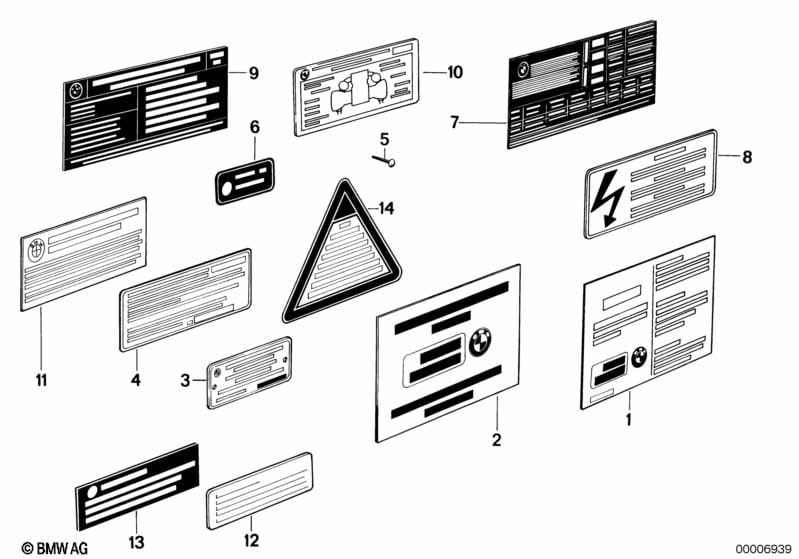

Type plate / notice label for BMW R45-R65LS..78-85 R65 (1985)
This Type plate / notice label technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Label "original BMW teile" | 1 | 51142121174 | $0.68 | Shop at ECS Tuning | |||||
| 04 | Type plate | 1 | 04/1981 | 51142301483 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rivet | 3,2 | 2 | 09/1981 | 51142301598 | $0.55 | Shop at ECS Tuning | |||
| For vehicles with National version Great Britain |
Y736A=Yes |
|||||||||
| 07 | Label "tire pressure" | 1 | 46631238808 | ENDED | Shop at ECS Tuning | |||||
| 08 | Label "transistorized ignition" | 1 | 71212122014 | $1.27 | Shop at ECS Tuning | |||||
| 09 | Label | ABGAS | 1 | 06/1983 | 51141337809 | $10.08 | ENDED | Shop at ECS Tuning | ||
| 09 | Label | ABGAS 85 | 1 | 09/1984 | 51141338132 | ENDED | Shop at ECS Tuning | |||
| 11 | Label | 83DBA | 1 | 09/1982 | 51142302191 | ENDED | Shop at ECS Tuning | |||
| 11 | Label | 83DBA | 1 | 06/1983 | 51142302195 | ENDED | Shop at ECS Tuning | |||
| 11 | Label | 83DBA | 1 | 09/1984 | 51141454712 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Canada |
Y732A=Yes |
|||||||||
| 12 | Label "tire pressure" | 1 | 09/1982 | 51142301488 | ENDED | Shop at ECS Tuning | ||||
| 13 | Label "Warranty" | USA | 1 | 51141240121 | $3.52 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
