Center console for BMW 5 Series E34 525tds (1996)

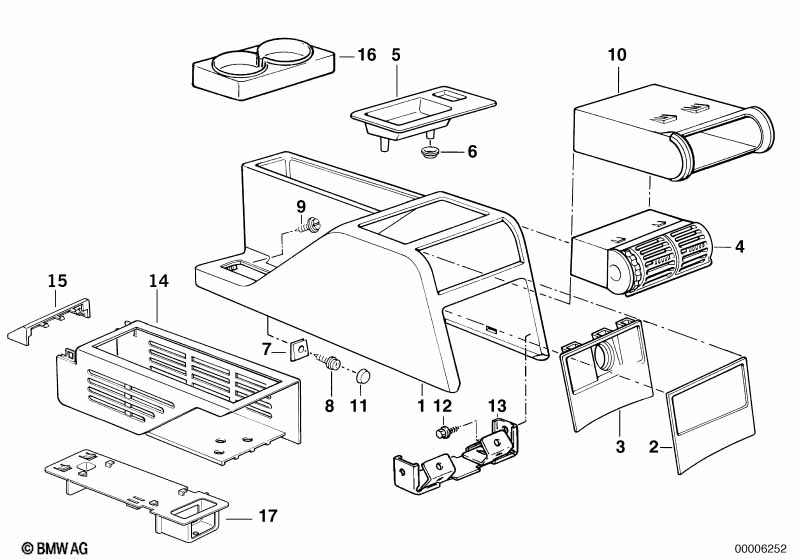

This Center console technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Console | SILBERGRAU | 1 | 51168138117 | ENDED | Shop at ECS Tuning | ||||
| 01 | Console | ULTRAMARIN | 1 | 51168138118 | ENDED | Shop at ECS Tuning | ||||
| 01 | Console | PERGAMENT | 1 | 51168138119 | ENDED | Shop at ECS Tuning | ||||
| 01 | Console | SILBERGRAU HELL | 1 | 51168138462 | ENDED | Shop at ECS Tuning | ||||
| 01 | Console | SCHWARZ | 1 | 51168181945 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cover | 1 | 51161946193 | $5.70 | Shop at ECS Tuning | |||||
| 03 | Cover | 1 | 51161946190 | $5.70 | Shop at ECS Tuning | |||||
| 04 | Fresh air grille rear room electr. | 1 | 64221375561 | $284.45 | Shop at ECS Tuning | |||||
| 07 | Body nut | ST4,2-2ZNS | 1 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Sheet metal screw | ST4,2X13 | 1 | 51161948970 | $0.33 | ENDED | Shop at ECS Tuning | |||
| 09 | Fillister head self-tapping screw | ST4,2X13-Z2 | 1 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Storing partition rear | 1 | 51161946245 | $10.05 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cap | SCHWARZ | 1 | 51161949793 | $0.42 | Shop at ECS Tuning | ||||
| 11 | Cap | SILBERGRAU | 1 | 51168140431 | $0.39 | Shop at ECS Tuning | ||||
| 11 | Cap | SILBERGRAU HELL | 1 | 51168140432 | $0.39 | Shop at ECS Tuning | ||||
| 11 | Cap | ULTRAMARIN | 1 | 51168140433 | $0.39 | Shop at ECS Tuning | ||||
| 11 | Cap | PERGAMENT | 1 | 51168140434 | $0.39 | Shop at ECS Tuning | ||||
| 12 | Hex head screw | ST4,8X16-ZNS3 | 2 | 11/1998 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 12 | Sheet metal screw | ST4,8X16 | 2 | 07119901311 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Support | 1 | 51162237553 | $6.72 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO D-SYSTEM | ||||||||||
| 17 | Eject-box bracket | MOTOROLA D-NETZ | 1 | 51168174085 | $6.05 | ENDED | Shop at ECS Tuning | |||
