Single parts f storing partition, cab for BMW 5 Series E34 525ix (1995)

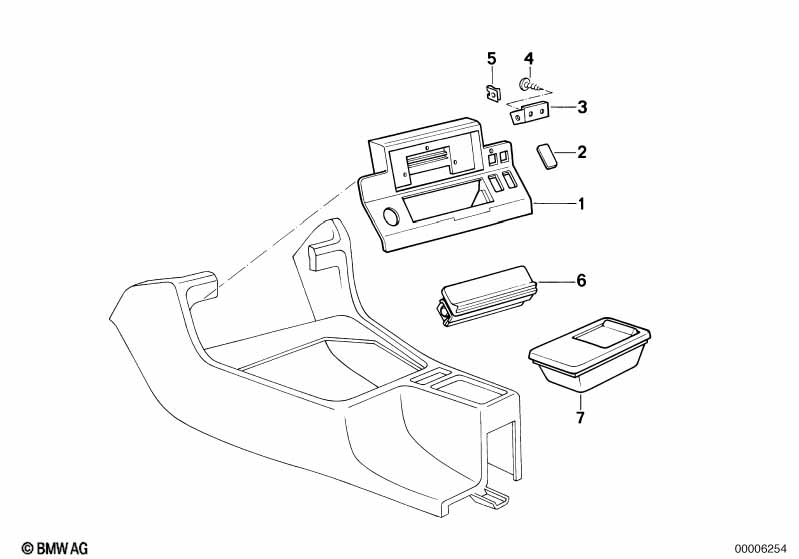

This Single parts f storing partition, cab technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Taxi package |
S581A=Yes |
||||||||
| 01 | Cover | TAXIPAKET | 1 | 51168181100 | Shop at ECS Tuning | |||||
| 02 | Cover | SCHWARZ | 2 | 51161963979 | $1.54 | Shop at ECS Tuning | ||||
| 03 | Support left | TAXI | 1 | 51168181101 | ENDED | Shop at ECS Tuning | ||||
| 03 | Support right | TAXI | 1 | 51168181102 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sheet-metal screw, black | ST4,2X13 | 2 | 07119901268 | $0.44 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST4,2-2 | 2 | 07129904245 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Ashtray front | ANTHRAZIT | 1 | 51161904808 | $73.75 | ENDED | Shop at ECS Tuning | |||
| 07 | Ashtray rear | TAXI | 1 | 51168181114 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
