M Trim, rear for BMW 3 Series E36 325tds (1998)

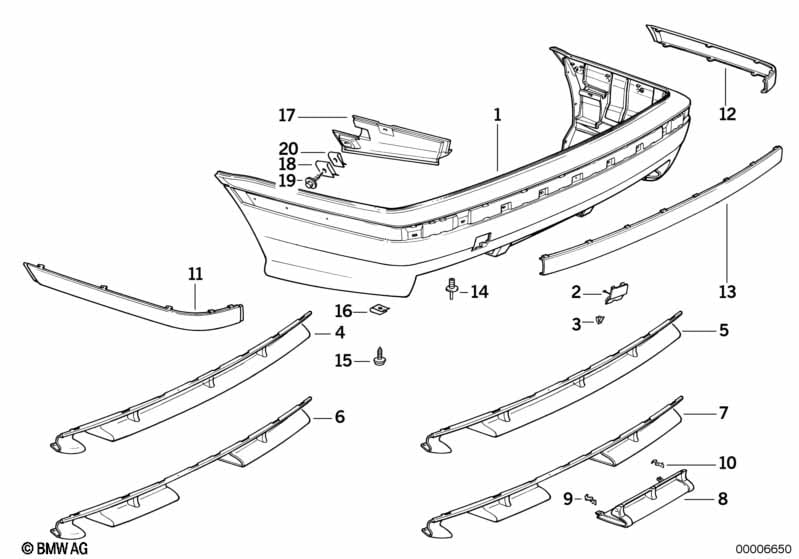

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ALSO FOR M TECH.SPORTS COUPE INDIVIDUAL SERIES 93 |
|||||||||
| 01 | Primed rear apron | M TECHNIC | 1 | 51122235499 | $578.10 | Shop at ECS Tuning | ||||
| 01 | Painted rear apron | CODE - UNI | 1 | 51129066207 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Painted rear apron | CODE - MET. | 1 | 51129066208 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Flap, towing eye, primed | M TECHNIC | 1 | 51122235497 | $8.32 | Shop at ECS Tuning | ||||
| 02 | Flap, towing eye, painted | CODE - UNI | 1 | 51129066209 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Flap, towing eye, painted | CODE - MET. | 1 | 51129066210 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 03 | Fixing clamp | 1 | 51711910956 | $1.37 | Shop at ECS Tuning | |||||
| 05 | Trim panel | M TECHNIC | 1 | 51122233364 | $156.77 | Shop at ECS Tuning | ||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 07 | Trim panel | M TECHNIC | 1 | 51122253201 | $211.65 | Shop at ECS Tuning | ||||
| including item Nr. 8 | ||||||||||
| 08 | Flap | M TECHNIC | 1 | 51122233798 | $75.87 | Shop at ECS Tuning | ||||
| 09 | Fixing clamp left | M TECHNIC | 1 | 51122234977 | $4.98 | Shop at ECS Tuning | ||||
| 10 | Fixing clamp right | M TECHNIC | 1 | 51122234978 | $4.98 | Shop at ECS Tuning | ||||
| 11 | Rubber strip left | 1 | 04/1995 | 51128135487 | $23.13 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control |
=Yes |
|||||||||
| 11 | Rubber strip left | 1 | 04/1995 | 51128206371 | $23.13 | Shop at ECS Tuning | ||||
| 12 | Rubber strip right | 1 | 04/1995 | 51128135488 | $23.13 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control |
=Yes |
|||||||||
| 12 | Rubber strip right | 1 | 04/1995 | 51128206372 | $23.13 | Shop at ECS Tuning | ||||
| 13 | Protective Mouldings | 1 | 04/1995 | 51128146093 | $25.08 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control |
=Yes |
|||||||||
| 13 | Protective Mouldings | 1 | 04/1995 | 51128206375 | $23.13 | Shop at ECS Tuning | ||||
| 14 | Expanding rivet, black | L=15MM | X | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 15 | Hex head screw | ST4,8X13-C-U1-Z | 2 | 07119906128 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Body nut | ST 4,8-8-ZNS | 2 | 07129904227 | $0.27 | Shop at ECS Tuning | ||||
| 17 | Insulating cover | 1 | 51481960722 | $30.88 | Shop at ECS Tuning | |||||
| 18 | Body nut | ST4,8-13-ZNS3 | 4 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 19 | Hex head screw | ST4,8X19-C-Z2 | 4 | 07119916949 | $0.25 | Shop at ECS Tuning | ||||
| 20 | Body nut | ST4.8-1 | 4 | 07129904222 | $0.11 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
