Exterior trim / grill for BMW 3 Series E36 M3 (1999)

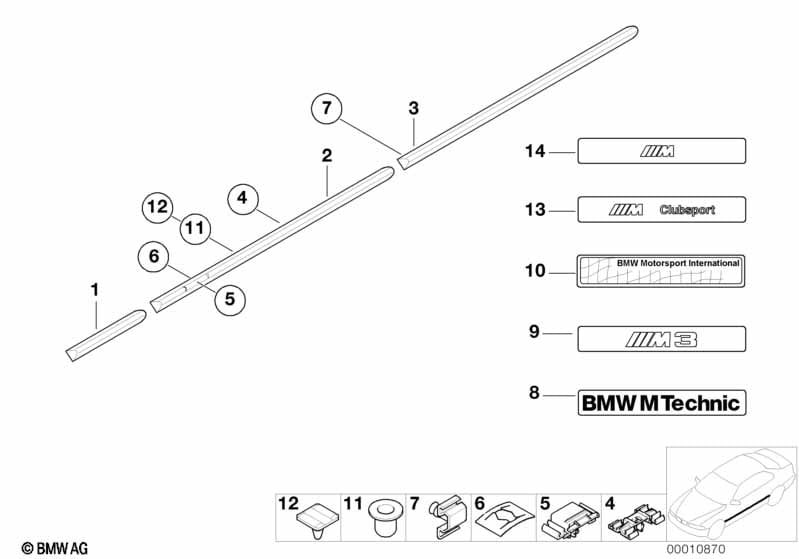

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Sports package or M Aerodynamics package or Comfort Edition or Sports Edition or M Outside mirror |
P337A=Yes S715A=Yes S717A=Yes S719A=Yes S784A=Yes |
|||||||||
| 01 | Moulding fender front left | M TECHNIC | 1 | 51132233685 | $33.64 | Shop at ECS Tuning | ||||
| 01 | Moulding fender front right | M TECHNIC | 1 | 51132233686 | $33.64 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package and Deleted, model lettering and M Aerodynamics package and Comfort Edition and Sports Edition and M Outside mirror |
P337A=Yes S320A=No S715A=Yes S717A=Yes S719A=Yes S784A=Yes |
|||||||||
| 02 | Moulding door front left | M TE. + AUSSPA. | 1 | 51132256787 | $51.78 | Shop at ECS Tuning | ||||
| 02 | Moulding door front right | M TE. + AUSSPA. | 1 | 51132256788 | $51.78 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package or Deleted, model lettering or M Aerodynamics package or Comfort Edition or Sports Edition or M Outside mirror |
P337A=Yes S320A=Yes S715A=Yes S717A=Yes S719A=Yes S784A=Yes |
|||||||||
| 02 | Moulding door front left | M TECHNIC | 1 | 51132253321 | $51.78 | Shop at ECS Tuning | ||||
| 02 | Moulding door front right | M TECHNIC | 1 | 51132253322 | $51.78 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package or M Aerodynamics package or Comfort Edition or Sports Edition or M Outside mirror |
P337A=Yes S715A=Yes S717A=Yes S719A=Yes S784A=Yes |
|||||||||
| 03 | Moulding fender rear left | M TECHNIC | 1 | 51132233689 | $38.81 | Shop at ECS Tuning | ||||
| 03 | Moulding fender rear right | M TECHNIC | 1 | 51132233690 | $38.81 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package and M Aerodynamics package and Comfort Edition and Sports Edition and M Outside mirror |
P337A=No S715A=No S717A=No S719A=No S784A=No |
|||||||||
| 04 | Clamp | X | 51131960054 | $0.82 | Shop at ECS Tuning | |||||
| For vehicles with M Sports package or M Aerodynamics package or Comfort Edition or Sports Edition or M Outside mirror |
P337A=Yes S715A=Yes S717A=Yes S719A=Yes S784A=Yes |
|||||||||
| 05 | Clamp | M TECHNIC | X | 51132251394 | $1.69 | Shop at ECS Tuning | ||||
| 06 | Fuse | M TECHNIC | X | 51132251639 | $0.22 | Shop at ECS Tuning | ||||
| For vehicles with M Sports package and M Aerodynamics package and Comfort Edition and Sports Edition and M Outside mirror |
P337A=No S715A=No S717A=No S719A=No S784A=No |
|||||||||
| 07 | Clamp | X | 51138144998 | $0.85 | Shop at ECS Tuning | |||||
| 09 | Badge | - M3 - | 2 | 51132251381 | $40.13 | Shop at ECS Tuning | ||||
| 11 | Grommet | X | 51131960127 | $0.23 | Shop at ECS Tuning | |||||
| 12 | Plug | WEISS | 2 | 51711929320 | $1.27 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Exterior trim / grill?
- This technical diagram illustrates the Exterior trim / grill within the Vehicle trim group for the 3 Series E36 M3 produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Moulding fender front left (Part #51132233685).
- Which models use the hardware listed in this Exterior trim / grill?
- The hardware and components featured in the Exterior trim / grill are specific to the 3 Series E36 M3 produced during 1999. These technical specifications ensure that parts like the Moulding fender front left (51132233685) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exterior trim / grill assembly?
- Each item in the Exterior trim / grill corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Moulding fender front left by locating its position on the schematic, which then links to the official BMW part number 51132233685 for the Vehicle trim section.
