Trim, decor elements, front for BMW 1 Series F20 LCI 114d (2015)

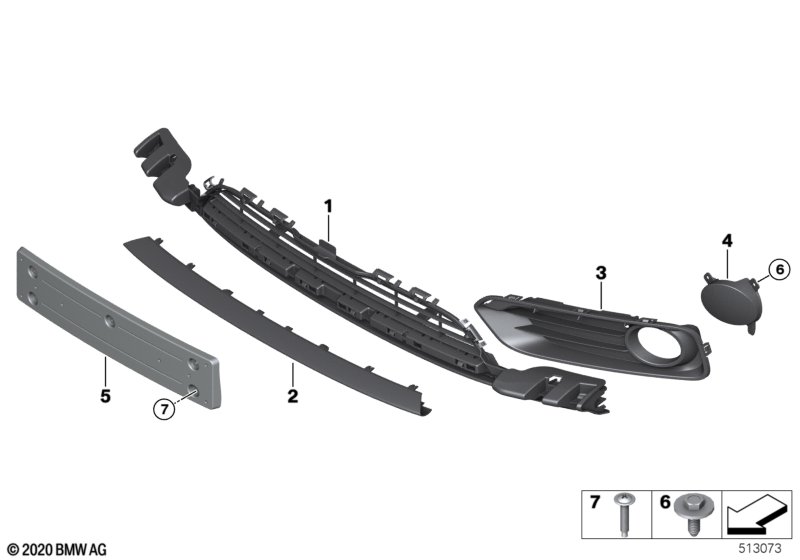

This Trim, decor elements, front technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 114d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active cruise control+Stop&Go function and M Aerodynamics package |
S5DFA=No S715A=No |
|||||||||
| 01 | Grill, center lower | 1 | 51117371737 | Shop at ECS Tuning | ||||||
| For vehicles with Active cruise control+Stop&Go function and M Aerodynamics package |
S5DFA=Yes S715A=No |
|||||||||
| 01 | Grill, center lower | ACC | 1 | 51117383765 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Urban Line and Sport Line and M Aerodynamics package |
P7ACA=Yes P7ADA=Yes P7B1A=Yes S715A=No |
|||||||||
| 02 | Finisher, rod, center | SPORT/URBAN | 1 | 51117371726 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Urban Line and Sport Line and M Aerodynamics package |
P7ACA=No P7ADA=Yes P7B1A=No S715A=No |
|||||||||
| 03 | Closed grid, left | URBAN | 1 | 51117443805 | Shop at ECS Tuning | |||||
| 03 | Closed grid, right | URBAN | 1 | 51117443806 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Urban Line and Sport Line and M Aerodynamics package |
P7ACA=No P7ADA=No P7B1A=No S715A=No |
|||||||||
| 03 | Closed grid, left | BASIS | 1 | 51117371665 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Sport Line and Modell Sport Line and M Aerodynamics package |
P7ACA=Yes P7B1A=Yes P7LDA=Yes S715A=No |
|||||||||
| 03 | Closed grid, left | SPORT | 1 | 51117371667 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Urban Line and Sport Line and Exhaust emission standards EU6 RDE and Automatic transmission and M Aerodynamics package and Hot-climate version |
P7ACA=No P7ADA=No P7B1A=No S1DEA=No S205A=No S715A=No S823A=No |
|||||||||
| 03 | Closed grid, right | BASIS | 1 | 51117371666 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Sport Line and Modell Sport Line and Exhaust emission standards EU6 RDE and Automatic transmission and M Aerodynamics package and Hot-climate version |
P7ACA=Yes P7B1A=Yes P7LDA=Yes S1DEA=No S205A=No S715A=No S823A=No |
|||||||||
| 03 | Closed grid, right | SPORT | 1 | 51117371668 | Shop at ECS Tuning | |||||
| For vehicles with Fog lights and LED Fog lights |
S520A=No S5A1A=No |
|||||||||
| 04 | Cover, fog lamp, left | 1 | 51117371727 | Shop at ECS Tuning | ||||||
| 04 | Cover, fog lamp, right | 1 | 51117371728 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and National version China and M Aerodynamics package and Control of number-plate attachment |
L807A=No L8AAA=No S715A=No S992A=No |
|||||||||
| 05 | Licence plate base | ECE | 1 | 51137383756 | Shop at ECS Tuning | |||||
| 06 | Hex head screw | 4 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 07 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 4 | 07146959925 | $0.29 | Shop at ECS Tuning | ||||
