M Trim, rear for BMW 1 Series F21 LCI 118d (2019)

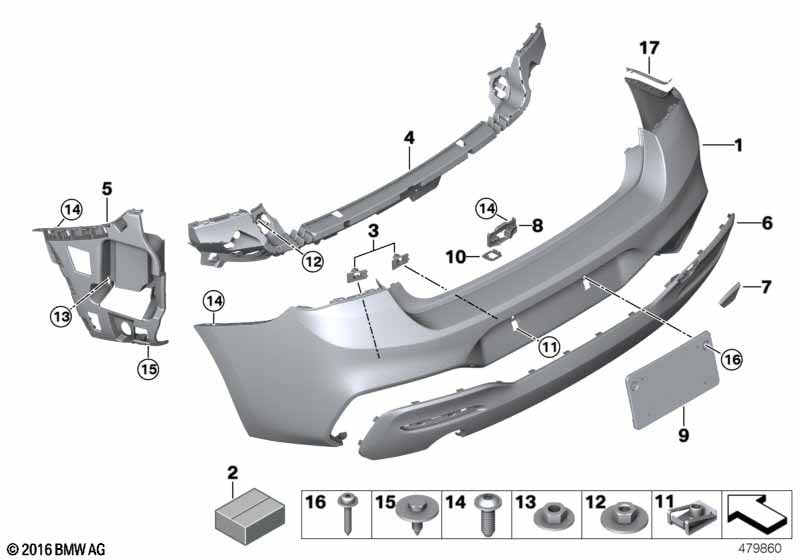

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=Yes S507A=Yes S508A=Yes S5DPA=Yes S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | RFK | 1 | 51128067800 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| -- | Set of PMA brackets front/rear | M | 1 | 51118079579 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=Yes S507A=Yes S508A=No S5DPA=Yes S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | RFK | 1 | 51128067800 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| -- | Set of PMA brackets front/rear | M | 1 | 51118079579 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=Yes S507A=No S508A=Yes S5DPA=Yes S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | RFK | 1 | 51128067800 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| -- | Set of PMA brackets front/rear | M | 1 | 51118079579 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package |
S3AGA=No S507A=No S508A=No S5DPA=No S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | 1 | 51128064151 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package |
S3AGA=Yes S507A=No S508A=No S5DPA=No S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | RFK | 1 | 51128067800 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=No S507A=Yes S508A=Yes S5DPA=Yes S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | 1 | 51128064151 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| -- | Set of PMA brackets front/rear | M | 1 | 51118079579 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=No S507A=Yes S508A=No S5DPA=Yes S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | 1 | 51128064151 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| -- | Set of PMA brackets front/rear | M | 1 | 51118079579 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=No S507A=No S508A=Yes S5DPA=Yes S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | 1 | 51128064151 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| -- | Set of PMA brackets front/rear | M | 1 | 51118079579 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=No S507A=Yes S508A=Yes S5DPA=No S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | 1 | 51128064151 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=No S507A=Yes S508A=No S5DPA=No S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | 1 | 51128064151 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=No S507A=No S508A=Yes S5DPA=No S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | 1 | 51128064151 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=Yes S507A=Yes S508A=Yes S5DPA=No S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | RFK | 1 | 51128067800 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=Yes S507A=Yes S508A=No S5DPA=No S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | RFK | 1 | 51128067800 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent and M Aerodynamics package Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S3AGA=Yes S507A=No S508A=Yes S5DPA=No S715A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | RFK | 1 | 51128067800 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and M Aerodynamics package |
S507A=Yes S508A=Yes S715A=Yes |
|||||||||
| 03 | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and M Aerodynamics package |
S507A=Yes S508A=No S715A=Yes |
|||||||||
| 03 | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and Park Distance Control (PDC) and M Aerodynamics package |
S507A=No S508A=Yes S715A=Yes |
|||||||||
| 03 | Rear PDC holder set | 1 | 51128079576 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 04 | Guide, center rear | 1 | 51127371712 | Shop at ECS Tuning | ||||||
| 05 | Guide for bumper, side, left | 1 | 51128063451 | Shop at ECS Tuning | ||||||
| 05 | Guide for bumper, side, right | 1 | 51128063452 | Shop at ECS Tuning | ||||||
| 06 | Insert for bumper, rear | M EINFLUTIG | 1 | 51128060302 | Shop at ECS Tuning | |||||
| 07 | Cover, towing hinge | M GRUNDIERT | 1 | 51128060301 | Shop at ECS Tuning | |||||
| 08 | Bracket for antenna | 1 | 51127318435 | Shop at ECS Tuning | ||||||
| For vehicles with Reversing camera |
S3AGA=Yes |
|||||||||
| 10 | Bracket for camera system | 1 | 51127291450 | Shop at ECS Tuning | ||||||
| 11 | Clip nut | M6 | 2 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| 12 | Combination nut | 7 | 07147305178 | Shop at ECS Tuning | ||||||
| 13 | Hex nut with plate | M6 | 4 | 07147155614 | $0.91 | Shop at ECS Tuning | ||||
| 14 | Fillister head screw | ST5X17-ZNS3 | 8 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | TS5X17 SW8 D=22 | 6 | 07149126886 | Shop at ECS Tuning | |||||
| 16 | Fillister head self-tapp.screw w collar | ISA ST4,8X25 | 2 | 07149247838 | Shop at ECS Tuning | |||||
| 17 | Left protection foil | 1 | 51127400289 | Shop at ECS Tuning | ||||||
| 17 | Right protection foil | 1 | 51127400290 | Shop at ECS Tuning | ||||||
