Trim cover, rear for BMW 1 Series F20 LCI 125i (2019)

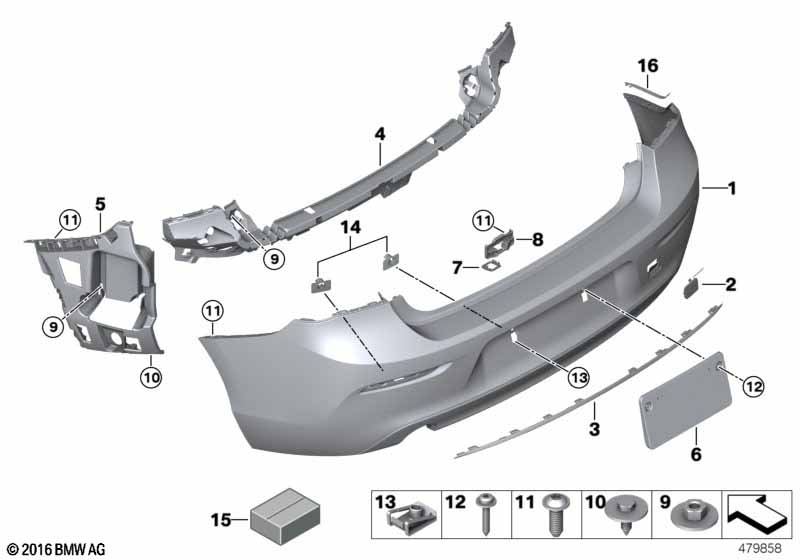

This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 125i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| For vehicles with Sport Line and Urban Line and Sport Line and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
P7ACA=Yes P7ADA=Yes P7B1A=Yes S507A=Yes S508A=Yes S5DPA=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | LINES/RFC | 1 | 51127429775 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51127434697 | Shop at ECS Tuning | ||||||
| -- | Set of PMA brackets front/rear | 1 | 51117434705 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Urban Line and Sport Line and Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent |
P7ACA=No P7ADA=No P7B1A=No S3AGA=Yes S507A=No S508A=No S5DPA=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | RFC | 1 | 51127429771 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and Urban Line and Sport Line and Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
P7ACA=No P7ADA=No P7B1A=No S3AGA=No S507A=Yes S508A=Yes S5DPA=No |
|||||||||
| 01 | Bumper trim panel, primed, rear | 1 | 51127429770 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51127434697 | Shop at ECS Tuning | ||||||
| For vehicles with Sport Line and Urban Line and Sport Line and Reversing camera and Park Distance Control (PDC), rear and Park Distance Control (PDC) and Park Assistent Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
P7ACA=Yes P7ADA=Yes P7B1A=Yes S3AGA=No S507A=Yes S508A=Yes S5DPA=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | LINES | 1 | 51127429774 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 51122467371 | Shop at ECS Tuning | |||||
| -- | Rear PDC holder set | 1 | 51127434697 | Shop at ECS Tuning | ||||||
| -- | Set of PMA brackets front/rear | 1 | 51117434705 | Shop at ECS Tuning | ||||||
| 02 | Cover, towing eye, primed, rear | 1 | 51127371751 | Shop at ECS Tuning | ||||||
| For vehicles with Urban Line |
P7ADA=Yes |
|||||||||
| 03 | Trim strip, rear | URBAN | 1 | 51127371763 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line or Sport Line |
P7ACA=Yes P7B1A=Yes |
|||||||||
| 03 | Trim strip, rear | SPORT | 1 | 51127371758 | Shop at ECS Tuning | |||||
| 04 | Guide, center rear | 1 | 51127371712 | Shop at ECS Tuning | ||||||
| 05 | Mount, bumper rear left | 1 | 51127371753 | Shop at ECS Tuning | ||||||
| 05 | Mount, bumper rear right | 1 | 51127371754 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and M Aerodynamics package |
L807A=Yes S715A=No |
|||||||||
| 06 | Licence plate base | JPN | 1 | 51137397533 | Shop at ECS Tuning | |||||
| For vehicles with Reversing camera |
S3AGA=Yes |
|||||||||
| 07 | Bracket for camera system | 1 | 51127291450 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 08 | Bracket for antenna | 1 | 51127318435 | Shop at ECS Tuning | ||||||
| 09 | Combination nut | 11 | 07147305178 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt | TS5X17 SW8 D=22 | 6 | 07149126886 | Shop at ECS Tuning | |||||
| 11 | Fillister head screw | ST5X17-ZNS3 | 8 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 12 | Fillister head self-tapp.screw w collar | ISA ST4,8X25 | 1 | 07149247838 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear or Park Distance Control (PDC) Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S507A=Yes S508A=Yes |
|||||||||
| 14 | Rear PDC holder set | 1 | 51127434697 | Shop at ECS Tuning | ||||||
| For vehicles with Park Assistent Please observe Technical Service Bulletin SIT 10 18 12(874) as well as repair instructions for 'Punching holes in bumper.' |
S5DPA=Yes |
|||||||||
| 15 | Set of PMA brackets front/rear | 1 | 51117434705 | Shop at ECS Tuning | ||||||
| 16 | Left protection foil | 1 | 51127400289 | Shop at ECS Tuning | ||||||
| 16 | Right protection foil | 1 | 51127400290 | Shop at ECS Tuning | ||||||
