Rear window shelf/sun blind for BMW 7 Series E32 750iL (1994)

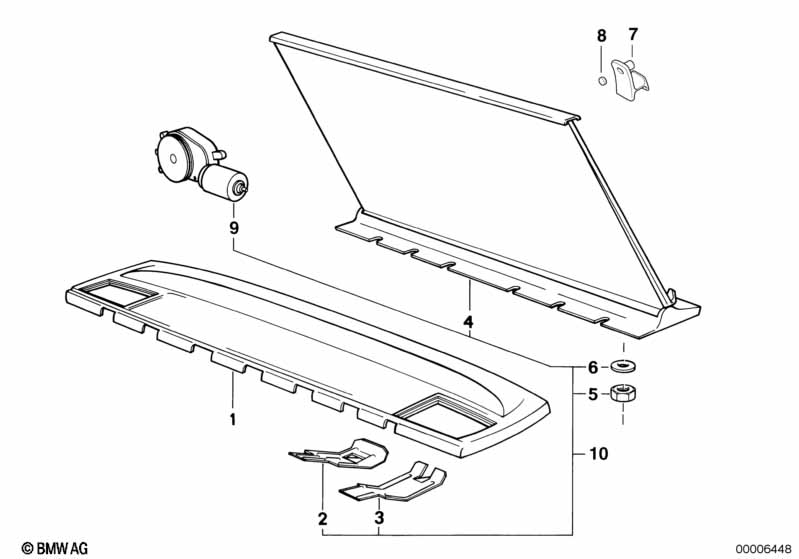

This Rear window shelf/sun blind technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| INDIVIDUAL SERIES 93/94 | ||||||||||
| 01 | Rear window shelf | SCHWARZ | 1 | 51462261386 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Electric sun blind |
=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51468139650 | ENDED | Shop at ECS Tuning | ||||
| WITHOUT attached SUN BLIND | ||||||||||
| 01 | Rear window shelf | KARMESINROT | 1 | 09/1988 | 51468113939 | ENDED | Shop at ECS Tuning | |||
| WITHOUT attached SUN BLIND | ||||||||||
| 01 | Rear window shelf | SILBERGRAU | 1 | 09/1990 | 51468139651 | ENDED | Shop at ECS Tuning | |||
| WITHOUT attached SUN BLIND | ||||||||||
| 01 | Rear window shelf | ULTRAMARIN | 1 | 09/1990 | 51468139652 | ENDED | Shop at ECS Tuning | |||
| WITHOUT attached SUN BLIND | ||||||||||
| 01 | Rear window shelf | PERGAMENT | 1 | 09/1990 | 51468139653 | ENDED | Shop at ECS Tuning | |||
| WITHOUT attached SUN BLIND | ||||||||||
| 01 | Rear window shelf | BRASIL | 1 | 09/1990 | 51468139654 | ENDED | Shop at ECS Tuning | |||
| WITHOUT attached SUN BLIND | ||||||||||
| For vehicles with National version Australia and Electric sun blind |
L810A=Yes =Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51468139655 | $66.75 | ENDED | Shop at ECS Tuning | |||
| WITHOUT attached SUN BLIND | ||||||||||
| 01 | Rear window shelf | KARMESINROT | 1 | 09/1988 | 51468113941 | $280.12 | ENDED | Shop at ECS Tuning | ||
| WITHOUT attached SUN BLIND | ||||||||||
| 01 | Rear window shelf | SILBERGRAU | 1 | 09/1990 | 51468139656 | $66.75 | ENDED | Shop at ECS Tuning | ||
| WITHOUT attached SUN BLIND | ||||||||||
| 01 | Rear window shelf | ULTRAMARIN | 1 | 09/1990 | 51468139657 | $291.28 | ENDED | Shop at ECS Tuning | ||
| WITHOUT attached SUN BLIND | ||||||||||
| 01 | Rear window shelf | PERGAMENT | 1 | 09/1990 | 51468139658 | $66.75 | ENDED | Shop at ECS Tuning | ||
| WITHOUT attached SUN BLIND | ||||||||||
| 01 | Rear window shelf | BRASIL | 1 | 09/1990 | 51468139659 | $291.28 | ENDED | Shop at ECS Tuning | ||
| WITHOUT attached SUN BLIND | ||||||||||
| 02 | Clamp | 2 | 51461969742 | $2.66 | Shop at ECS Tuning | |||||
| 03 | Holder | 4 | 51468102303 | $1.68 | Shop at ECS Tuning | |||||
| 04 | Electric sun blind | 1 | 51461969784 | $681.39 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex nut | M6-8-ZNS3 | 6 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M6 ZNNIV SI | 6 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-200HV-ZNS3 | 6 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Support for sun blind | BEIGE | 2 | 51461975479 | $1.95 | Shop at ECS Tuning | ||||
| 07 | Support for sun blind | GRAU | 2 | 51461975480 | $1.95 | Shop at ECS Tuning | ||||
| 07 | Support for sun blind | KARMESINROT | 2 | 51468113936 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 08 | Fillister head self-tapping screw | ST3,5X13 | 2 | 07119906720 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Drive | 1 | 51461388215 | $188.01 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
