Rear window shelf/sun blind for BMW 7 Series E32 735i (1992)

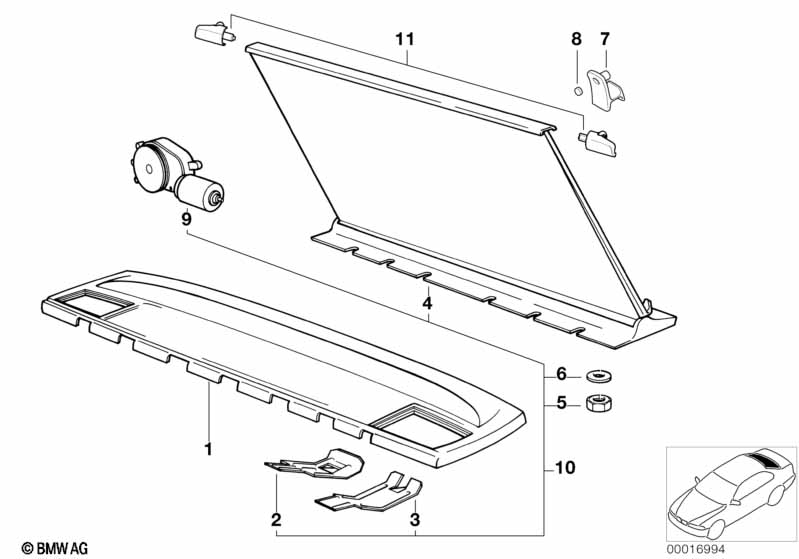

This Rear window shelf/sun blind technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51468139650 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | KARMESINROT | 1 | 09/1988 | 51468113939 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | SILBERGRAU | 1 | 09/1990 | 51468139651 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | ULTRAMARIN | 1 | 09/1990 | 51468139652 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | PERGAMENT | 1 | 09/1990 | 51468139653 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | BRASIL | 1 | 09/1990 | 51468139654 | ENDED | Shop at ECS Tuning | |||
| 02 | Holder | 4 | 51468102303 | $1.68 | Shop at ECS Tuning | |||||
| 03 | Clamp | 2 | 51461969742 | $2.66 | Shop at ECS Tuning | |||||
| 04 | Electric sun blind | 1 | 51461969784 | $681.39 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hex nut | M6-8-ZNS3 | 6 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M6 ZNNIV SI | 6 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Washer | 6,4 | 6 | 04/1994 | 07119936425 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 07 | Support for sun blind | BEIGE | 2 | 51461975479 | $1.95 | Shop at ECS Tuning | ||||
| 07 | Support for sun blind | GRAU | 2 | 51461975480 | $1.95 | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST3,5X13 | 2 | 07119906720 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Drive | 1 | 51461388215 | $188.01 | Shop at ECS Tuning | |||||
| 10 | Supplementary set sun blind electr. | 1 | 09/1987 | 51469060595 | $290.95 | ENDED | Shop at ECS Tuning | |||
| ONLY IN CONJUNCTION WITH REAR WINDOW SHELF SWITCH COVERING |
||||||||||
| 11 | Set of end caps | 1 | 51169071615 | $15.27 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 735i Rear window shelf/sun blind?
- This technical diagram illustrates the Rear window shelf/sun blind within the Vehicle trim group for the 7 Series E32 735i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Rear window shelf (Part #51468139650).
- Which models use the hardware listed in this Rear window shelf/sun blind?
- The hardware and components featured in the Rear window shelf/sun blind are specific to the 7 Series E32 735i produced during 1992. These technical specifications ensure that parts like the Rear window shelf (51468139650) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear window shelf/sun blind assembly?
- Each item in the Rear window shelf/sun blind corresponds to the numbered list below the illustration. For the 7 Series E32 735i, you can identify the Rear window shelf by locating its position on the schematic, which then links to the official BMW part number 51468139650 for the Vehicle trim section.
