M Outside mirror for BMW 3 Series E36 M3 (1997)

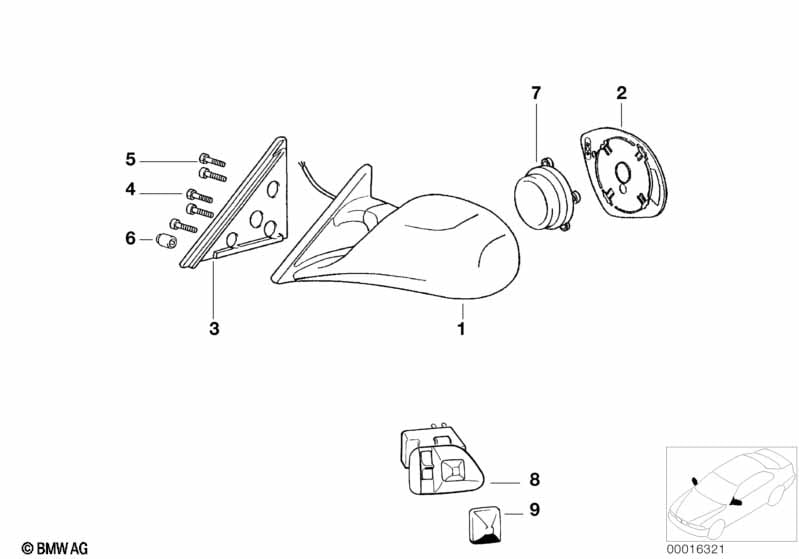

This M Outside mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left primed el.exterior heatable mirror | M TECHNIC | 1 | 51162263979 | $225.83 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Right primed el.exter.heatable mirror | M TECHNIC | 1 | 51162263980 | $225.83 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Screw self-tapping | M6X14 Z1 | 3 | 51168220001 | $3.81 | Shop at ECS Tuning | ||||
| 01 | Left painted el.exterior heatable mirror | CODE - UNI | 1 | 51169067847 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Left painted el.exterior heatable mirror | CODE - MET. | 1 | 51169067848 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Screw self-tapping | M6X14 Z1 | 3 | 51168220001 | $3.81 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Right painted el.exter.heatable mirror | CODE - UNI | 1 | 51169067851 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Right painted el.exter.heatable mirror | CODE - MET. | 1 | 51169067852 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Screw self-tapping | M6X14 Z1 | 3 | 51168220001 | $3.81 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Mirror glas heated (drivers side) | M TECHNIC | 1 | 51162267191 | $95.51 | Shop at ECS Tuning | ||||
| 02 | Mirror glas heated (co-drivers side) | M TECHNIC | 1 | 51162267224 | $95.51 | Shop at ECS Tuning | ||||
| 04 | Screw self-tapping | M6X14 Z1 | 6 | 51168220001 | $3.81 | Shop at ECS Tuning | ||||
| 07 | Drive | 1 | 51161394107 | $56.07 | Shop at ECS Tuning | |||||
| 08 | Mirror switch with change-over switch | 1 | 61311387281 | $67.34 | ENDED | Shop at ECS Tuning | ||||
| 09 | Button | 1 | 61311383335 | $3.62 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
