Trunk lid and roller sun blind trim for BMW 5 Series E34 525td (1996)

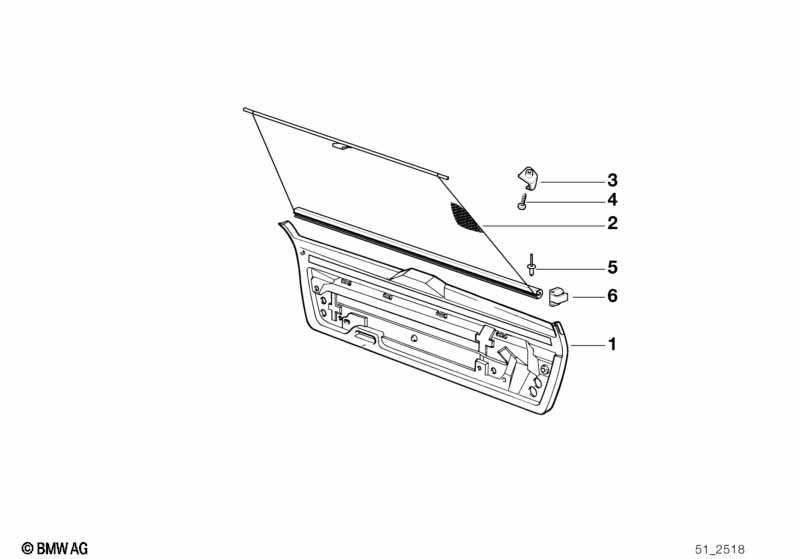

This Trunk lid and roller sun blind trim technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | FOR RETROFITTING additionally required parts: TRUNK LID |
|||||||||
| 01 | Lower tail lid trim panel | SCHWARZ | 1 | 51492489619 | $218.97 | Shop at ECS Tuning | ||||
| 01 | Lower tail lid trim panel | SILBERGRAU | 1 | 51492489620 | $218.97 | Shop at ECS Tuning | ||||
| 01 | Lower tail lid trim panel | ULTRAMARIN | 1 | 51492489621 | $233.24 | ENDED | Shop at ECS Tuning | |||
| 01 | Lower tail lid trim panel | PERGAMENT | 1 | 51492489622 | $218.97 | Shop at ECS Tuning | ||||
| 02 | Trunk lid sun blind | 1 | 51462267140 | $228.79 | ENDED | Shop at ECS Tuning | ||||
| 03 | Left roller sun blind hook | SCHWARZ | 1 | 51492267433 | $7.48 | Shop at ECS Tuning | ||||
| 03 | Right roller sun blind hook | SCHWARZ | 1 | 51492267434 | $7.48 | Shop at ECS Tuning | ||||
| 03 | Left roller sun blind hook | SILBERGRAU | 1 | 51492267435 | Shop at ECS Tuning | |||||
| 03 | Right roller sun blind hook | SILBERGRAU | 1 | 51492267436 | Shop at ECS Tuning | |||||
| 03 | Left roller sun blind hook | ULTRAMARIN | 1 | 51492267437 | ENDED | Shop at ECS Tuning | ||||
| 03 | Right roller sun blind hook | ULTRAMARIN | 1 | 51492267438 | ENDED | Shop at ECS Tuning | ||||
| 03 | Left roller sun blind hook | PERGAMENT | 1 | 51492267439 | $7.48 | ENDED | Shop at ECS Tuning | |||
| 03 | Right roller sun blind hook | PERGAMENT | 1 | 51492267440 | $7.48 | ENDED | Shop at ECS Tuning | |||
| 04 | Recessed oval head sheet-metal screw | 4,2X22 | 2 | 07119900038 | $0.53 | ENDED | Shop at ECS Tuning | |||
| 05 | Blind rivet | 3,2 2A | 6 | 07129948747 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Cover | 2 | 51161977262 | $1.16 | Shop at ECS Tuning | |||||
