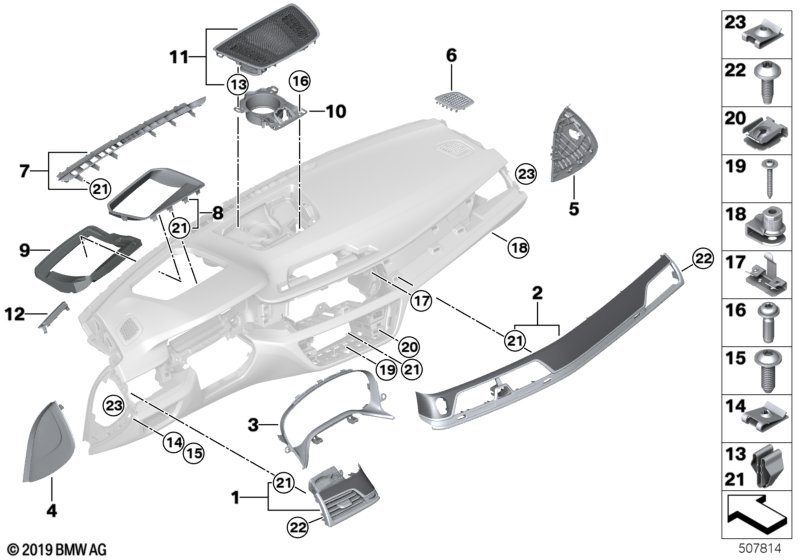

Mounting parts, I-panel, top for BMW 7 Series G12 740LdX (2019)
This Mounting parts, I-panel, top technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fine wood Fineline high-gloss met effect and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4LMA=Yes S4NBA=No S4URA=No |
|||||||||
| 01 | Cover pan.inst.pan.Fineline/metal driver | SCHWARZ | 1 | 51458066664 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Fine-wood trim poplar grain light and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4BPA=Yes S4NBA=No S4URA=No |
|||||||||
| 01 | Cov.pan.inst.pan.poplar grain light dri. | 1 | 51459363004 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood version, poplar grain, gray and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4ASA=Yes S4NBA=No S4URA=No |
|||||||||
| 01 | Cover pan.inst.pan.poplar grain driver | GRAU | 1 | 51459363002 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood ash grain Marone/wood inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AXA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 01 | Trim I-panel ash burl driver | MARONE | 1 | 51459379171 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood ash grain Marone/wood inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AXA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 01 | Trim I-panel ash burl driver | MARONE | 1 | 51459363033 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood Fineline high-gloss met effect and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4LMA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 01 | Cover pan.inst.pan.Fineline/metal driver | SCHWARZ | 1 | 51458067777 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Interior strips, piano lacquer, black and Autom. climate control with 4-zone ctrl and Ambient interior lighting Driver's side |
S4MLA=Yes S4NBA=No S4URA=No |
|||||||||
| 01 | Cover, dashboard, right, Pianolack | SCHWARZ | 1 | 07/2017 | 51458077722 | NoS | Shop at ECS Tuning | |||
| For vehicles with Fine-wood trim poplar grain light and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4BPA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 01 | Cov.pan.inst.pan.poplar grain light dri. | 1 | 51459363036 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood version, poplar grain, gray and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4ASA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 01 | Cover pan.inst.pan.poplar grain driver | GRAU | 1 | 51459363034 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Interior strips, piano lacquer, black and Autom. climate control with 4-zone ctrl and Ambient interior lighting Driver's side |
S4MLA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 01 | Cover, dashboard, right, Pianolack | SCHWARZ | 1 | 07/2017 | 51458077732 | NoS | Shop at ECS Tuning | |||
| For vehicles with Interior strips, piano lacquer, black and Autom. climate control with 4-zone ctrl and Ambient interior lighting Driver's side |
S4MLA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 01 | Cover, dashboard, right, Pianolack | SCHWARZ | 1 | 07/2017 | 51458077724 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood Fineline high-gloss met effect and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4LMA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 01 | Cover pan.inst.pan.Fineline/metal driver | SCHWARZ | 1 | 51458068695 | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood ash grain Marone/wood inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AXA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 01 | Trim I-panel ash burl driver | MARONE | 1 | 51459379181 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine-wood trim poplar grain light and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4BPA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 01 | Cov.pan.inst.pan.poplar grain light dri. | 1 | 51459379174 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood Fineline high-gloss met effect and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4LMA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 01 | Cover pan.inst.pan.Fineline/metal driver | SCHWARZ | 1 | 51458068693 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine-wood trim poplar grain light and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4BPA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 01 | Cov.pan.inst.pan.poplar grain light dri. | 1 | 51459379185 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood, light oak / metal inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AYA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 01 | Cover pan.inst.pan.light oak driver | 1 | 51459379173 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood, light oak / metal inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AYA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 01 | Cover pan.inst.pan.light oak driver | 1 | 51459379184 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood, light oak / metal inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AYA=Yes S4NBA=No S4URA=No |
|||||||||
| 01 | Cover pan.inst.pan.light oak driver | 1 | 51459363003 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Interior strips, piano lacquer, black and Autom. climate control with 4-zone ctrl and Ambient interior lighting Driver's side |
S4MLA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 01 | Cover, dashboard, right, Pianolack | SCHWARZ | 1 | 07/2017 | 51458077730 | NoS | Shop at ECS Tuning | |||
| For vehicles with Fine wood version, poplar grain, gray and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4ASA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 01 | Cover pan.inst.pan.poplar grain driver | GRAU | 1 | 51459379183 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood, light oak / metal inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AYA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 01 | Cover pan.inst.pan.light oak driver | 1 | 51459363035 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood version, poplar grain, gray and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4ASA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 01 | Cover pan.inst.pan.poplar grain driver | GRAU | 1 | 51459379172 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood ash grain Marone/wood inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AXA=Yes S4NBA=No S4URA=No |
|||||||||
| 01 | Trim I-panel ash burl driver | MARONE | 1 | 51459363001 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss and Fine wood Fineline high-gloss / alu trim and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4B7A=Yes S4K2A=Yes S4NBA=No S4URA=Yes |
|||||||||
| 01 | Cover pan.inst.pan.Fineline driver | 1 | 51459379170 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss and Fine wood Fineline high-gloss / alu trim and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4B7A=Yes S4K2A=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 01 | Cover pan.inst.pan.Fineline driver | 1 | 51459379180 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including fresh air grille |
||||||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss and Fine wood Fineline high-gloss / alu trim and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4B7A=Yes S4K2A=Yes S4NBA=No S4URA=No |
|||||||||
| 01 | Cover pan.inst.pan.Fineline driver | 1 | 51459299496 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss and Fine wood Fineline high-gloss / alu trim and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4B7A=Yes S4K2A=Yes S4NBA=Yes S4URA=No |
|||||||||
| 01 | Cover pan.inst.pan.Fineline driver | 1 | 51459361933 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including fresh air grille |
||||||||||
| For vehicles with Fine wood Fineline high-gloss met effect and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4LMA=Yes S4NBA=No S4URA=No |
|||||||||
| 02 | Cov.pan.inst.pan.Fineline/metal fr.pass. | SCHWARZ | 1 | 51456992341 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine-wood trim poplar grain light and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4BPA=Yes S4NBA=No S4URA=No |
|||||||||
| 02 | Cov.pan.inst.pan.pop.grain light pass. | 1 | 51456992334 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood version, poplar grain, gray and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4ASA=Yes S4NBA=No S4URA=No |
|||||||||
| 02 | Cover pan.inst.pan.poplar grain fr.pass. | GRAU | 1 | 51456992332 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood ash grain Marone/wood inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AXA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 02 | Trim I-panel ash burl front passenger | MARONE | 1 | 51456992346 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood ash grain Marone/wood inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AXA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 02 | Trim I-panel ash burl front passenger | MARONE | 1 | 51456992335 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood Fineline high-gloss met effect and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4LMA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 02 | Cov.pan.inst.pan.Fineline/metal fr.pass. | SCHWARZ | 1 | 51456992342 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Interior strips, piano lacquer, black and Autom. climate control with 4-zone ctrl and Ambient interior lighting Passenger's side |
S4MLA=Yes S4NBA=No S4URA=No |
|||||||||
| 02 | Cover, dashboard, left, Pianolack | SCHWARZ | 1 | 07/2017 | 51458077745 | NoS | Shop at ECS Tuning | |||
| For vehicles with Fine-wood trim poplar grain light and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4BPA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 02 | Cov.pan.inst.pan.pop.grain light pass. | 1 | 51456992338 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood version, poplar grain, gray and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4ASA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 02 | Cover pan.inst.pan.poplar grain fr.pass. | GRAU | 1 | 51456992336 | NoS | Shop at ECS Tuning | ||||
| including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Interior strips, piano lacquer, black and Autom. climate control with 4-zone ctrl and Ambient interior lighting Passenger's side |
S4MLA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 02 | Cover, dashboard, left, Pianolack | SCHWARZ | 1 | 07/2017 | 51458077748 | NoS | Shop at ECS Tuning | |||
| For vehicles with Interior strips, piano lacquer, black and Autom. climate control with 4-zone ctrl and Ambient interior lighting Passenger's side |
S4MLA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 02 | Cover, dashboard, left, Pianolack | SCHWARZ | 1 | 07/2017 | 51458077747 | NoS | Shop at ECS Tuning | |||
| For vehicles with Fine wood Fineline high-gloss met effect and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4LMA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 02 | Cov.pan.inst.pan.Fineline/metal fr.pass. | SCHWARZ | 1 | 51456992344 | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood ash grain Marone/wood inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AXA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 02 | Trim I-panel ash burl front passenger | MARONE | 1 | 51456992351 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine-wood trim poplar grain light and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4BPA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 02 | Cov.pan.inst.pan.pop.grain light pass. | 1 | 51456992349 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood Fineline high-gloss met effect and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4LMA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 02 | Cov.pan.inst.pan.Fineline/metal fr.pass. | SCHWARZ | 1 | 51456992343 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine-wood trim poplar grain light and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4BPA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 02 | Cov.pan.inst.pan.pop.grain light pass. | 1 | 51456992354 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood, light oak / metal inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AYA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 02 | Cover pan.inst.pan.light oak front pass. | 1 | 51456992348 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood, light oak / metal inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AYA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 02 | Cover pan.inst.pan.light oak front pass. | 1 | 51456992353 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood, light oak / metal inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AYA=Yes S4NBA=No S4URA=No |
|||||||||
| 02 | Cover pan.inst.pan.light oak front pass. | 1 | 51456992333 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Interior strips, piano lacquer, black and Autom. climate control with 4-zone ctrl and Ambient interior lighting Passenger's side |
S4MLA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 02 | Cover, dashboard, left, Pianolack | SCHWARZ | 1 | 07/2017 | 51458077746 | NoS | Shop at ECS Tuning | |||
| For vehicles with Fine wood version, poplar grain, gray and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4ASA=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 02 | Cover pan.inst.pan.poplar grain fr.pass. | GRAU | 1 | 51456992352 | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood, light oak / metal inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AYA=Yes S4NBA=Yes S4URA=No |
|||||||||
| 02 | Cover pan.inst.pan.light oak front pass. | 1 | 51456992337 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood version, poplar grain, gray and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4ASA=Yes S4NBA=No S4URA=Yes |
|||||||||
| 02 | Cover pan.inst.pan.poplar grain fr.pass. | GRAU | 1 | 51456992347 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine wood ash grain Marone/wood inlay and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4AXA=Yes S4NBA=No S4URA=No |
|||||||||
| 02 | Trim I-panel ash burl front passenger | MARONE | 1 | 51456992331 | NoS | Shop at ECS Tuning | ||||
| Including fiber-optic conductor including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss and Fine wood Fineline high-gloss / alu trim and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4B7A=Yes S4K2A=Yes S4NBA=No S4URA=Yes |
|||||||||
| 02 | Cover pan.inst.pan.Fineline front pass. | 1 | 51456992345 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss and Fine wood Fineline high-gloss / alu trim and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4B7A=Yes S4K2A=Yes S4NBA=Yes S4URA=Yes |
|||||||||
| 02 | Cover pan.inst.pan.Fineline front pass. | 1 | 51456992350 | Shop at ECS Tuning | ||||||
| Including fiber-optic conductor without LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss and Fine wood Fineline high-gloss / alu trim and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4B7A=Yes S4K2A=Yes S4NBA=No S4URA=No |
|||||||||
| 02 | Cover pan.inst.pan.Fineline front pass. | 1 | 51456992339 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Fine woodgr. vers. 'Fineline' high-gloss and Fine wood Fineline high-gloss / alu trim and Autom. climate control with 4-zone ctrl and Ambient interior lighting |
S4B7A=Yes S4K2A=Yes S4NBA=Yes S4URA=No |
|||||||||
| 02 | Cover pan.inst.pan.Fineline front pass. | 1 | 51456992340 | NoS | Shop at ECS Tuning | |||||
| Including fiber-optic conductor including LED module Including NFC reader antenna Without NFC symbolism |
||||||||||
| For vehicles with Driving assistant professional |
S5AUA=No |
|||||||||
| 03 | Trim instrument cluster | 1 | 51459327069 | Shop at ECS Tuning | ||||||
| 04 | Side cover, right | SCHWARZ | 1 | 51459381388 | Shop at ECS Tuning | |||||
| For vehicles with zagora-beige |
FZ=Yes |
|||||||||
| 04 | Side cover, right | ZAGORABEIGE | 1 | 51459381382 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 04 | Side cover, left | SCHWARZ | 1 | 51459381387 | NoS | Shop at ECS Tuning | ||||
| For vehicles with cognac |
RI=Yes |
|||||||||
| 04 | Side cover, right | COGNAC | 1 | 51459381386 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Mocha |
MY=Yes |
|||||||||
| 04 | Side cover, right | MOKKA | 1 | 51459381384 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia and zagora-beige |
L810A=Yes FZ=Yes |
|||||||||
| 04 | Side cover, left | ZAGORABEIGE | 1 | 51459381381 | NoS | Shop at ECS Tuning | ||||
| For vehicles with canberra-beige or canberra-beige |
CY=Yes DQ=Yes |
|||||||||
| 04 | Side cover, right | CANBERRABEIGE | 1 | 51459381378 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and cognac |
L810A=Yes RI=Yes |
|||||||||
| 04 | Side cover, left | COGNAC | 1 | 51459381385 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia and Mocha |
L810A=Yes MY=Yes |
|||||||||
| 04 | Side cover, left | MOKKA | 1 | 51459381383 | Shop at ECS Tuning | |||||
| For vehicles with elfenbein-weiss or elfenbein-weiss or elfenbein-weiss |
EQ=Yes EW=Yes EX=Yes |
|||||||||
| 04 | Side cover, right | ELFENBEINWEIß | 1 | 51459381380 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and canberra-beige or canberra-beige |
L810A=Yes CY=Yes DQ=Yes |
|||||||||
| 04 | Side cover, left | CANBERRABEIGE | 1 | 51459381377 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia and elfenbein-weiss or elfenbein-weiss or elfenbein-weiss |
L810A=Yes EQ=Yes EW=Yes EX=Yes |
|||||||||
| 04 | Side cover, left | ELFENBEINWEIß | 1 | 51459381379 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia |
L810A=No |
|||||||||
| 05 | Side cover for "Airbag off" left | SCHWARZ | 1 | 51459381399 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia and cognac |
L810A=No RI=Yes |
|||||||||
| 05 | Side cover for "Airbag off" left | COGNAC | 1 | 51459381397 | Shop at ECS Tuning | |||||
| For vehicles with National version Australia and zagora-beige |
L810A=No FZ=Yes |
|||||||||
| 05 | Side cover for "Airbag off" left | ZAGORABEIGE | 1 | 51459381393 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Mocha |
L810A=No MY=Yes |
|||||||||
| 05 | Side cover for "Airbag off" left | MOKKA | 1 | 51459381395 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and canberra-beige or canberra-beige |
L810A=No CY=Yes DQ=Yes |
|||||||||
| 05 | Side cover for "Airbag off" left | CANBERRABEIGE | 1 | 51459381389 | NoS | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and elfenbein-weiss or elfenbein-weiss or elfenbein-weiss |
L810A=No EQ=Yes EW=Yes EX=Yes |
|||||||||
| 05 | Side cover for "Airbag off" left | ELFENBEINWEIß | 1 | 51459381391 | NoS | Shop at ECS Tuning | ||||
| 06 | Trim side window defroster fr.passenger | SCHWARZ | 1 | 51459378543 | NoS | Shop at ECS Tuning | ||||
| 06 | Trim side window defroster driver | SCHWARZ | 1 | 51459378544 | Shop at ECS Tuning | |||||
| For vehicles with canberra-beige or elfenbein-weiss |
DQ=Yes EQ=Yes |
|||||||||
| 06 | Trim side window defroster fr.passenger | DARK COFFEE | 1 | 51459378545 | NoS | Shop at ECS Tuning | ||||
| 06 | Trim side window defroster driver | DARK COFFEE | 1 | 51459378546 | NoS | Shop at ECS Tuning | ||||
| 07 | Trim cover, windshield defroster, center | SCHWARZ | 1 | 51459370413 | Shop at ECS Tuning | |||||
| For vehicles with canberra-beige or elfenbein-weiss |
DQ=Yes EQ=Yes |
|||||||||
| 07 | Trim cover, windshield defroster, center | DARK COFFEE | 1 | 51459370414 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Head-up display |
S610A=Yes |
|||||||||
| 08 | Trim piece for head-up display | SCHWARZ | 1 | 51459354753 | Shop at ECS Tuning | |||||
| For vehicles with Head-up display and canberra-beige or elfenbein-weiss |
S610A=Yes DQ=Yes EQ=Yes |
|||||||||
| 08 | Trim piece for head-up display | DARK COFFEE | 1 | 51459354754 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Head-up display |
S610A=Yes |
|||||||||
| 09 | Seal Head-Up Display | 1 | 51489356957 | NoS | Shop at ECS Tuning | |||||
| 10 | Adapter for center speaker | 1 | 51459299505 | Shop at ECS Tuning | ||||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=No |
|||||||||
| 11 | Cover, center speaker | SCHWARZ | 1 | 51459345348 | Shop at ECS Tuning | |||||
| For vehicles with Bowers & Wilkins High End Sound System and canberra-beige or elfenbein-weiss |
S6F1A=No DQ=Yes EQ=Yes |
|||||||||
| 11 | Cover, center speaker | DARK COFFEE | 1 | 51459363276 | Shop at ECS Tuning | |||||
| 12 | Support, VIN | 1 | 51459355238 | Shop at ECS Tuning | ||||||
| 13 | Clamp | 8 | 07147468646 | Shop at ECS Tuning | ||||||
| 14 | Body nut | ST4.2 ZNS3 | 4 | 51718261093 | $0.32 | Shop at ECS Tuning | ||||
| 15 | Pan head tapping screw | 4 | 07119908541 | Shop at ECS Tuning | ||||||
| 16 | Screw | 5 X 16 | 4 | 07129907505 | Shop at ECS Tuning | |||||
| 17 | U-clamp | 2 | 07149377744 | Shop at ECS Tuning | ||||||
| 18 | C-clip for plastic nut | 6 | 07149200938 | Shop at ECS Tuning | ||||||
| 19 | Oval-head screw with washer | DELTA PT4X30 | 2 | 07149250688 | Shop at ECS Tuning | |||||
| 20 | Sheet metal nut, self-locking | 2 | 07146960289 | $0.25 | Shop at ECS Tuning | |||||
| 21 | Clamp | 27 | 07147321144 | Shop at ECS Tuning | ||||||
| 22 | Fillister head screw | 4X12MM | 4 | 07147122390 | $0.25 | Shop at ECS Tuning | ||||
| 23 | C-clip sheet metal nut | 4 | 07149362904 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740LdX Mounting parts, I-panel, top?
- This technical diagram illustrates the Mounting parts, I-panel, top within the Vehicle trim group for the 7 Series G12 740LdX produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Cover pan.inst.pan.Fineline/metal driver (Part #51458066664).
- Which models use the hardware listed in this Mounting parts, I-panel, top?
- The hardware and components featured in the Mounting parts, I-panel, top are specific to the 7 Series G12 740LdX produced during 2019. These technical specifications ensure that parts like the Cover pan.inst.pan.Fineline/metal driver (51458066664) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mounting parts, I-panel, top assembly?
- Each item in the Mounting parts, I-panel, top corresponds to the numbered list below the illustration. For the 7 Series G12 740LdX, you can identify the Cover pan.inst.pan.Fineline/metal driver by locating its position on the schematic, which then links to the official BMW part number 51458066664 for the Vehicle trim section.
