Outside mirror for BMW 7 Series G12 725Ld (2017)

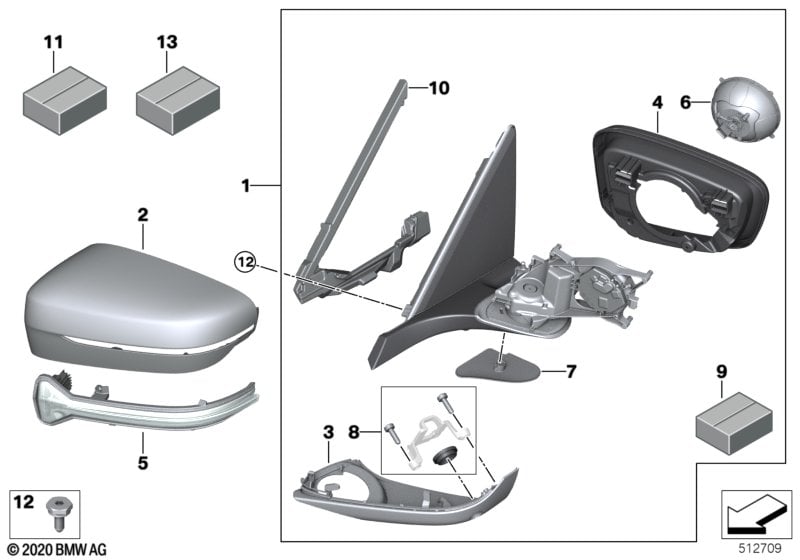

This Outside mirror technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 725Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with High gloss shadow line |
S760A=No |
||||||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Surround View |
S5ASA=Yes S5ATA=Yes S5DLA=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | ANODISING | 1 | 51167437153 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51167444264 | Shop at ECS Tuning | ||||||
| 01 | Heated outside mirror, memory bus, right | ANODISING | 1 | 03/2017 | 51168495734 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 03/2017 | 51167444264 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Surround View |
S5ASA=No S5ATA=No S5DLA=Yes |
|||||||||
| 01 | Heated outside mirror, memory bus, left | ANODISING | 1 | 51167437149 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51167444264 | Shop at ECS Tuning | ||||||
| 01 | Heated outside mirror, memory bus, right | ANODISING | 1 | 07/2016 | 51167471866 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 07/2016 | 51167444264 | Shop at ECS Tuning | |||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Surround View |
S5ASA=Yes S5ATA=Yes S5DLA=No |
|||||||||
| 01 | Heated outside mirror, memory bus, left | ANODISING | 1 | 51167437145 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | ANODISING | 1 | 03/2017 | 51168495724 | Shop at ECS Tuning | ||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Surround View |
S5ASA=No S5ATA=No S5DLA=No |
|||||||||
| 01 | Heated outside mirror, memory bus, left | ANODISING | 1 | 51167437141 | Shop at ECS Tuning | |||||
| 01 | Heated outside mirror, memory bus, right | ANODISING | 1 | 07/2016 | 51167471864 | Shop at ECS Tuning | ||||
| 02 | Cover cap, primed, left | 1 | 51167422719 | Shop at ECS Tuning | ||||||
| 02 | Cover cap, primed, right | 1 | 51167422720 | Shop at ECS Tuning | ||||||
| For vehicles with Surround View |
S5DLA=No |
|||||||||
| 03 | Housing lower section, left | ANODISING | 1 | 51167408453 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit exterior rearview mirror | 1 | 51167460316 | Shop at ECS Tuning | ||||||
| 03 | Housing lower section, right | ANODISING | 1 | 51167408454 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit exterior rearview mirror | 1 | 51167460316 | Shop at ECS Tuning | ||||||
| For vehicles with Surround View |
S5DLA=Yes |
|||||||||
| 03 | Housing lower section, left | ANODISING | 1 | 51165A1C7E7 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 03 | Housing lower section, right | ANODISING | 1 | 51165A1C7E8 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51167444264 | Shop at ECS Tuning | ||||||
| -- | Repair kit exterior rearview mirror | 1 | 51167460316 | Shop at ECS Tuning | ||||||
| 04 | Supporting ring left | SHADOW-LINE | 1 | 51167418813 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51167444266 | Shop at ECS Tuning | ||||||
| 04 | Supporting ring right | SHADOW-LINE | 1 | 51167418814 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51167444266 | Shop at ECS Tuning | ||||||
| 05 | Turn signal lamp ex.rearview mirror left | 1 | 51167414649 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 05 | Turn signal lamp ex.rearview mirror ri. | 1 | 51167414650 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51167444266 | Shop at ECS Tuning | ||||||
| 06 | Drive, outside Memory mirror | 2 | 67137337847 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 2 | 51167444266 | Shop at ECS Tuning | ||||||
| 07 | Set of mirror base caps | SHADOW-LINE | 1 | 51167444265 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51167444266 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 08 | Set of camera mounts for exterior mirror | 1 | 51167444264 | Shop at ECS Tuning | ||||||
| 09 | Set of screws | 1 | 51167444266 | Shop at ECS Tuning | ||||||
| 10 | Seal, outer left mirror triangle | 1 | 51167424729 | Shop at ECS Tuning | ||||||
| 10 | Seal, outer right mirror triangle | 1 | 51167424730 | Shop at ECS Tuning | ||||||
| 11 | Repair kit exterior rearview mirror | 1 | 51167460316 | Shop at ECS Tuning | ||||||
| 12 | Torx screw, self-threading | M6X17 | 6 | 07149231823 | Shop at ECS Tuning | |||||
| 13 | Repair kit cable exterior mirror | 1 | 61359853372 | Shop at ECS Tuning | ||||||
