M Trim, rear for BMW 4 Series F83 M4 LCI M4 (2020)

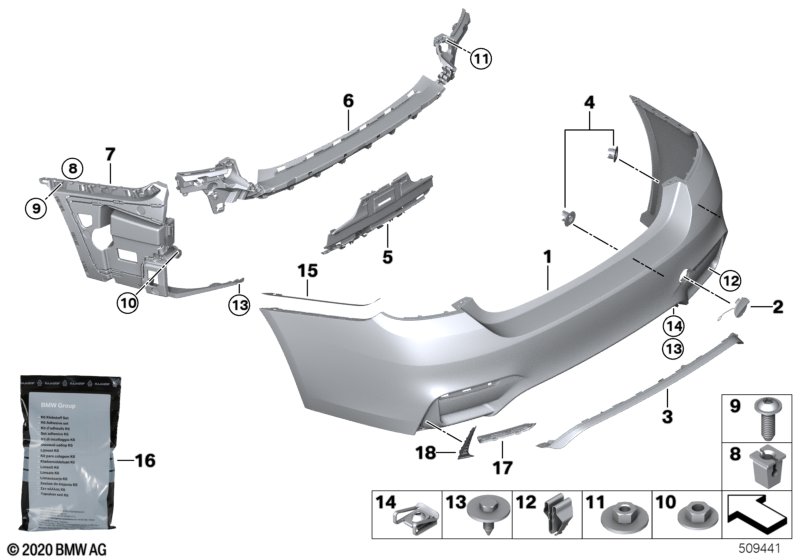

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 4 Series F83 M4 LCI M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel, primed, rear | M | 1 | 51128056223 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear or Park Distance Control (PDC) Important! Repair manual Document number Sws-anl-sws2012-011812874 as well as repair instructions for 'Punching holes in bumper.' |
S507A=Yes S508A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | M | 1 | 51128056223 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| -- | Set of mounts for PDC sensor, rear | M | 1 | 51128066309 | Shop at ECS Tuning | |||||
| 02 | Flap, towing eye, primed | M | 1 | 51128061606 | Shop at ECS Tuning | |||||
| 03 | Insert for bumper, primed, rear | M | 1 | 51128058758 | Shop at ECS Tuning | |||||
| 04 | Set of mounts for PDC sensor, rear | M | 1 | 51128066309 | Shop at ECS Tuning | |||||
| 05 | Reinforcement for bumper, rear lower | M | 1 | 51128054289 | Shop at ECS Tuning | |||||
| 06 | Guide, center rear | 1 | 51127316350 | Shop at ECS Tuning | ||||||
| 07 | Guide for bumper, side, left | 1 | 51128054287 | Shop at ECS Tuning | ||||||
| 07 | Guide for bumper, side, right | 1 | 51128054288 | Shop at ECS Tuning | ||||||
| 08 | Expanding nut | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | ST5X17-ZNS3 | X | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Hex nut with plate | M6 | 4 | 07147155614 | $0.91 | Shop at ECS Tuning | ||||
| 11 | Combination nut | 7 | 07147305178 | Shop at ECS Tuning | ||||||
| 12 | Clamp | 4 | 07147321144 | Shop at ECS Tuning | ||||||
| 13 | Hex bolt | TS5X17 SW8 D=22 | X | 07149126886 | Shop at ECS Tuning | |||||
| 14 | C-clip nut, self-locking | ST 4.8 -ZNS3 | X | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 15 | Left protection foil | 1 | 51128064447 | Shop at ECS Tuning | ||||||
| 15 | Right protection foil | 1 | 51128064448 | Shop at ECS Tuning | ||||||
| 16 | Adhesive set K6 | SET | 1 | 83195A547C4 | Shop at ECS Tuning | |||||
| 17 | Cover lateral left | 1 | 51128056585 | Shop at ECS Tuning | ||||||
| 17 | Cover lateral right | 1 | 51128056586 | Shop at ECS Tuning | ||||||
| 18 | Grid lateral left | 1 | 51128056587 | Shop at ECS Tuning | ||||||
| 18 | Grid lateral right | 1 | 51128056588 | Shop at ECS Tuning | ||||||
