Trim and seals for door, front for BMW MINI Clubman F54 Cooper (2019)

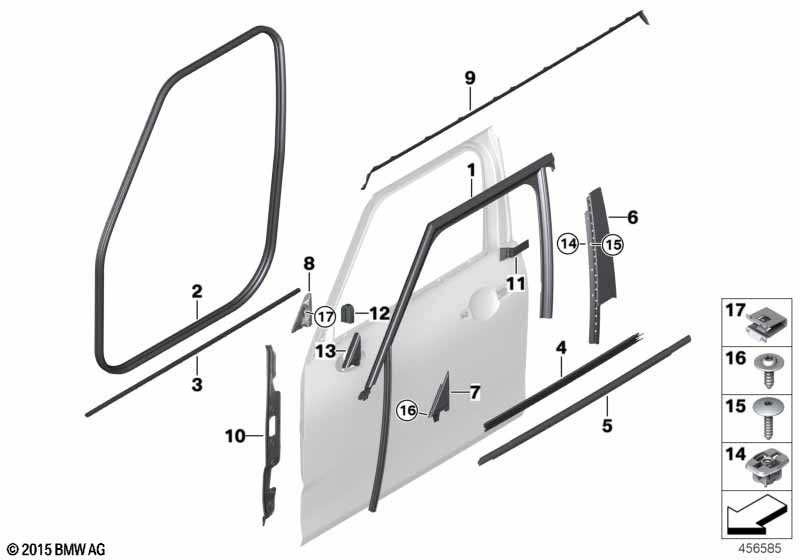

This Trim and seals for door, front technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window guide, left front door | 1 | 51337344163 | Shop at ECS Tuning | ||||||
| 01 | Window guide, right front door | 1 | 51337344164 | Shop at ECS Tuning | ||||||
| 02 | Edge protection, door, front | 2 | 51727344159 | Shop at ECS Tuning | ||||||
| 03 | Joint seal, door, front | 2 | 51767344155 | Shop at ECS Tuning | ||||||
| 04 | Channel sealing,inside,door, front left | 1 | 51337344167 | Shop at ECS Tuning | ||||||
| 04 | Channel sealing,inside,door, front right | 1 | 51337344168 | Shop at ECS Tuning | ||||||
| 05 | Duct cover, outer, door, front left | 1 | 51337473259 | Shop at ECS Tuning | ||||||
| 05 | Channel sealing,outside,door, front rght | 1 | 51337473260 | Shop at ECS Tuning | ||||||
| 06 | Cover, column B, door, front left | 1 | 51337344191 | Shop at ECS Tuning | ||||||
| 06 | Cover, column B, door, front right | 1 | 51337344192 | Shop at ECS Tuning | ||||||
| 07 | End cover, door, front left | 1 | 51137344187 | Shop at ECS Tuning | ||||||
| 07 | End cover, door, front right | 1 | 51137344188 | Shop at ECS Tuning | ||||||
| 08 | Corner moulding, interior left | 1 | 51337348831 | Shop at ECS Tuning | ||||||
| 08 | Corner moulding, interior right | 1 | 51337348832 | Shop at ECS Tuning | ||||||
| 09 | Cover strip, left | 1 | 51137344181 | Shop at ECS Tuning | ||||||
| 09 | Cover strip, right | 1 | 51137344182 | Shop at ECS Tuning | ||||||
| 10 | Seal, A-pillar, left | 1 | 51767344151 | Shop at ECS Tuning | ||||||
| 10 | Seal, A-pillar, right | 1 | 51767344152 | Shop at ECS Tuning | ||||||
| 11 | Sealing, B-column, bottom left | 1 | 51337368709 | Shop at ECS Tuning | ||||||
| 11 | Sealing, B-column, bottom right | 1 | 51337368710 | Shop at ECS Tuning | ||||||
| 12 | Foam rubber sound deadening | 2 | 51357410482 | Shop at ECS Tuning | ||||||
| 13 | Seal, corner molding, outer left | 1 | 51227344189 | Shop at ECS Tuning | ||||||
| 13 | Seal, corner molding, outer right | 1 | 51227344190 | Shop at ECS Tuning | ||||||
| 14 | Clip | 8 | 51337140714 | Shop at ECS Tuning | ||||||
| 15 | Fillister head screw | 8 | 07147374376 | Shop at ECS Tuning | ||||||
| 16 | Oval-head screw with washer | DELTA PT4X12 | 2 | 07149200941 | Shop at ECS Tuning | |||||
| 17 | Clip | 4 | 51437194187 | $1.98 | Shop at ECS Tuning |
