Aerokit, trim panel decor elements, rear for BMW MINI Clubman F54 Cooper (2019)

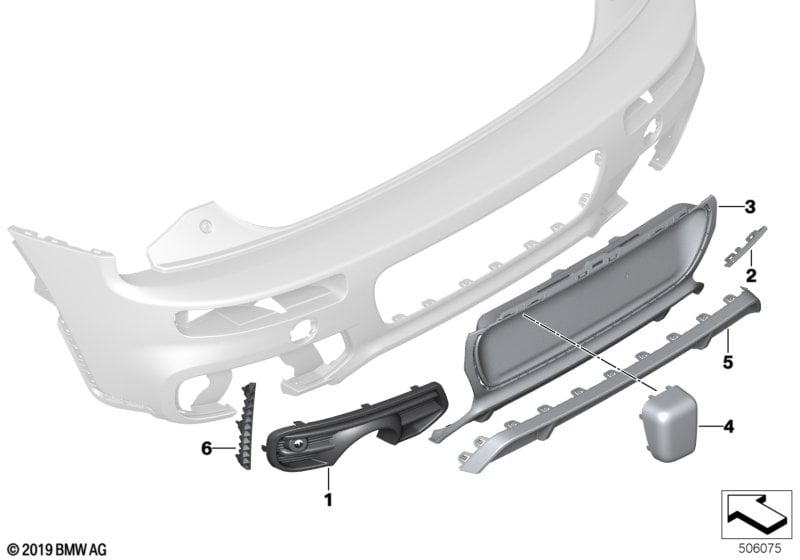

This Aerokit, trim panel decor elements, rear technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grill, bumper, rear left | JCW | 1 | 51127391023 | Shop at ECS Tuning | |||||
| 01 | Grill, bumper, rear right | JCW | 1 | 51127450118 | Shop at ECS Tuning | |||||
| 02 | Cover | JCW | 1 | 51127391030 | Shop at ECS Tuning | |||||
| For vehicles with JCW Aerodynamics kit |
S3A1A=Yes |
|||||||||
| 03 | Cover, bumper, rear | JCW | 1 | 51127379917 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with JCW Aerodynamics kit Important notice! Observe product information. Use "Only in conjunction with" parts. |
S3A1A=Yes |
|||||||||
| 03 | Cover, bumper, rear | JCW / PDC | 1 | 51127422886 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 1 | 66209283203 | Shop at ECS Tuning | ||||||
| -- | Kit dummy trim | GEN 5.7.X | 1 | 51125A3F538 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with JCW Aerodynamics kit and Reversing camera |
S3A1A=Yes S3AGA=Yes |
|||||||||
| 03 | Cover, bumper, rear | JCW / PDC | 1 | 51127422886 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 05 | Trim, nozzle, center lower | JCW | 1 | 51127955950 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 Cooper Aerokit, trim panel decor elements, rear?
- This technical diagram illustrates the Aerokit, trim panel decor elements, rear within the Vehicle trim group for the MINI Clubman F54 Cooper produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Grill, bumper, rear left (Part #51127391023).
- Which models use the hardware listed in this Aerokit, trim panel decor elements, rear?
- The hardware and components featured in the Aerokit, trim panel decor elements, rear are specific to the MINI Clubman F54 Cooper produced during 2019. These technical specifications ensure that parts like the Grill, bumper, rear left (51127391023) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Aerokit, trim panel decor elements, rear assembly?
- Each item in the Aerokit, trim panel decor elements, rear corresponds to the numbered list below the illustration. For the MINI Clubman F54 Cooper, you can identify the Grill, bumper, rear left by locating its position on the schematic, which then links to the official BMW part number 51127391023 for the Vehicle trim section.
