Storing partition for BMW 5 Series E34 540i (1995)

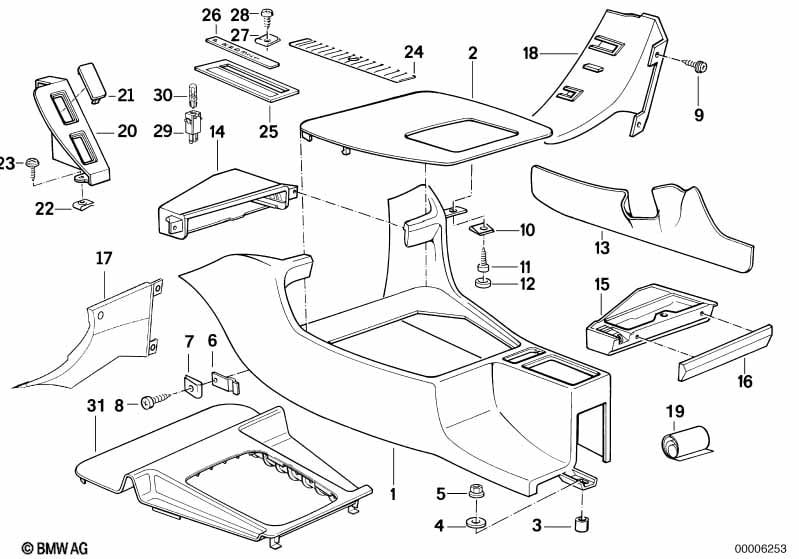

This Storing partition technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Microfilter and Air conditioning |
=Yes =Yes |
|||||||||
| 13 | Lateral trim panel right | ANTHRAZIT | 1 | 09/1990 | 51168138258 | ENDED | Shop at ECS Tuning | |||
| 13 | Lateral trim panel right | SILBERGRAU | 1 | 09/1990 | 51168138260 | ENDED | Shop at ECS Tuning | |||
| 13 | Lateral trim panel right | ULTRAMARIN | 1 | 09/1990 | 51168138262 | ENDED | Shop at ECS Tuning | |||
| 13 | Lateral trim panel right | PERGAMENT | 1 | 09/1990 | 51168138264 | ENDED | Shop at ECS Tuning | |||
| 13 | Lateral trim panel left | ANTHRAZIT | 1 | 09/1990 | 51168138277 | ENDED | Shop at ECS Tuning | |||
| 13 | Lateral trim panel left | SILBERGRAU | 1 | 09/1990 | 51168138279 | ENDED | Shop at ECS Tuning | |||
| 13 | Lateral trim panel left | ULTRAMARIN | 1 | 09/1990 | 51168138281 | ENDED | Shop at ECS Tuning | |||
| 13 | Lateral trim panel left | PERGAMENT | 1 | 09/1990 | 51168138283 | ENDED | Shop at ECS Tuning | |||
| 14 | Frame ashtray front | 1 | 51169061174 | Shop at ECS Tuning | ||||||
| For vehicles with Leather trim Buffalo and Wooden trim |
=Yes =Yes |
|||||||||
| 15 | Ashtray front | ANTHRAZIT | 1 | 51168126676 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather trim Bison and Wooden trim |
=Yes =Yes |
|||||||||
| 15 | Ashtray front | SCHWARZ | 1 | 51168137049 | ENDED | Shop at ECS Tuning | ||||
| 15 | Ashtray front | SILBERGRAU HELL | 1 | 51168137050 | ENDED | Shop at ECS Tuning | ||||
| 15 | Ashtray front | ULTRAMARIN | 1 | 51168137051 | ENDED | Shop at ECS Tuning | ||||
| 15 | Ashtray front | PERGAMENT | 1 | 51168137052 | ENDED | Shop at ECS Tuning | ||||
| 15 | Ashtray front | SILBERGRAU | 1 | 09/1991 | 51168148989 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering ashtray | SCHWARZ | 1 | 51161949527 | Shop at ECS Tuning | |||||
| 16 | Covering ashtray leather | SCHWARZ | 1 | 51161957010 | $66.24 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering ashtray | SILBERGRAU | 1 | 09/1990 | 51168138100 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering ashtray | ULTRAMARIN | 1 | 09/1990 | 51168138101 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering ashtray | PERGAMENT | 1 | 09/1990 | 51168138102 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering ashtray | SILBERGRAU HELL | 1 | 09/1990 | 51168138458 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering ashtray leather | SILBERGRAU HELL | 1 | 09/1990 | 51168145560 | $66.24 | Shop at ECS Tuning | |||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 16 | Covering ashtray leather | SCHWARZ | 1 | 51168148175 | ENDED | Shop at ECS Tuning | ||||
| 16 | Covering ashtray leather | SILBERGRAU HELL | 1 | 09/1990 | 51168148176 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering ashtray leather | ULTRAMARIN | 1 | 09/1990 | 51168148177 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering ashtray leather | PERGAMENT | 1 | 09/1990 | 51168148178 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering ashtray leather | SILBERGRAU | 1 | 09/1991 | 51168155620 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Wooden trim and Leather trim Buffalo |
=Yes =Yes |
|||||||||
| 16 | Covering ashtray leather | ANTHRAZIT | 1 | 51168145572 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Partial leather equipment and Wooden trim |
=Yes =Yes |
|||||||||
| 17 | Trim panel lower right | SILBERGRAU | 1 | 51452252366 | $51.34 | ENDED | Shop at ECS Tuning | |||
| 17 | Trim panel lower right | SCHWARZ | 1 | 51458137082 | $51.34 | ENDED | Shop at ECS Tuning | |||
| 17 | Trim panel lower right | SILBERGRAU HELL | 1 | 51458137084 | $51.34 | ENDED | Shop at ECS Tuning | |||
| 17 | Trim panel lower right | ULTRAMARIN | 1 | 51458137086 | $51.34 | ENDED | Shop at ECS Tuning | |||
| 17 | Trim panel lower right | PERGAMENT | 1 | 51458137088 | $56.68 | ENDED | Shop at ECS Tuning | |||
| 17 | Trim panel lower right | BRASIL | 1 | 51458137090 | $51.34 | ENDED | Shop at ECS Tuning | |||
| 17 | Trim panel lower right | KARMESINROT | 1 | 51458137092 | $51.34 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Bison and Wooden trim |
=Yes =Yes |
|||||||||
| 18 | Trim panel left | SCHWARZ | 1 | 51458137083 | ENDED | Shop at ECS Tuning | ||||
| 18 | Trim panel left | SILBERGRAU HELL | 1 | 51458137085 | ENDED | Shop at ECS Tuning | ||||
| 18 | Trim panel left | ULTRAMARIN | 1 | 51458137087 | ENDED | Shop at ECS Tuning | ||||
| 18 | Trim panel left | PERGAMENT | 1 | 51458137089 | ENDED | Shop at ECS Tuning | ||||
| 18 | Trim panel left | SILBERGRAU | 1 | 09/1991 | 51452252363 | ENDED | Shop at ECS Tuning | |||
| 19 | Floor covering | ANTHRAZIT`91 | X | 09/1990 | 51928124416 | $118.23 | ENDED | Shop at ECS Tuning | ||
| 19 | Floor covering | ULTRAMARIN | X | 09/1990 | 51928124418 | $107.69 | ENDED, +core | Shop at ECS Tuning | ||
| 19 | Floor covering | PERGAMENT | X | 09/1990 | 51928145529 | $141.73 | ENDED | Shop at ECS Tuning | ||
| 19 | Floor covering | SILBERGRAU | X | 09/1990 | 51928152793 | $154.98 | ENDED | Shop at ECS Tuning | ||
| 20 | Covering right | SCHWARZ | 1 | 51168181526 | ENDED | Shop at ECS Tuning | ||||
| 20 | Covering right | SILBERGRAU HELL | 1 | 09/1990 | 51168138312 | ENDED | Shop at ECS Tuning | |||
| 20 | Covering right | SILBERGRAU | 1 | 09/1990 | 51168138314 | ENDED | Shop at ECS Tuning | |||
| 20 | Covering right | ULTRAMARIN | 1 | 09/1990 | 51168138316 | ENDED | Shop at ECS Tuning | |||
| 20 | Covering right | PERGAMENT | 1 | 09/1990 | 51168138318 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim ONLY APPLIES TO ASC,EDC |
=Yes |
|||||||||
| 20 | Covering right | SCHWARZ | 1 | 51168137656 | ENDED | Shop at ECS Tuning | ||||
| 20 | Covering right | SILBER | 1 | 51168137658 | ENDED | Shop at ECS Tuning | ||||
| 20 | Covering right | ULTRAMARIN | 1 | 51168137660 | ENDED | Shop at ECS Tuning | ||||
| 20 | Covering right | PERGAMENT | 1 | 51168137662 | ENDED | Shop at ECS Tuning | ||||
| 20 | Covering right | BRASIL | 1 | 51168137664 | ENDED | Shop at ECS Tuning | ||||
| 20 | Covering right | KARMESINROT | 1 | 51168137666 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather trim ONLY APPLIES TO ASC/EDC/PDC |
=Yes |
|||||||||
| 20 | Covering right | SCHWARZ | 1 | 51168137636 | ENDED | Shop at ECS Tuning | ||||
| 20 | Covering right | SILBERGRAU HELL | 1 | 51168137638 | $88.44 | ENDED | Shop at ECS Tuning | |||
| 20 | Covering right | ULTRAMARIN | 1 | 51168137640 | ENDED | Shop at ECS Tuning | ||||
| 20 | Covering right | PERGAMENT | 1 | 51168137642 | ENDED | Shop at ECS Tuning | ||||
| 20 | Covering right | BRASIL | 1 | 51168137644 | ENDED | Shop at ECS Tuning | ||||
| 20 | Covering right | KARMESINROT | 1 | 51168137646 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather trim Buffalo ONLY APPLIES TO ASC,EDC |
=Yes |
|||||||||
| 20 | Covering right | ANTHRAZIT`91 | 1 | 51168137670 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Leather trim Buffalo ONLY APPLIES TO ASC/EDC/PDC |
=Yes |
|||||||||
| 20 | Covering right | ANTHRAZIT`91 | 1 | 51168137650 | ENDED | Shop at ECS Tuning | ||||
| 20 | Covering right | BRASIL | 1 | 51168137652 | ENDED | Shop at ECS Tuning | ||||
| 21 | Cover | SCHWARZ | X | 51161963979 | $1.54 | Shop at ECS Tuning | ||||
| 21 | Cover | SILBERGRAU HELL | X | 09/1990 | 51168141314 | $2.02 | Shop at ECS Tuning | |||
| 21 | Cover | SILBERGRAU | X | 09/1990 | 51168141316 | ENDED | Shop at ECS Tuning | |||
| 21 | Cover | ULTRAMARIN | X | 09/1990 | 51168141318 | ENDED | Shop at ECS Tuning | |||
| 21 | Cover | PERGAMENT | X | 09/1990 | 51168141320 | $2.02 | Shop at ECS Tuning | |||
| 23 | Fillister head self-tapping screw | ST4,2X19 | 2 | 51431874616 | $0.39 | Shop at ECS Tuning | ||||
| 24 | Sliding cover | 1 | 51161938352 | $3.92 | Shop at ECS Tuning | |||||
| 25 | Cover, gear selecting lever | 4HP22-EH | 1 | 51161938356 | ENDED | Shop at ECS Tuning | ||||
| 26 | 5-speed gear indicator cover | 1 | 51168115865 | $19.85 | Shop at ECS Tuning | |||||
| 28 | Fillister head self-tapping screw | B2,9X13 | 2 | 51211865837 | $5.55 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
