Door trim panel, front for BMW 5 Series E34 525i (1990)

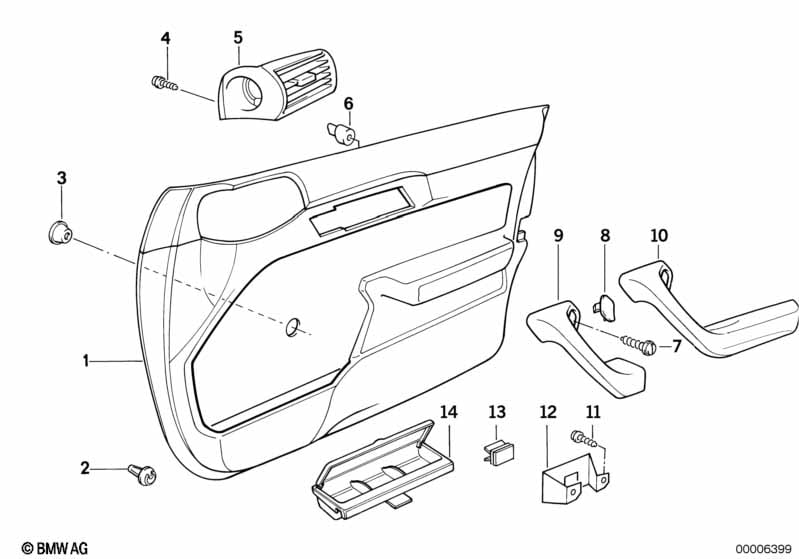

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan and Partial leather equipment and Smooth version |
L807A=Yes =Yes =Yes |
|||||||||
| 01 | Door lining vynil front left | 0203 SCHWARZ | 1 | 09/1990 | 05/1994 | 51418137455 | $773.14 | Shop at ECS Tuning | ||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Clip Natur | X | 12/1992 | 51411973500 | $0.24 | Shop at ECS Tuning | ||||
| 03 | Spacer | 2 | 51418107840 | $3.13 | Shop at ECS Tuning | |||||
| 04 | Torx-bolt for plastic material | 4X14 ZNT | 2 | 51419124467 | $0.28 | Shop at ECS Tuning | ||||
| 05 | Fresh air grille, left | 1 | 64221384087 | $54.43 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fresh air grille, right | 1 | 64221384088 | $54.43 | Shop at ECS Tuning | |||||
| 06 | Nut | 2 | 51411973949 | $0.56 | ENDED | Shop at ECS Tuning | ||||
| 07 | Fillister head screw | K50X25MM | 2 | 51169158228 | $0.81 | Shop at ECS Tuning | ||||
| 08 | Cover | SCHWARZ | 1 | 51411903734 | $1.62 | Shop at ECS Tuning | ||||
| 08 | Cover | KARMESINROT | 1 | 09/1989 | 51418112208 | ENDED | Shop at ECS Tuning | |||
| 09 | Handle left | SCHWARZ | 1 | 51411973539 | $65.25 | Shop at ECS Tuning | ||||
| 09 | Handle right | SCHWARZ | 1 | 51411973540 | $65.25 | Shop at ECS Tuning | ||||
| 09 | Handle left | KARMESINROT | 1 | 09/1989 | 51418102225 | $87.89 | ENDED | Shop at ECS Tuning | ||
| 09 | Handle right | KARMESINROT | 1 | 09/1989 | 51418102226 | $87.89 | ENDED | Shop at ECS Tuning | ||
| 11 | Fillister head self-tapping screw | ST4,8X19 | 2 | 07119907790 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Reinforcement left | 1 | 51421978757 | $1.43 | Shop at ECS Tuning | |||||
| 12 | Reinforcement right | 1 | 51421978758 | $1.43 | Shop at ECS Tuning | |||||
| 13 | Clamp | 2 | 51411944663 | $1.00 | Shop at ECS Tuning | |||||
| 14 | Cointray | SCHWARZ | 1 | 51418110033 | $36.85 | Shop at ECS Tuning | ||||
| 14 | Cointray | KARMESINROT | 1 | 09/1989 | 51418110038 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
