Door trim, rear for BMW 5 Series E34 525ix (1995)

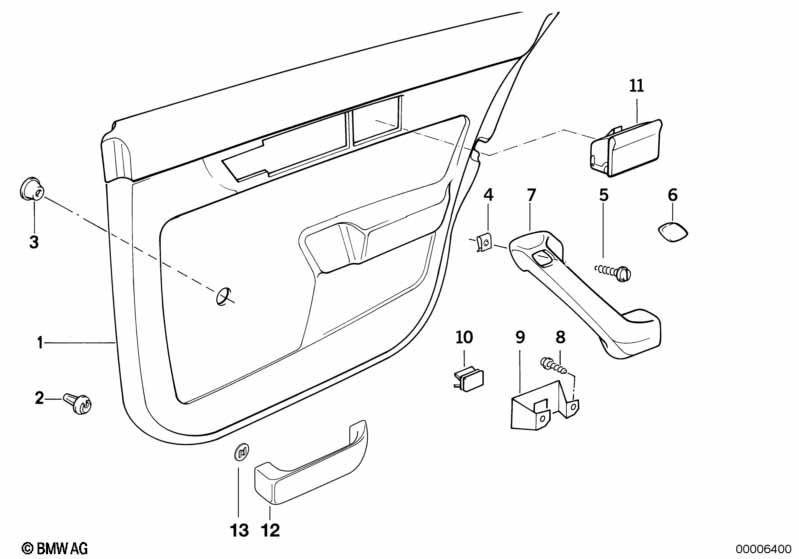

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Door lining cloth rear left | SILBERGRAU | 1 | 09/1990 | 51428126953 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | SILBERGRAU | 1 | 09/1990 | 51428126954 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | ULTRAMARIN | 1 | 09/1990 | 51428126955 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | ULTRAMARIN | 1 | 09/1990 | 51428126956 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | ANTHRAZIT 91 | 1 | 09/1990 | 51428137483 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | ANTHRAZIT 91 | 1 | 09/1990 | 51428137484 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | PERGAMENT 92 | 1 | 09/1990 | 51428163069 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | PERGAMENT 92 | 1 | 09/1990 | 51428163070 | $427.43 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 01 | Door lining cloth rear left | 0406/411 ANTHR. | 1 | 09/1992 | 51428155917 | $427.43 | Shop at ECS Tuning | |||
| also fits "Executive" from 01/94 on!!! | ||||||||||
| 01 | Door lining cloth rear right | 0406/411 ANTHR. | 1 | 09/1992 | 51428155918 | $427.43 | Shop at ECS Tuning | |||
| also fits "Executive" from 01/94 on!!! | ||||||||||
| 01 | Door lining cloth rear left | 0407/412SILBGR. | 1 | 09/1992 | 51428155919 | $427.43 | ENDED | Shop at ECS Tuning | ||
| also fits "Executive" from 01/94 on!!! | ||||||||||
| 01 | Door lining cloth rear right | 0407/412SILBGR. | 1 | 09/1992 | 51428155920 | $427.43 | ENDED | Shop at ECS Tuning | ||
| also fits "Executive" from 01/94 on!!! | ||||||||||
| 01 | Door lining cloth rear left | 0408/413 ULTRAM | 1 | 09/1992 | 51428155921 | $427.43 | ENDED | Shop at ECS Tuning | ||
| also fits "Executive" from 01/94 on!!! | ||||||||||
| 01 | Door lining cloth rear right | 0408/413 ULTRAM | 1 | 09/1992 | 51428155922 | $427.43 | ENDED | Shop at ECS Tuning | ||
| also fits "Executive" from 01/94 on!!! | ||||||||||
| 01 | Door lining cloth rear left | 0409/414 PERGAM | 1 | 09/1992 | 51428155923 | $673.81 | ENDED | Shop at ECS Tuning | ||
| also fits "Executive" from 01/94 on!!! | ||||||||||
| 01 | Door lining cloth rear right | 0409/414 PERGAM | 1 | 09/1992 | 51428155924 | $427.43 | ENDED | Shop at ECS Tuning | ||
| also fits "Executive" from 01/94 on!!! | ||||||||||
| For vehicles with Roller sun shield |
=Yes |
|||||||||
| 01 | Door lining cloth rear left | SILBERGRAU | 1 | 09/1990 | 51428137229 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | SILBERGRAU | 1 | 09/1990 | 51428137230 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear left | ULTRAMARIN | 1 | 09/1990 | 51428137231 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | ULTRAMARIN | 1 | 09/1990 | 51428137232 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | ANTHRAZIT 91 | 1 | 09/1990 | 51428137495 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | ANTHRAZIT 91 | 1 | 09/1990 | 51428137496 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | PERGAMENT 92 | 1 | 01/1992 | 51428163075 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | PERGAMENT 92 | 1 | 01/1992 | 51428163076 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Gathered leather trim, Bison |
=Yes |
|||||||||
| 01 | Door lining leather rear left | 0203 SCHWARZ | 1 | 05/1994 | 51428200089 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0203 SCHWARZ | 1 | 05/1994 | 51428200090 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0483 SILBERGRAU | 1 | 05/1994 | 51428200091 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0483 SILBERGRAU | 1 | 05/1994 | 51428200092 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0394 SI.GR.HELL | 1 | 05/1994 | 51428200093 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0394 SI.GR.HELL | 1 | 05/1994 | 51428200094 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0395 ULTRAMARIN | 1 | 05/1994 | 51428200095 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0395 ULTRAMARIN | 1 | 05/1994 | 51428200096 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0396 PERGAMENT | 1 | 05/1994 | 51428202699 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0396 PERGAMENT | 1 | 05/1994 | 51428202700 | $483.23 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Leather trim Buffalo |
=Yes |
|||||||||
| 01 | Door lining leather rear left | 0180 ANTHRAZIT | 1 | 09/1990 | 51428126941 | $1256.60 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0180 ANTHRAZIT | 1 | 09/1990 | 51428126942 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Door railing schwarz |
=Yes |
|||||||||
| 01 | Door lining cloth rear left | 0407/0412 SI.GR | 1 | 09/1992 | 51428166851 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | 0407/0412 SI.GR | 1 | 09/1992 | 51428166852 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear left | 0409/0414 PERG. | 1 | 09/1992 | 51428166853 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | 0409/0414 PERG. | 1 | 09/1992 | 51428166854 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Buffalo and Wooden trim |
=Yes =Yes |
|||||||||
| 01 | Door lining leather rear left | 0180 ANTHRAZIT | 1 | 51428155979 | ENDED | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | 0180 ANTHRAZIT | 1 | 51428155980 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Roller sun shield and Gathered leather trim, Bison |
=Yes =Yes |
|||||||||
| 01 | Door lining leather rear left | 0203 SCHWARZ | 1 | 05/1994 | 51428203049 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0203 SCHWARZ | 1 | 05/1994 | 51428203050 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0483 SILBERGRAU | 1 | 05/1994 | 51428203051 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0483 SILBERGRAU | 1 | 05/1994 | 51428203052 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203053 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203054 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0395 ULTRAMARIN | 1 | 05/1994 | 51428203055 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0395 ULTRAMARIN | 1 | 05/1994 | 51428203056 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0396 PERGAMENT | 1 | 05/1994 | 51428203057 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0396 PERGAMENT | 1 | 05/1994 | 51428203058 | $483.23 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Wooden trim and Roller sun shield |
=Yes =Yes |
|||||||||
| 01 | Door lining cloth rear left | 0406/411 ANTHRA | 1 | 09/1992 | 51428155961 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | 0406/411 ANTHRA | 1 | 09/1992 | 51428155962 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | 0407/412 SILBGR | 1 | 09/1992 | 51428155963 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | 0407/412 SILBGR | 1 | 09/1992 | 51428155964 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | 0408/413 ULTRAM | 1 | 09/1992 | 51428155965 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | 0408/413 ULTRAM | 1 | 09/1992 | 51428155966 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | 0409/414 PERGAM | 1 | 09/1992 | 51428155967 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | 0409/414 PERGAM | 1 | 09/1992 | 51428155968 | $427.43 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Door railing schwarz and Gathered leather trim, Bison |
=Yes =Yes |
|||||||||
| 01 | Door lining leather rear left | 0483 SILBERGRAU | 1 | 05/1994 | 51428203007 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | 0483 SILBERGRAU | 1 | 05/1994 | 51428203008 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear left | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203009 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203010 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Buffalo and Roller sun shield |
=Yes =Yes |
|||||||||
| 01 | Door lining leather rear left | 0180 ANTHRAZIT | 1 | 09/1990 | 51428137245 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | 0180 ANTHRAZIT | 1 | 09/1990 | 51428137246 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Wooden trim and Gathered leather trim, Bison |
=Yes =Yes |
|||||||||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 05/1994 | 51428200187 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 05/1994 | 51428200188 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | SILBERGR.HELL | 1 | 05/1994 | 51428200189 | $1045.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | SILBERGR.HELL | 1 | 05/1994 | 51428200190 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | SILBERGRAU | 1 | 05/1994 | 51428200191 | $1045.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | SILBERGRAU | 1 | 05/1994 | 51428200192 | $1045.25 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | ULTRAMARIN | 1 | 05/1994 | 51428200193 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | ULTRAMARIN | 1 | 05/1994 | 51428200194 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | PERGAMENT | 1 | 05/1994 | 51428200196 | $1045.25 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Door railing schwarz and Wooden trim |
=Yes =Yes |
|||||||||
| 01 | Door lining cloth rear left | 0407/0412 SI.GR | 1 | 09/1992 | 51428166879 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | 0407/0412 SI.GR | 1 | 09/1992 | 51428166880 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear left | 0409/0414 PERG. | 1 | 09/1992 | 51428166881 | $427.43 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining cloth rear right | 0409/0414 PERG. | 1 | 09/1992 | 51428166882 | $427.43 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sport package M technic and Executive equipment |
=Yes =Yes |
|||||||||
| 01 | Door lining cloth rear left | 0617 GRAU | 1 | 01/1994 | 51422261453 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | 0617 GRAU | 1 | 01/1994 | 51422261454 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Door railing schwarz and Roller sun shield |
=Yes =Yes |
|||||||||
| 01 | Door lining cloth rear left | 0407/0412 SI.GR | 1 | 09/1992 | 51428166921 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | 0407/0412 SI.GR | 1 | 09/1992 | 51428166922 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear left | 0409/0414 PE 92 | 1 | 09/1992 | 51428166923 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | 0409/0414 PE 92 | 1 | 09/1992 | 51428166924 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Door railing schwarz and Wooden trim and Gathered leather trim, Bison |
=Yes =Yes =Yes |
|||||||||
| 01 | Door lining leather rear left | 0483 SILBERGRAU | 1 | 05/1994 | 51428203079 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | 0483 SILBERGRAU | 1 | 05/1994 | 51428203080 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear left | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203081 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203082 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim Buffalo and Wooden trim and Roller sun shield |
=Yes =Yes =Yes |
|||||||||
| 01 | Door lining leather rear left | 0180 ANTHRAZIT | 1 | 51428155983 | $483.23 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | 0180 ANTHRAZIT | 1 | 51428155984 | $483.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Wooden trim and Roller sun shield and Gathered leather trim, Bison |
=Yes =Yes =Yes |
|||||||||
| 01 | Door lining leather rear left | 0203 SCHWARZ | 1 | 05/1994 | 51428203151 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0203 SCHWARZ | 1 | 05/1994 | 51428203152 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0483 SILBERGRAU | 1 | 05/1994 | 51428203153 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0483 SILBERGRAU | 1 | 05/1994 | 51428203154 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203155 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203156 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0395 ULTRAMARIN | 1 | 05/1994 | 51428203157 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0395 ULTRAMARIN | 1 | 05/1994 | 51428203158 | $483.23 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear left | 0396 PERGAMENT | 1 | 05/1994 | 51428203159 | $1155.40 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | 0396 PERGAMENT | 1 | 05/1994 | 51428203160 | $483.23 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sport package M technic and Executive equipment and Roller sun shield |
=Yes =Yes =Yes |
|||||||||
| 01 | Door lining cloth rear left | 0617 GRAU | 1 | 01/1994 | 51422262817 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | 0617 GRAU | 1 | 01/1994 | 51422262818 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Door railing schwarz and Wooden trim and Roller sun shield |
=Yes =Yes =Yes |
|||||||||
| 01 | Door lining cloth rear left | 0407/0412 SI.GR | 1 | 09/1992 | 51428166963 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | 0407/0412 SI.GR | 1 | 09/1992 | 51428166964 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear left | 0409/0414 PERGA | 1 | 09/1992 | 51428166965 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | 0409/0414 PERGA | 1 | 09/1992 | 51428166966 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Door railing schwarz and Roller sun shield and Gathered leather trim, Bison |
=Yes =Yes =Yes |
|||||||||
| 01 | Door lining leather rear left | 0483 SILBERGRAU | 1 | 05/1994 | 51428203175 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | 0483 SILBERGRAU | 1 | 05/1994 | 51428203176 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear left | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203177 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203178 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Door railing schwarz and Wooden trim and Roller sun shield and Gathered leather trim, Bison |
=Yes =Yes =Yes =Yes |
|||||||||
| 01 | Door lining leather rear left | 0483 SILBERGRAU | 1 | 05/1994 | 51428203241 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | 0483 SILBERGRAU | 1 | 05/1994 | 51428203242 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear left | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203243 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | 0394 SI.GR.HELL | 1 | 05/1994 | 51428203244 | ENDED | Shop at ECS Tuning | |||
| 03 | Spacer | 2 | 51418107840 | $3.13 | Shop at ECS Tuning | |||||
| 04 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST4,8X45 | 2 | 07119906771 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Covering upper left | SCHWARZ | 1 | 51421973607 | $1.46 | Shop at ECS Tuning | ||||
| 06 | Covering upper right | SCHWARZ | 1 | 51421973608 | $1.46 | Shop at ECS Tuning | ||||
| 06 | Covering upper left | KARMESINROT | 1 | 09/1989 | 51428102265 | $1.95 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering upper right | KARMESINROT | 1 | 09/1989 | 51428102266 | $1.95 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering upper left | SILBERGRAU | 1 | 09/1990 | 51428137249 | $1.46 | Shop at ECS Tuning | |||
| 06 | Covering upper right | SILBERGRAU | 1 | 09/1990 | 51428137250 | $1.46 | Shop at ECS Tuning | |||
| 06 | Covering upper left | ULTRAMARIN | 1 | 09/1990 | 51428137251 | $1.46 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering upper right | ULTRAMARIN | 1 | 09/1990 | 51428137252 | $1.46 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering upper left | PERGAMENT | 1 | 09/1990 | 51428137253 | $1.46 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering upper right | PERGAMENT | 1 | 09/1990 | 51428137254 | $1.46 | Shop at ECS Tuning | |||
| 06 | Covering upper left | SILBERGRAU HELL | 1 | 09/1990 | 51428138811 | $1.46 | Shop at ECS Tuning | |||
| 06 | Covering upper right | SILBERGRAU HELL | 1 | 09/1990 | 51428138812 | $1.46 | Shop at ECS Tuning | |||
| 07 | Handle left | SCHWARZ | 1 | 51421973595 | $47.98 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Handle right | SCHWARZ | 1 | 51421973596 | $42.69 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Handle left | KARMESINROT | 1 | 09/1989 | 51428102263 | $64.73 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle right | KARMESINROT | 1 | 09/1989 | 51428102264 | $64.73 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle left | SILBERGRAU | 1 | 09/1990 | 51428126961 | $47.98 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle right | SILBERGRAU | 1 | 09/1990 | 51428126962 | $47.98 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle left | ULTRAMARIN | 1 | 09/1990 | 51428126963 | $42.69 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle right | ULTRAMARIN | 1 | 09/1990 | 51428126964 | $42.69 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle left | PERGAMENT | 1 | 09/1990 | 51428126965 | $47.98 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle right | PERGAMENT | 1 | 09/1990 | 51428126966 | $47.98 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle left | SILBERGRAU HELL | 1 | 09/1990 | 51428138769 | $42.69 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle right | SILBERGRAU HELL | 1 | 09/1990 | 51428138770 | $42.69 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle left | 0486/487 SI.GR. | 1 | 09/1991 | 51428155639 | $237.71 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle right | 0486/487 SI.GR. | 1 | 09/1991 | 51428155640 | $237.71 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 07 | Handle left | SCHWARZ | 1 | 09/1992 | 51428149467 | $62.22 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle right | SCHWARZ | 1 | 09/1992 | 51428149468 | $62.22 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle left | SILBERGRAU HELL | 1 | 09/1992 | 51428149469 | $62.22 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle right | SILBERGRAU HELL | 1 | 09/1992 | 51428149470 | $62.22 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle left | SILBERGRAU | 1 | 09/1992 | 51428149471 | $62.22 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle right | SILBERGRAU | 1 | 09/1992 | 51428149472 | $62.22 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle left | ULTRAMARIN | 1 | 09/1992 | 51428149473 | $62.22 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle right | ULTRAMARIN | 1 | 09/1992 | 51428149474 | $62.22 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle left | PERGAMENT | 1 | 09/1992 | 51428149475 | $62.22 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle right | PERGAMENT | 1 | 09/1992 | 51428149476 | $84.12 | ENDED, +core | Shop at ECS Tuning | ||
| 08 | Fillister head self-tapping screw | ST4,8X19 | 8 | 07119907790 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Reinforcement left | 1 | 51421978769 | $1.43 | Shop at ECS Tuning | |||||
| 09 | Reinforcement right | 1 | 51421978770 | $1.43 | Shop at ECS Tuning | |||||
| 10 | Clamp | 4 | 51411944663 | $1.00 | Shop at ECS Tuning | |||||
| 11 | Ashtray | 2 | 06/1991 | 51168137396 | $37.92 | Shop at ECS Tuning | ||||
| 12 | Left oddments tray | ANTHRAZIT | 1 | 51422267213 | ENDED | Shop at ECS Tuning | ||||
| 12 | Right oddments tray | ANTHRAZIT | 1 | 51422267214 | ENDED | Shop at ECS Tuning | ||||
| 12 | Left oddments tray | SILBERGRAU | 1 | 51422267215 | ENDED | Shop at ECS Tuning | ||||
| 12 | Right oddments tray | SILBERGRAU | 1 | 51422267216 | ENDED | Shop at ECS Tuning | ||||
| 12 | Left oddments tray | SILBERGRAU HELL | 1 | 51422267217 | ENDED | Shop at ECS Tuning | ||||
| 12 | Right oddments tray | SILBERGRAU HELL | 1 | 51422267218 | ENDED | Shop at ECS Tuning | ||||
| 12 | Right oddments tray | PERGAMENT | 1 | 51422267220 | ENDED | Shop at ECS Tuning | ||||
| 13 | Body nut | 5MM | 4 | 51418108117 | $0.23 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525ix Door trim, rear?
- This technical diagram illustrates the Door trim, rear within the Vehicle trim group for the 5 Series E34 525ix produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Door lining cloth rear left (Part #51428126953).
- Which models use the hardware listed in this Door trim, rear?
- The hardware and components featured in the Door trim, rear are specific to the 5 Series E34 525ix produced during 1995. These technical specifications ensure that parts like the Door lining cloth rear left (51428126953) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim, rear assembly?
- Each item in the Door trim, rear corresponds to the numbered list below the illustration. For the 5 Series E34 525ix, you can identify the Door lining cloth rear left by locating its position on the schematic, which then links to the official BMW part number 51428126953 for the Vehicle trim section.
