Sun blind, rear window shelf for BMW 3 Series E36 318is (1996)

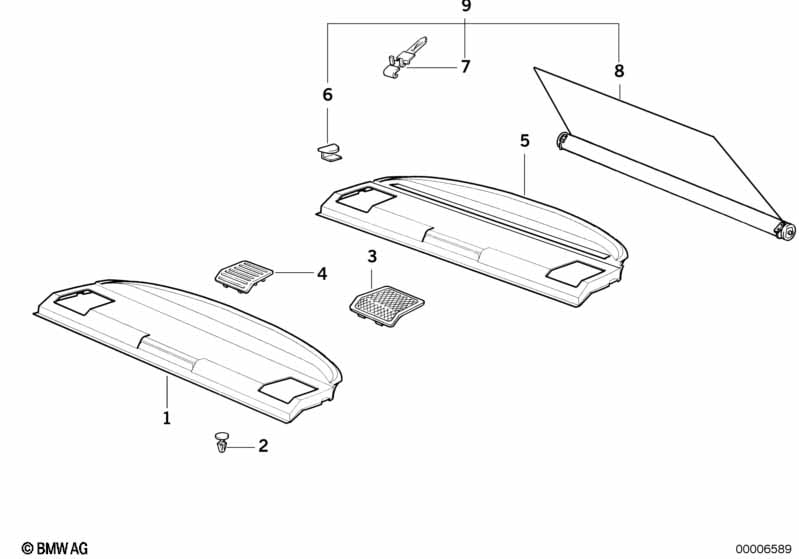

This Sun blind, rear window shelf technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear window shelf | ANTHRAZIT 93 | 1 | 09/1993 | 51468183639 | $119.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | GRAU | 1 | 09/1993 | 51468183640 | $119.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | BEIGE | 1 | 09/1993 | 51468183641 | $105.74 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | BLAUVIOLETT | 1 | 09/1993 | 51468183642 | $119.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | ROT | 1 | 09/1993 | 51468183643 | $105.74 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | TUERKIS | 1 | 09/1993 | 51468183644 | $105.74 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | SAFRANGELB | 1 | 09/1993 | 51468183645 | $105.74 | ENDED | Shop at ECS Tuning | ||
| For vehicles with 3rd stoplamp |
=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT 93 | 1 | 51468183702 | $119.54 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | GRAU | 1 | 51468183703 | $119.54 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | BEIGE | 1 | 51468183704 | $119.54 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | BLAUVIOLETT | 1 | 51468183705 | $105.74 | Shop at ECS Tuning | ||||
| 01 | Rear window shelf | ROT | 1 | 51468183706 | $105.74 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | TUERKIS | 1 | 51468183707 | $105.74 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear window shelf | SAFRANGELB | 1 | 51468183708 | $105.74 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Rear window shelf | ANTHRAZIT 93 | 1 | 09/1993 | 51468183702 | $119.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | GRAU | 1 | 09/1993 | 51468183703 | $119.54 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | BEIGE | 1 | 09/1993 | 51468183704 | $119.54 | Shop at ECS Tuning | |||
| 01 | Rear window shelf | BLAUVIOLETT | 1 | 09/1993 | 51468183705 | $105.74 | Shop at ECS Tuning | |||
| 01 | Rear window shelf | ROT | 1 | 09/1993 | 51468183706 | $105.74 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | TUERKIS | 1 | 09/1993 | 51468183707 | $105.74 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear window shelf | SAFRANGELB | 1 | 09/1993 | 51468183708 | $105.74 | ENDED | Shop at ECS Tuning | ||
| 02 | Clamp | 4 | 51468110359 | $0.74 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clip, black | 4 | 52201964201 | $0.38 | Shop at ECS Tuning | |||||
| 03 | Cover loudspeaker right | ANTHRAZIT 93 | 1 | 51468174978 | $16.06 | Shop at ECS Tuning | ||||
| 03 | Cover loudspeaker left | ANTHRAZIT 93 | 1 | 09/1993 | 51468174977 | $16.06 | Shop at ECS Tuning | |||
| 03 | Cover loudspeaker left | GRAU | 1 | 09/1993 | 51468174979 | $16.06 | Shop at ECS Tuning | |||
| 03 | Cover loudspeaker right | GRAU | 1 | 09/1993 | 51468174980 | $16.06 | Shop at ECS Tuning | |||
| 03 | Cover loudspeaker left | BEIGE | 1 | 09/1993 | 51468174981 | $16.06 | Shop at ECS Tuning | |||
| 03 | Cover loudspeaker right | BEIGE | 1 | 09/1993 | 51468174982 | $16.06 | Shop at ECS Tuning | |||
| 03 | Cover loudspeaker left | TUERKIS | 1 | 09/1993 | 51468174983 | $16.74 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover loudspeaker right | TUERKIS | 1 | 09/1993 | 51468174984 | $16.74 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover loudspeaker left | BLAUVIOLETT | 1 | 09/1993 | 51468174985 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover loudspeaker right | BLAUVIOLETT | 1 | 09/1993 | 51468174986 | $16.74 | Shop at ECS Tuning | |||
| 03 | Cover loudspeaker left | SAFRANGELB | 1 | 09/1993 | 51468174987 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover loudspeaker right | SAFRANGELB | 1 | 09/1993 | 51468174988 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover loudspeaker left | ROT | 1 | 09/1993 | 51468174989 | $16.06 | ENDED | Shop at ECS Tuning | ||
| 03 | Cover loudspeaker right | ROT | 1 | 09/1993 | 51468174990 | $16.06 | ENDED | Shop at ECS Tuning | ||
| For vehicles with 3rd stoplamp |
=Yes |
|||||||||
| 04 | Grid | SCHWARZ | 1 | 51468117215 | $3.43 | Shop at ECS Tuning | ||||
| 04 | Grid | GRAU | 1 | 51468173236 | $3.43 | Shop at ECS Tuning | ||||
| 04 | Grid | BEIGE | 1 | 51468173244 | $3.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Grid | TUERKIS | 1 | 51468173261 | $4.72 | ENDED | Shop at ECS Tuning | |||
| 04 | Grid | BLAUVIOLETT | 1 | 51468173273 | $4.72 | ENDED | Shop at ECS Tuning | |||
| 04 | Grid | SAFRANGELB | 1 | 51468173279 | $4.72 | ENDED | Shop at ECS Tuning | |||
| 04 | Grid | ROT | 1 | 51468173285 | $3.43 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 04 | Grid | GRAU | 1 | 09/1993 | 51468173236 | $3.43 | Shop at ECS Tuning | |||
| 04 | Grid | BEIGE | 1 | 09/1993 | 51468173244 | $3.43 | ENDED | Shop at ECS Tuning | ||
| 04 | Grid | TUERKIS | 1 | 09/1993 | 51468173261 | $4.72 | ENDED | Shop at ECS Tuning | ||
| 04 | Grid | BLAUVIOLETT | 1 | 09/1993 | 51468173273 | $4.72 | ENDED | Shop at ECS Tuning | ||
| 04 | Grid | SAFRANGELB | 1 | 09/1993 | 51468173279 | $4.72 | ENDED | Shop at ECS Tuning | ||
| 04 | Grid | ROT | 1 | 09/1993 | 51468173285 | $3.43 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Roller sun shield |
=Yes |
|||||||||
| 05 | Rear window shelf | ANTHRAZIT 93 | 1 | 51468183639 | $119.54 | ENDED | Shop at ECS Tuning | |||
| 05 | Rear window shelf | BEIGE | 1 | 09/1993 | 51468183641 | $105.74 | ENDED | Shop at ECS Tuning | ||
| 05 | Rear window shelf | BLAUVIOLETT | 1 | 09/1993 | 51468183698 | ENDED | Shop at ECS Tuning | |||
| 05 | Rear window shelf | KLASSISCHROT | 1 | 09/1993 | 51468183699 | ENDED | Shop at ECS Tuning | |||
| 05 | Rear window shelf | TUERKIS | 1 | 09/1993 | 51468183700 | ENDED | Shop at ECS Tuning | |||
| 05 | Rear window shelf | SAFRANGELB | 1 | 09/1993 | 51468183701 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia and Roller sun shield |
L810A=Yes =Yes |
|||||||||
| 05 | Rear window shelf | ANTHRAZIT 93 | 1 | 09/1993 | 51468183702 | $119.54 | ENDED | Shop at ECS Tuning | ||
| 05 | Rear window shelf | GRAU | 1 | 09/1993 | 51468183703 | $119.54 | ENDED | Shop at ECS Tuning | ||
| 05 | Rear window shelf | BEIGE | 1 | 09/1993 | 51468183704 | $119.54 | Shop at ECS Tuning | |||
| 05 | Rear window shelf | BLAUVIOLETT | 1 | 09/1993 | 51468183705 | $105.74 | Shop at ECS Tuning | |||
| 05 | Rear window shelf | ROT | 1 | 09/1993 | 51468183706 | $105.74 | ENDED | Shop at ECS Tuning | ||
| 05 | Rear window shelf | TUERKIS | 1 | 09/1993 | 51468183714 | $105.74 | ENDED | Shop at ECS Tuning | ||
| 05 | Rear window shelf | SAFRANGELB | 1 | 09/1993 | 51468183715 | $105.74 | ENDED | Shop at ECS Tuning | ||
| For vehicles with 3rd stoplamp and Roller sun shield |
=Yes =Yes |
|||||||||
| 05 | Rear window shelf | ANTHRAZIT 93 | 1 | 51468183702 | $119.54 | ENDED | Shop at ECS Tuning | |||
| 05 | Rear window shelf | GRAU | 1 | 51468183703 | $119.54 | ENDED | Shop at ECS Tuning | |||
| 05 | Rear window shelf | BEIGE | 1 | 51468183704 | $119.54 | Shop at ECS Tuning | ||||
| 05 | Rear window shelf | BLAUVIOLETT | 1 | 51468183705 | $105.74 | Shop at ECS Tuning | ||||
| 05 | Rear window shelf | ROT | 1 | 51468183706 | $105.74 | ENDED | Shop at ECS Tuning | |||
| 05 | Rear window shelf | TUERKIS | 1 | 51468183714 | $105.74 | ENDED | Shop at ECS Tuning | |||
| 05 | Rear window shelf | SAFRANGELB | 1 | 51468183715 | $105.74 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover | 2 | 51161977262 | $1.16 | Shop at ECS Tuning | |||||
| 07 | Hook left | 1 | 51161977027 | $7.18 | Shop at ECS Tuning | |||||
| 07 | Hook right | 1 | 51161977028 | $7.18 | ENDED | Shop at ECS Tuning | ||||
| 08 | Roller sun shield | 1 | 51468130825 | $212.56 | ENDED | Shop at ECS Tuning | ||||
| 09 | Retrofit kit, sun blind, manual | 1 | 51169410520 | $177.95 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH REAR WINDOW SHELF |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
