Trim panel dashboard for BMW 3 Series E36 325tds (1998)

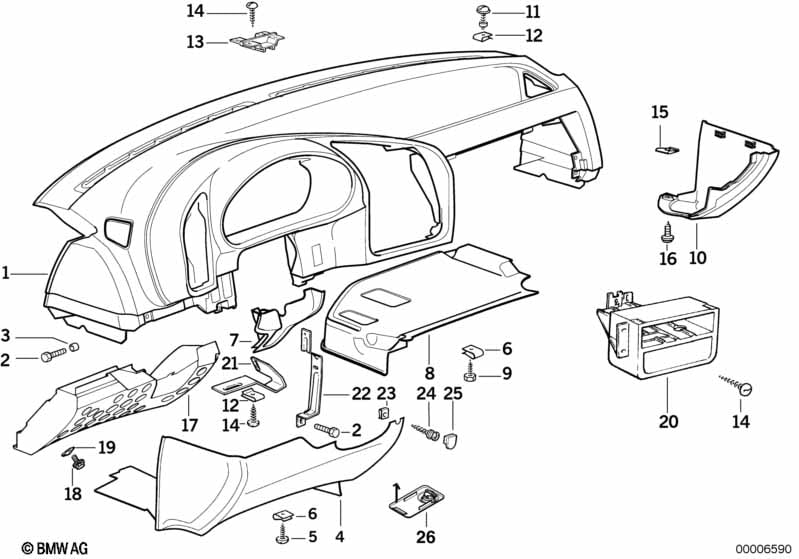

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel dashboard | SCHWARZ | 1 | 51458167473 | $1302.39 | ENDED | Shop at ECS Tuning | |||
| 01 | Trim panel dashboard | GRAU | 1 | 09/1993 | 51458177787 | $1166.22 | ENDED | Shop at ECS Tuning | ||
| 01 | Trim panel dashboard | BEIGE | 1 | 09/1993 | 51458177788 | $1166.22 | ENDED | Shop at ECS Tuning | ||
| 02 | Hex bolt | M8X16-8.8-ZNS3 | 4 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Spacer bush | 4 | 51458130493 | $4.74 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 04 | Trim panel lower left | SCHWARZ | 1 | 51458167299 | $122.67 | Shop at ECS Tuning | ||||
| 04 | Trim panel lower left | GRAU | 1 | 09/1993 | 51458177803 | $122.67 | Shop at ECS Tuning | |||
| 04 | Trim panel lower left | BEIGE | 1 | 09/1993 | 51458177805 | $122.67 | Shop at ECS Tuning | |||
| For vehicles with All leather equipment Walknappa |
=Yes |
|||||||||
| 04 | Trim panel lower left | 0318/638/639 SW | 1 | 51452257877 | $294.62 | Shop at ECS Tuning | ||||
| 04 | Trim panel lower left | L7TT GRAU | 1 | 51452264843 | ENDED | Shop at ECS Tuning | ||||
| 04 | Trim panel lower left | L7SN BEIGE | 1 | 51452264845 | ENDED | Shop at ECS Tuning | ||||
| 05 | Sheet metal screw | ST4,2X19-U2-C-H | X | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 06 | C-clip nut | X | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 07 | Covering steering column | BEIGE | 1 | 51458187283 | $8.70 | Shop at ECS Tuning | ||||
| 07 | Covering steering column | SCHWARZ | 1 | 01/1996 | 51458187279 | $8.80 | Shop at ECS Tuning | |||
| 07 | Covering steering column | GRAU | 1 | 01/1996 | 51458187281 | $8.59 | Shop at ECS Tuning | |||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 08 | Trim panel lower right | SCHWARZ | 1 | 51451977100 | $36.95 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning ONLY APPLIES TO CO-DRIVERS SIDE |
=Yes |
|||||||||
| 08 | Trim panel lower right | SCHWARZ | 1 | 51458135398 | $36.95 | ENDED | Shop at ECS Tuning | |||
| 09 | Sheet metal screw | ST4,2X19-U2-C-H | X | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Trim panel right | SCHWARZ | 1 | 51458167502 | $122.67 | +core | Shop at ECS Tuning | |||
| 10 | Trim panel right | GRAU | 1 | 09/1993 | 51458177824 | $122.67 | ENDED, +core | Shop at ECS Tuning | ||
| 10 | Trim panel right | BEIGE | 1 | 09/1993 | 51458177826 | $122.67 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather equipment Walknappa |
=Yes |
|||||||||
| 10 | Trim panel right | L7SW SCHWARZ | 1 | 51452257880 | $155.12 | Shop at ECS Tuning | ||||
| 10 | Trim panel right | L7TT GRAU | 1 | 51452264576 | ENDED | Shop at ECS Tuning | ||||
| 10 | Trim panel right | L7SN BEIGE | 1 | 51452264578 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex head screw with washer | ST4,2X15MM | 2 | 51458119870 | $0.94 | Shop at ECS Tuning | ||||
| 12 | Body nut | ST4,2-1-ZNS3 | X | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Fillister head self-tapping screw | ST4,2X16-Z2 | X | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Body nut | ST4,2-2 | 1 | 07129904245 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Sheet metal screw | ST4,2X13 | 1 | 51161948970 | $0.33 | ENDED | Shop at ECS Tuning | |||
| 20 | Frame | 1 | 64221387093 | $5.93 | ENDED | Shop at ECS Tuning | ||||
| 21 | Bracket left | 1 | 51458151865 | $1.77 | Shop at ECS Tuning | |||||
| 21 | Bracket right | 1 | 51458151866 | $1.77 | Shop at ECS Tuning | |||||
| 22 | Holder | 1 | 51168144025 | $3.15 | ENDED | Shop at ECS Tuning | ||||
| 23 | Body nut | ST4,2-2ZNS | 1 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 24 | Sheet metal screw | ST4,2X29 | 1 | 51419174273 | Shop at ECS Tuning | |||||
| 25 | Cap | SCHWARZ | 1 | 51161949793 | $0.42 | Shop at ECS Tuning | ||||
| 25 | Cap | GRAU | 1 | 51168194787 | $0.44 | Shop at ECS Tuning | ||||
| 25 | Cap | BEIGE 2 | 1 | 51168398920 | $0.35 | ENDED | Shop at ECS Tuning | |||
| 25 | Cap | SCHWARZ | 1 | 51458177853 | $0.49 | Shop at ECS Tuning | ||||
| 25 | Cap | GRAU | 1 | 09/1993 | 51458177857 | $0.49 | Shop at ECS Tuning | |||
| 25 | Cap | BEIGE | 1 | 09/1993 | 51458177858 | $0.49 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
