Exterior trim / grill for BMW MINI Clubman F54 Cooper (2019)

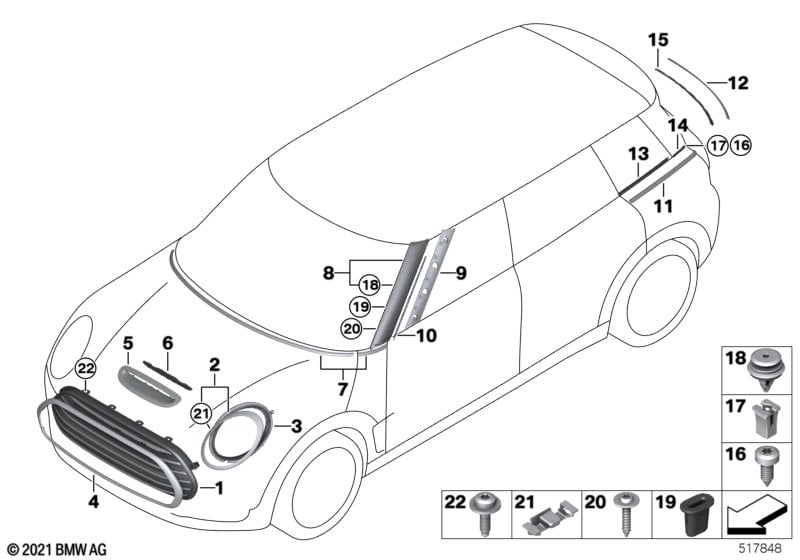

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Chrome Line exterieur |
S346A=No |
|||||||||
| 01 | Decorative grill hood | 1 | 51132704846 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 01 | Decorative grill hood | CHROM | 1 | 51132704848 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trim ring, headlight, left | CHROM | 1 | 51137351371 | Shop at ECS Tuning | |||||
| 02 | Trim ring, headlight, right | CHROM | 1 | 51137351372 | Shop at ECS Tuning | |||||
| 03 | Gasket, headlight, left | 1 | 51767391409 | Shop at ECS Tuning | ||||||
| 03 | Gasket, headlight, right | 1 | 51767391410 | Shop at ECS Tuning | ||||||
| 04 | Frame for grill | CHROME | 1 | 51137351369 | Shop at ECS Tuning | |||||
| 07 | Hood trim strip and side panel | 1 | 51137444535 | Shop at ECS Tuning | ||||||
| 08 | Left column A cover | 1 | 51137344183 | Shop at ECS Tuning | ||||||
| 08 | Right column A cover | 1 | 51137344184 | Shop at ECS Tuning | ||||||
| 09 | Seal, A-pillar, left | 1 | 51137344185 | Shop at ECS Tuning | ||||||
| 09 | Seal, A-pillar, right | 1 | 51137344186 | Shop at ECS Tuning | ||||||
| 10 | Cover, column A, left | 1 | 51137420059 | Shop at ECS Tuning | ||||||
| 10 | Cover, column A, right | 1 | 51137420060 | Shop at ECS Tuning | ||||||
| 11 | Molding, side panel, rear left | 1 | 51357491331 | Shop at ECS Tuning | ||||||
| 11 | Molding, side panel, rear right | 1 | 51357491332 | Shop at ECS Tuning | ||||||
| 12 | Trim strip, split door, left | 1 | 51137473263 | Shop at ECS Tuning | ||||||
| 12 | Trim strip, split door, right | 1 | 51137473264 | Shop at ECS Tuning | ||||||
| 13 | Mount rail, trim strip, side panel left | 1 | 51377491333 | Shop at ECS Tuning | ||||||
| 13 | Mount rail, trim strip, side panel right | 1 | 51377491334 | Shop at ECS Tuning | ||||||
| 14 | Support.strip for trim strip rear left | 1 | 51377402889 | Shop at ECS Tuning | ||||||
| 14 | Mount rail, trim strip, rear right | 1 | 51377402890 | Shop at ECS Tuning | ||||||
| 15 | Mount rail, trim strip, trunk lid, left | 1 | 51137344211 | Shop at ECS Tuning | ||||||
| 15 | Mount rail, trim strip, trunk lid, right | 1 | 51137344212 | Shop at ECS Tuning | ||||||
| 16 | Sheet metal screw | ST4,8X13 | 2 | 07119905823 | $0.11 | Shop at ECS Tuning | ||||
| 17 | Expanding nut | 2 | 07146974274 | $3.75 | Shop at ECS Tuning | |||||
| 18 | Clip with washer, natur | WEIß | 8 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| 19 | Grommet | 8 | 51137127001 | $0.85 | Shop at ECS Tuning | |||||
| 20 | Oval-head screw with washer | DELTA PT4X12 | 8 | 07149200941 | Shop at ECS Tuning | |||||
| 21 | Clip | 12 | 51132752145 | $0.75 | Shop at ECS Tuning | |||||
| 22 | Countersunk screw | M6X20-PCU2-10.9 | 4 | 07119908698 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
