Center console cubbies for BMW 3 Series E36 318i (1996)

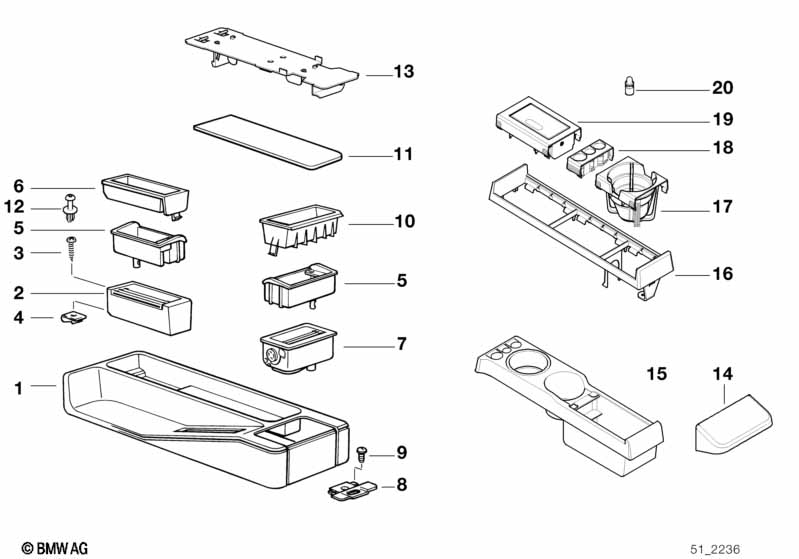

This Center console cubbies technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Console | SCHWARZ | 1 | 51168162669 | $162.89 | Shop at ECS Tuning | ||||
| 01 | Console | BEIGE | 1 | 09/1993 | 51168162673 | $162.89 | Shop at ECS Tuning | |||
| 01 | Console | GRAU | 1 | 09/1993 | 51168162674 | $162.89 | ENDED | Shop at ECS Tuning | ||
| For vehicles with All leather equipment Walknappa |
=Yes |
|||||||||
| 01 | Console | 0318/638/639 SW | 1 | 51162251902 | $447.67 | ENDED | Shop at ECS Tuning | |||
| 02 | Ashtray box | 1 | 51168144796 | $27.07 | Shop at ECS Tuning | |||||
| 02 | Ashtray box | CHROM | 1 | 51168399920 | $35.49 | Shop at ECS Tuning | ||||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 02 | Chromium-plated birchwood front ashtray | ANTHRAZIT 0690 | 1 | 51162423548 | $197.53 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Wooden trim SA 773 and Luxus equipment/SA772 |
=Yes =Yes |
|||||||||
| 02 | Ashtray front | NUSSBAUM-WURZEL | 1 | 09/1996 | 51162261140 | $236.59 | Shop at ECS Tuning | |||
| 03 | Fillister head self-tapping screw | ST4,2X13-Z2 | X | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 04 | C-clip nut | X | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 05 | Ashtray insert | 1 | 51168144795 | $28.87 | Shop at ECS Tuning | |||||
| 05 | Ashtray insert | CHROM | 1 | 51168398474 | $28.87 | Shop at ECS Tuning | ||||
| 06 | Wooden frame, birchwood | ANTHRAZIT 0690 | 1 | 51162426081 | $86.93 | ENDED | Shop at ECS Tuning | |||
| 06 | Wooden frame | NUSSBAUM | 1 | 51162494169 | $86.93 | +core | Shop at ECS Tuning | |||
| 06 | Wooden frame | EIBE CLUB | 1 | 51162494190 | $91.79 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Storing partition front | 1 | 51168119624 | $10.95 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 06 | Cup | 1 | 51162494166 | $10.03 | ENDED | Shop at ECS Tuning | ||||
| 07 | Ashtray box | CHROM | 1 | 51162491515 | $33.83 | +core | Shop at ECS Tuning | |||
| 07 | Ashtray box | 1 | 51168144797 | $25.23 | Shop at ECS Tuning | |||||
| For vehicles with Wooden trim SA 773 |
=Yes |
|||||||||
| 07 | Ashtray rear | NUSSBAUM-WURZEL | 1 | 09/1996 | 51162261141 | $223.20 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 07 | Chromium-plated birchwood rear ashtray | ANTHRAZIT 0690 | 1 | 51162423549 | $224.39 | Shop at ECS Tuning | ||||
| 08 | Support | 1 | 51161977339 | $2.00 | Shop at ECS Tuning | |||||
| 09 | Hex head screw with washer | ST4,2X15MM | 1 | 51458119870 | $0.94 | Shop at ECS Tuning | ||||
| 10 | Wooden frame | NUSSBAUM | 1 | 51162494167 | $82.93 | ENDED | Shop at ECS Tuning | |||
| 10 | Storing partition rear | 1 | 51168119626 | $12.27 | Shop at ECS Tuning | |||||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 10 | Cup | 1 | 51162494166 | $10.03 | ENDED | Shop at ECS Tuning | ||||
| 12 | Expanding rivet | 6 | 51168197908 | $0.37 | Shop at ECS Tuning | |||||
| Controller Area Network (Bus) | ||||||||||
| 15 | Cup holder | 1 | 51168205367 | ENDED | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CUP HOLDER |
||||||||||
| 16 | Frame | 1 | 51168217479 | $21.28 | Shop at ECS Tuning | |||||
| 17 | Cup holder | 2 | 51168217480 | $16.09 | Shop at ECS Tuning | |||||
| 18 | Coinbox | 1 | 51168217481 | $27.46 | Shop at ECS Tuning | |||||
| 19 | Ashtray | SCHWARZ/CHROM | 1 | 51162492159 | $34.70 | Shop at ECS Tuning | ||||
| 19 | Ashtray | SCHWARZ | 1 | 51168217482 | $34.70 | Shop at ECS Tuning | ||||
| 19 | Tray, console attachment | 1 | 82279407927 | $29.25 | ENDED | Shop at ECS Tuning | ||||
| 20 | Bulb socket with bulb | 1 | 61138353797 | $7.12 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
