Armrest front for BMW 3 Series E36 318is (1998)

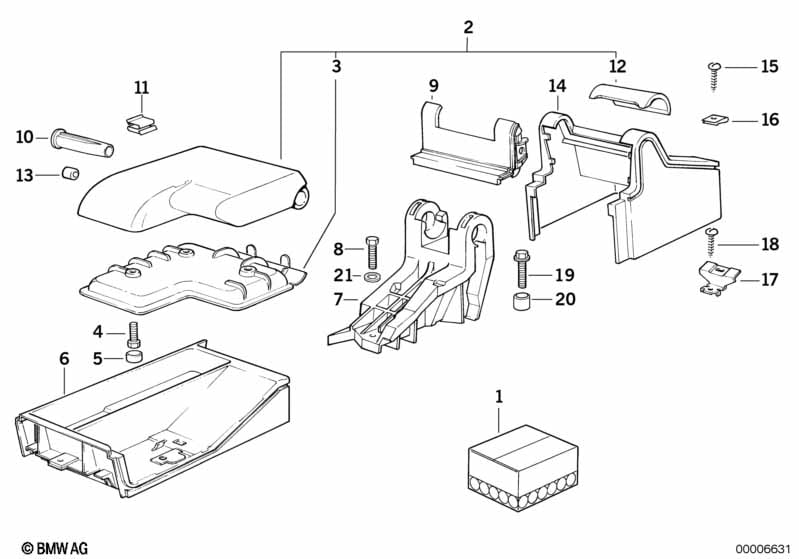

This Armrest front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dkl.grau B4tt/C3tt/C4tt/D6tt/D8tt; | ||||||||||
| 02 | Armrest vinyl | SCHWARZ | 1 | 01/1994 | 51168151037 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest cloth | 0547 GRAU | 1 | 01/1994 | 51168190506 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest vinyl | DUNKELGRAU | 1 | 01/1994 | 51168204483 | $78.12 | ENDED | Shop at ECS Tuning | ||
| 02 | Armrest vinyl | DUNKELBEIGE | 1 | 01/1994 | 51168204484 | $78.12 | ENDED | Shop at ECS Tuning | ||
| LEATHER VERSION MONTANA | ||||||||||
| 02 | Armrest leather | HELLGRAU | 1 | 01/1994 | 51168173269 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | SCHWARZ | 1 | 01/1994 | 51168173274 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 02 | Armrest leather | BEIGE | 1 | 01/1994 | 51168173275 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | DUNKELGRAU | 1 | 01/1995 | 51168204489 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | DUNKELBEIGE | 1 | 01/1995 | 51168204490 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | TANINROT | 1 | 03/1997 | 51168233396 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | PASTELLGRÜN | 1 | 03/1997 | 51168233398 | ENDED | Shop at ECS Tuning | |||
| For vehicles with All leather equipment Walknappa |
=Yes |
|||||||||
| 02 | Armrest leather | N5/L7SW SCHWARZ | 1 | 51162257406 | ENDED | Shop at ECS Tuning | ||||
| 02 | Armrest leather | 0462 LOTOSWEISS | 1 | 51162258231 | ENDED | Shop at ECS Tuning | ||||
| 03 | Center armrest trim panel | 1 | 51168122514 | ENDED | Shop at ECS Tuning | |||||
| 04 | Screw for thermoplastic plastics | P-TS3X10-ZN | 3 | 07129925827 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Plug | 3 | 51168228760 | $0.30 | Shop at ECS Tuning | |||||
| 06 | Bottom part of console | SCHWARZ | 1 | 01/1994 | 51168167833 | $141.73 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Bottom part of console | GRAU | 1 | 01/1994 | 51168190485 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Bottom part of console | BEIGE | 1 | 01/1994 | 51168190486 | ENDED | Shop at ECS Tuning | |||
| For vehicles with All leather equipment Walknappa |
=Yes |
|||||||||
| 06 | Bottom part of console | L7TH HELLGRAU | 1 | 51162255460 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bottom part of console | SCHWARZ | 1 | 01/1994 | 51162255456 | ENDED | Shop at ECS Tuning | |||
| 06 | Bottom part of console | LOTOSWEISS | 1 | 01/1994 | 51162255486 | ENDED | Shop at ECS Tuning | |||
| 07 | Console carrier | 1 | 51168132486 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M8X30 | 2 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Console cover | SCHWARZ | 1 | 01/1994 | 51168167845 | $63.00 | ENDED, +core | Shop at ECS Tuning | ||
| 09 | Console cover | BEIGE | 1 | 01/1994 | 51168167849 | $63.00 | +core | Shop at ECS Tuning | ||
| 09 | Console cover | GRAU | 1 | 01/1994 | 51168167850 | $63.00 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather equipment Walknappa |
=Yes |
|||||||||
| 09 | Console cover | 0318/638/639 SW | 1 | 01/1994 | 51162262336 | $114.95 | Shop at ECS Tuning | |||
| 09 | Console cover | 0462 LOTOSWEISS | 1 | 01/1994 | 51162262341 | $114.95 | ENDED | Shop at ECS Tuning | ||
| 10 | Bush | 2 | 51168135595 | $2.11 | Shop at ECS Tuning | |||||
| 11 | Clamp | 2 | 07149143792 | $0.57 | Shop at ECS Tuning | |||||
| 12 | Center armrest cover | SCHWARZ | 1 | 01/1994 | 51168167852 | $58.84 | ENDED, +core | Shop at ECS Tuning | ||
| 12 | Center armrest cover | BEIGE | 1 | 01/1994 | 51168167856 | $58.84 | ENDED, +core | Shop at ECS Tuning | ||
| 12 | Center armrest cover | GRAU | 1 | 01/1994 | 51168167857 | $58.84 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather equipment Walknappa |
=Yes |
|||||||||
| 12 | Center armrest cover | 0318/638/639 SW | 1 | 01/1994 | 51162262348 | $81.44 | ENDED | Shop at ECS Tuning | ||
| 12 | Center armrest cover | 0462 LOTOSWEISS | 1 | 01/1994 | 51162262353 | $101.84 | ENDED | Shop at ECS Tuning | ||
| 13 | Ring | 2 | 51168135597 | $1.02 | Shop at ECS Tuning | |||||
| 14 | Console upper | SCHWARZ | 1 | 01/1994 | 51168167838 | $114.89 | ENDED, +core | Shop at ECS Tuning | ||
| 14 | Console upper | BEIGE | 1 | 01/1994 | 51168167842 | $119.32 | +core | Shop at ECS Tuning | ||
| 14 | Console upper | GRAU | 1 | 01/1994 | 51168167843 | $119.32 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with All leather equipment Walknappa |
=Yes |
|||||||||
| 14 | Console upper | 0318/638/639 SW | 1 | 01/1994 | 51162255493 | $376.09 | Shop at ECS Tuning | |||
| 14 | Console upper | 0462 LOTOSWEISS | 1 | 01/1994 | 51162262272 | $407.34 | ENDED | Shop at ECS Tuning | ||
| 15 | Fillister head self-tapping screw | ST4,2X13-Z2 | 1 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 16 | C-clip nut | 1 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 17 | Support | 1 | 51161977339 | $2.00 | Shop at ECS Tuning | |||||
| 18 | Hex head screw with washer | ST4,2X15MM | 1 | 51458119870 | $0.94 | Shop at ECS Tuning | ||||
| 19 | Hex bolt | M8X30-Z1-10.9 | 1 | 07119904137 | $0.89 | Shop at ECS Tuning | ||||
| 20 | Bush | 3 | 51168119656 | $0.56 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
