Door trim panel, front for BMW 3 Series E36 318i (1999)

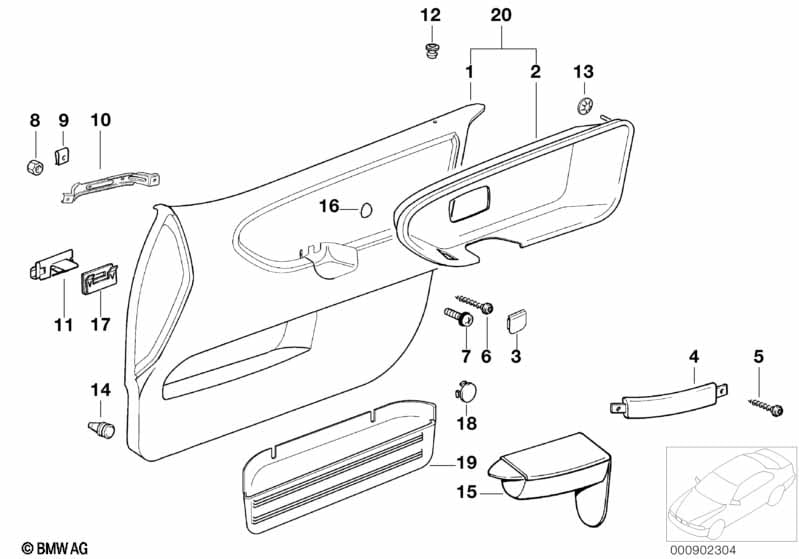

This Door trim panel, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Left door trim panel insert | E7TT GRAU-ANTHR | 1 | 51418254713 | $140.62 | ENDED | Shop at ECS Tuning | |||
| 06 | Fillister head self-tapping screw | ISA ST4.2X13 | 2 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Torx-bolt for plastic material | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Door trim panel, front?
- This technical diagram illustrates the Door trim panel, front within the Vehicle trim group for the 3 Series E36 318i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Left door trim panel insert (Part #51418254713).
- Which models use the hardware listed in this Door trim panel, front?
- The hardware and components featured in the Door trim panel, front are specific to the 3 Series E36 318i produced during 1999. These technical specifications ensure that parts like the Left door trim panel insert (51418254713) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel, front assembly?
- Each item in the Door trim panel, front corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Left door trim panel insert by locating its position on the schematic, which then links to the official BMW part number 51418254713 for the Vehicle trim section.
