Reinforcement, body for BMW 7 Series G11 740dX (2019)

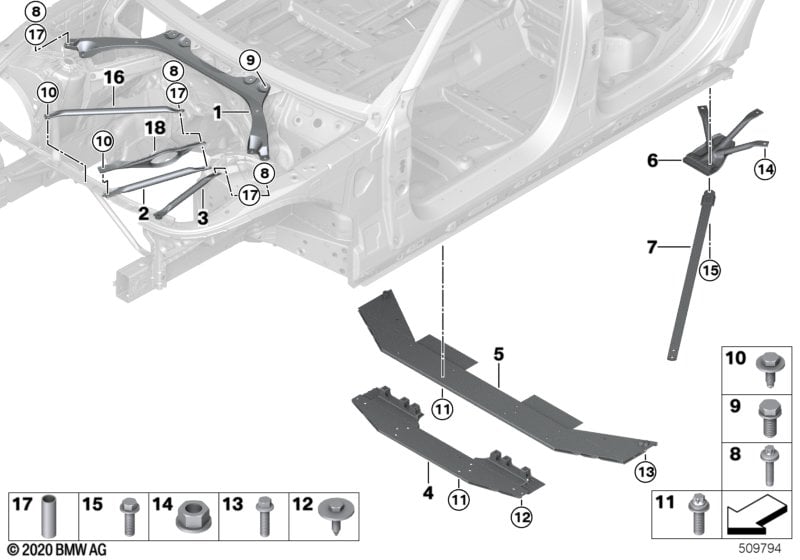

This Reinforcement, body technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Please observe: The mounting elements have to be replaced when loosened |
||||||||||
| 01 | Strut brace, bulkhead | 1 | 51617453800 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Countersunk head screw with washer | M10X45 | 4 | 51716966566 | Shop at ECS Tuning | |||||
| 02 | Strut tower brace, left | 1 | 51617408385 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Countersunk head screw with washer | M10X45 | 1 | 51716966566 | Shop at ECS Tuning | |||||
| 02 | Strut tower brace, right | 1 | 51617408386 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Countersunk head screw with washer | M10X45 | 1 | 51716966566 | Shop at ECS Tuning | |||||
| 04 | Connecting member, rear tunnel | 1 | 03/2017 | 51717334421 | Shop at ECS Tuning | |||||
| 08 | Countersunk head screw with washer | M10X45 | 6 | 51716966566 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M10X25-10.9ZNS3 | 4 | 07119905147 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X30 10.9 ZNS3 | 2 | 07119907857 | Shop at ECS Tuning | |||||
| 11 | Torx bolt | M8X25 8.8 ZNS3 | 8 | 07119908535 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | TS5X20 SW8 D=22 | 2 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Threaded plug | M10X30 | 8 | 07129909659 | Shop at ECS Tuning | |||||
